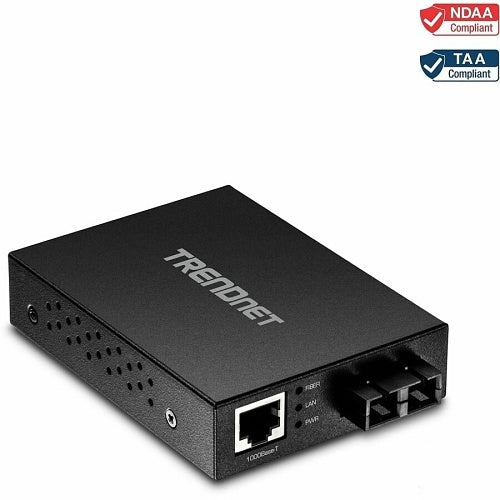

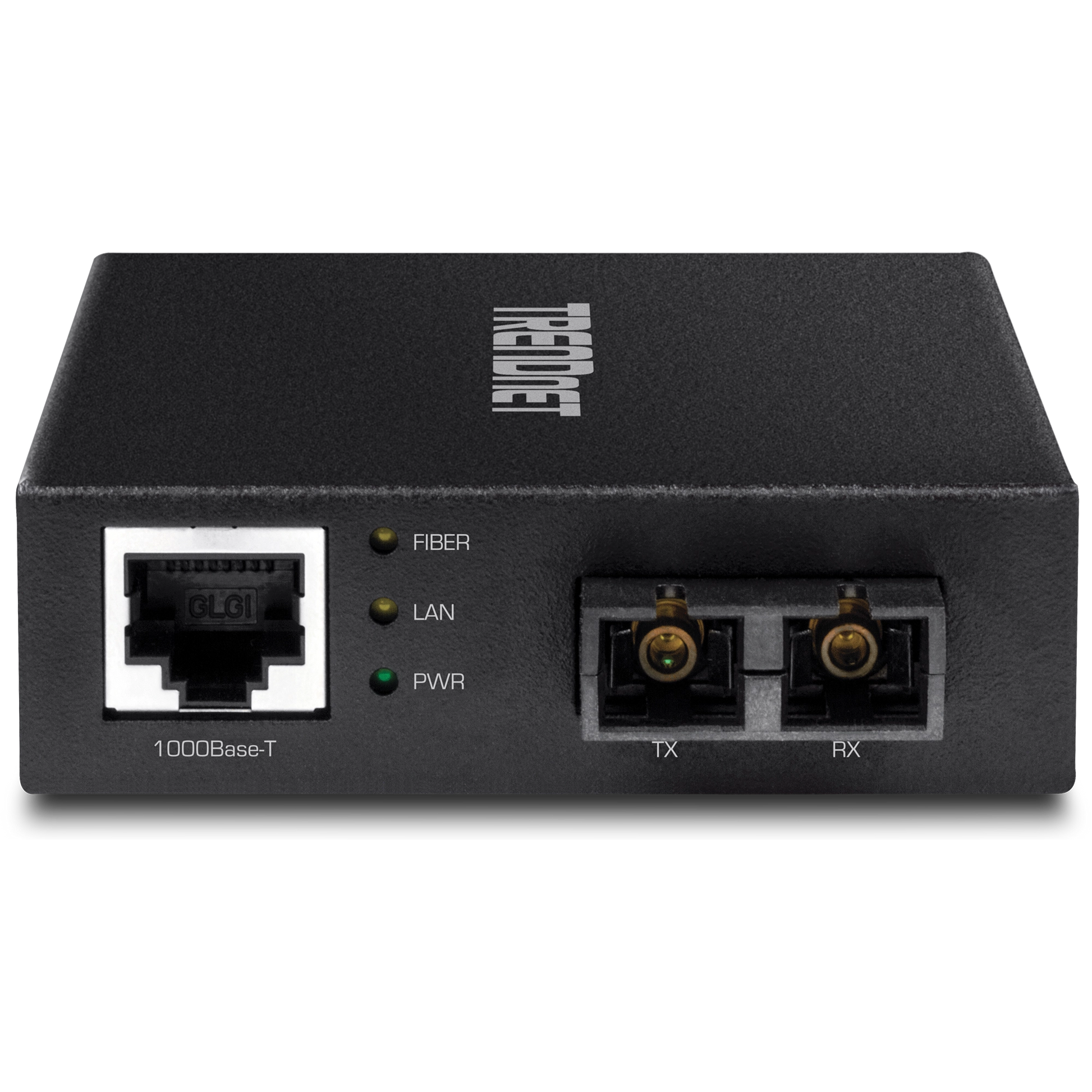

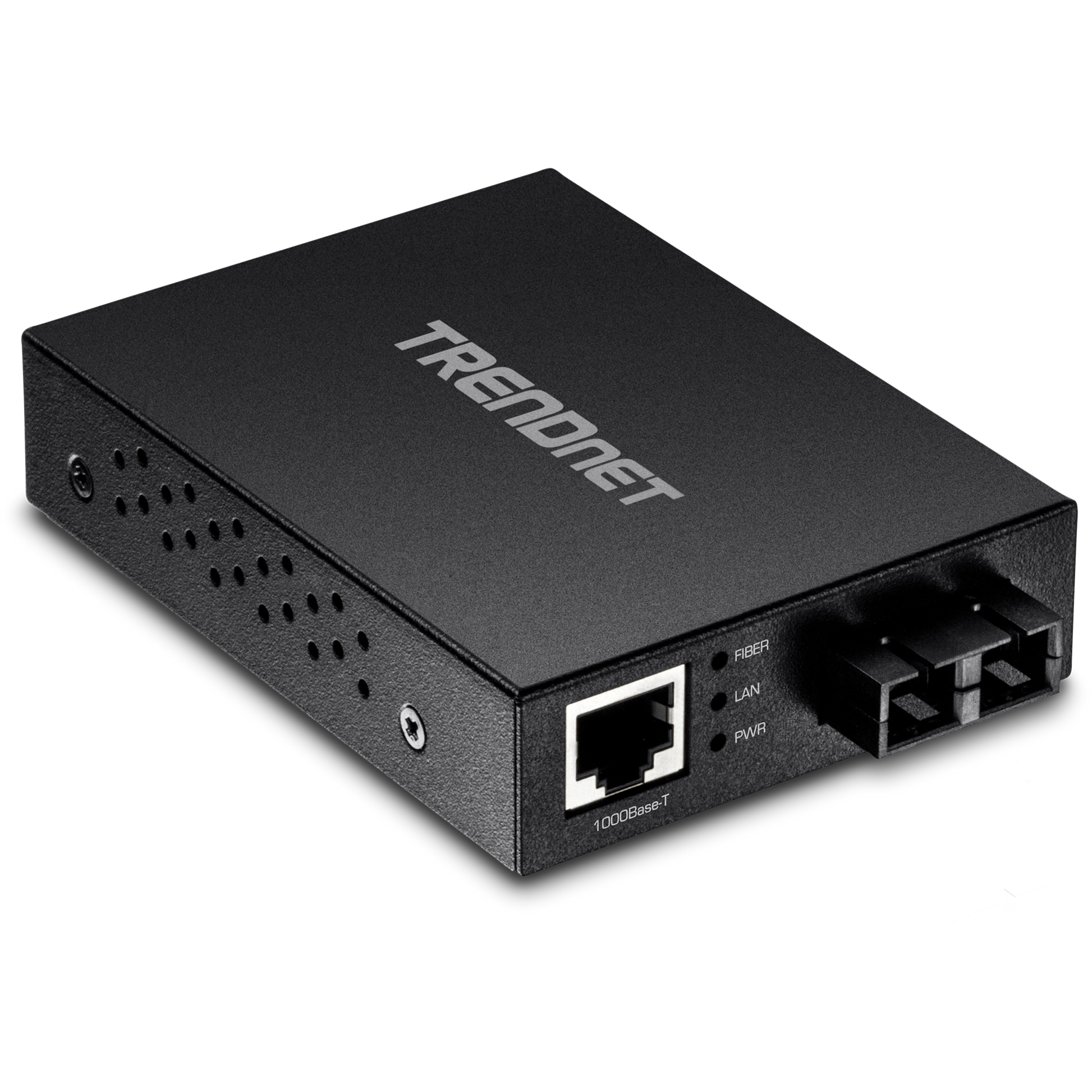

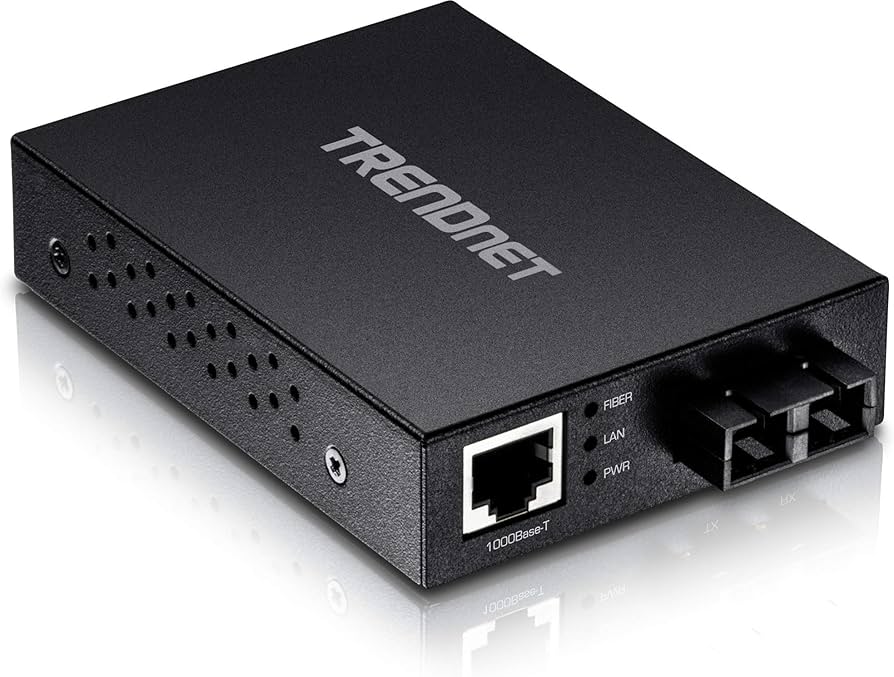

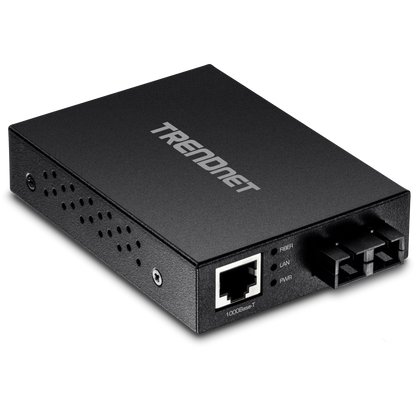

TRENDNET TFC-GMSC 1000Base-T to 1000-SX Media Converter

VENDOR: TRENDNET Mfg Part#: TFC-GMSC UPC#: 710931504729
1 5
Photo is for illustration purposes only. Actual product may be different.
$66.16
$66.16
Sale Sold out
MSRP: $67.99
Shipping calculated at checkout.
  • External media converter with Auto-MDIX 10/100/1000 Mbps Gigabit port
  • SC-type fiber port supporting 100/1000 Mbps over multi-mode fiber
  • Supports 50/125 µm (up to 550 m) and 62.5/125 µm (up to 220 m) optical fiber
  • Complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3z networking standards
  • Compact housing with dimensions: 4.01" W x 2.95" D x 0.88" H
  • Covered by a 3-year limited warranty and TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables seamless copper-to-fiber conversion for extending network distance up to 550 meters
  • TAA compliance and origin in Taiwan make it suitable for federal and government applications
  • Built-in Auto-MDIX and compliance with multiple IEEE standards ensure plug-and-play compatibility

Product Overview

The TRENDNET TFC-GMSC is a high-performance Gigabit Ethernet media converter designed to transparently connect 1000Base-T copper networks to 1000-SX fiber infrastructures. Engineered with an external form factor, the compact unit features one Auto-MDIX Gigabit port and one SC-type fiber port, supporting both 100/1000 Mbps fiber connectivity. This converter supports multi-mode optical fiber with distances of up to 550 meters for 50/125 µm cables and up to 220 meters for 62.5/125 µm cables, and allows Cat.5e/6 cabling up to 100 meters.

Compliance with IEEE networking standards (IEEE 802.3, 802.3u, 802.3ab, and 802.3z) ensures compatibility across a wide range of networking environments. The device is TAA compliant and manufactured in Taiwan, offering assurance in government and regulated deployments. Its compact housing—just under 1 inch in height—allows flexibility in mounting and deployment in tight spaces. Backed by a 3-year limited warranty, the TRENDNET TFC-GMSC provides a cost-effective long-range media extension solution for businesses upgrading to fiber without changing their existing copper infrastructure.

Specifications

Product Overview
Product Type Gigabit Ethernet Media Converter
Form Factor External
Mounting Type Desktop
Power Requirement 5V DC, 2A External Power Adapter
Power Consumption Max. 3.7W
Weight 220 g (7.8 oz.)

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE
RoHS Compliant Yes
Compliance Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

Advanced Security Features

Interfaces
Copper Port Type 1 x 10/100/1000 Mbps Auto-MDIX RJ-45
Fiber Port Type 1 x 100/1000 Mbps SC-type multi-mode fiber port
Fiber Mode Supported Multi-Mode
Copper Cable Type Cat.5e or better, 100-ohm twisted pair STP/UTP
Copper Transmission Distance Up to 100 meters (328 ft)
Fiber Transmission Distance (50/125 µm) Up to 550 meters (1804 ft)
Fiber Transmission Distance (62.5/125 µm) Up to 220 meters (722 ft)
Supported Standards 1000Base-T, 100Base-FX, 1000Base-SX
Auto-Negotiation (Copper) Yes
Auto MDI/MDI-X Yes
Data Transfer Rate Up to 1 Gbps

Physical & Environmental
Width 102 mm (4.01 in.)
Depth 75 mm (2.95 in.)
Height 22.5 mm (0.88 in.)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Operating Humidity Max. 90% RH, non-condensing
Storage Humidity Max. 95% RH, non-condensing
Housing Material Metal
LED Indicators Power, Link/Activity (fiber), Link/Activity (copper)

Cloud Management & Licensing

Service & Warranty
Warranty 3-Year Limited Warranty
