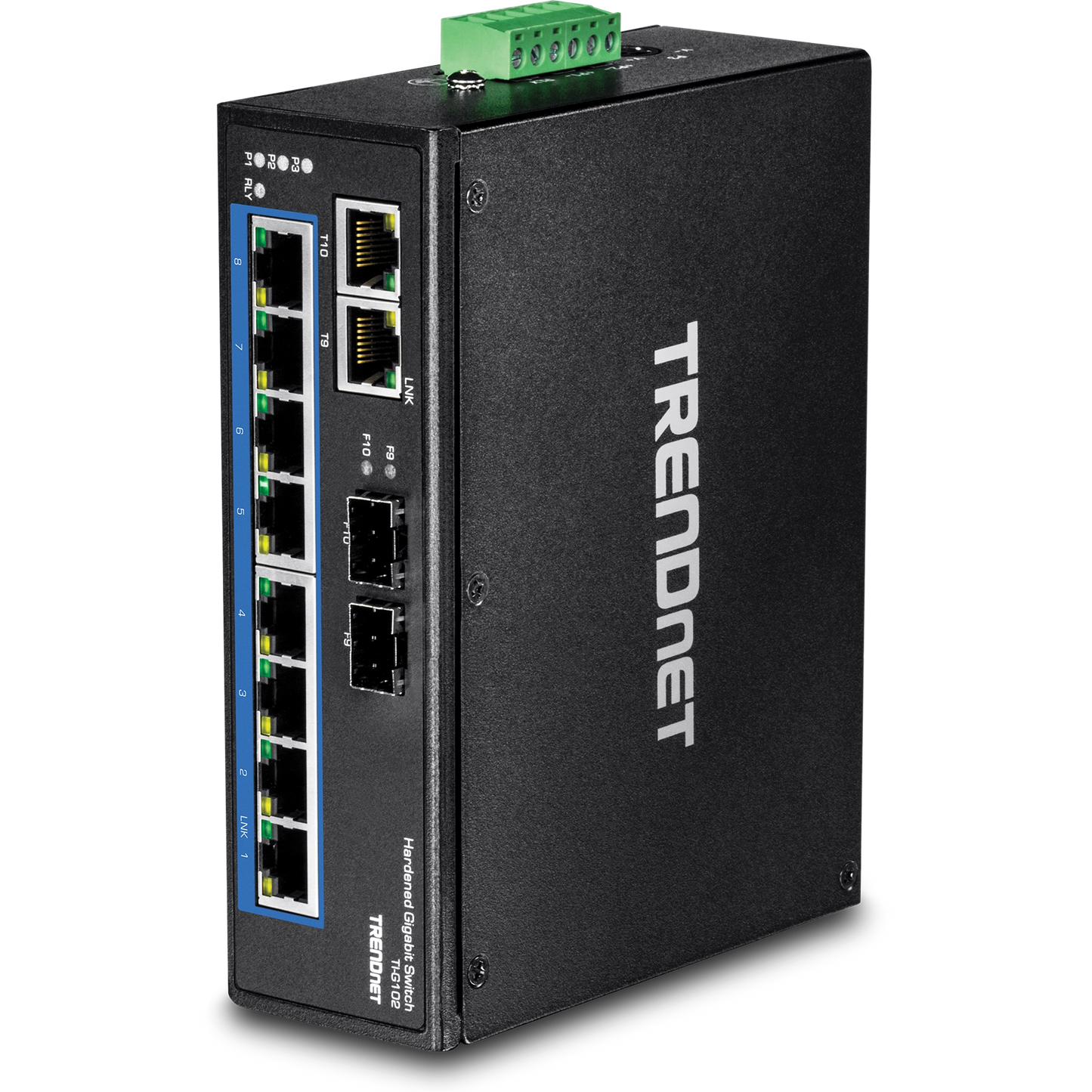

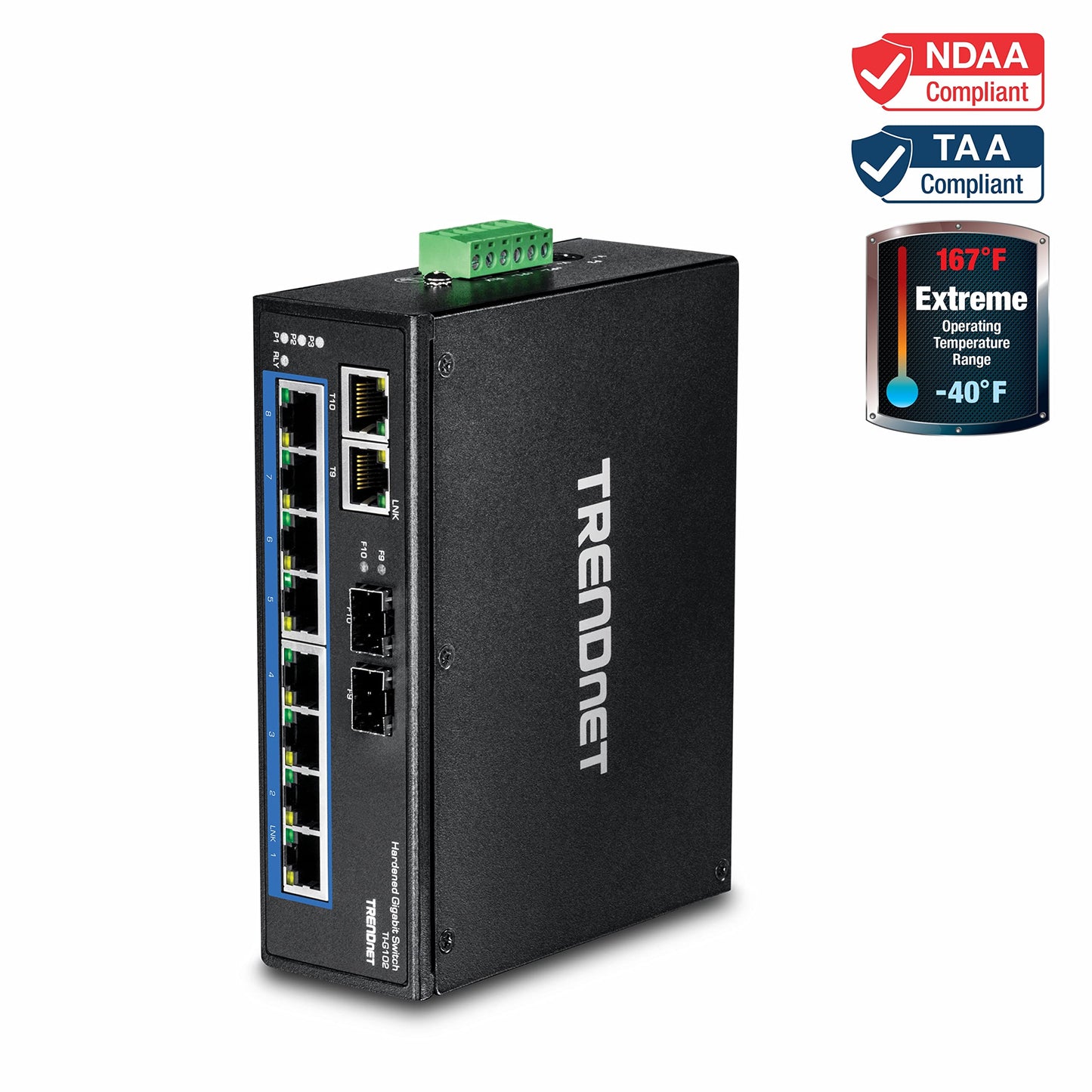

TRENDnet TI-G102 10-Port Hardened Industrial Gigabit Switch

VENDOR: TRENDNET Mfg Part#: TI-G102 UPC#: 710931160925
1 5
Photo is for illustration purposes only. Actual product may be different.
$280.34
$280.34
Sale Sold out
MSRP: $289.99
Shipping calculated at checkout.
  • 10 total ports: 8 Gigabit Ethernet and 2 combo Gigabit/SFP
  • Supports 1 Gbps data transfer rate with Gigabit Ethernet protocol
  • DIN-rail and wall-mount compatible for flexible installation
  • Includes 6-pin removable terminal block for secure power connection
  • TAA compliant and backed by a limited lifetime warranty
  • Industrial-grade hardened design for extreme environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Offers flexible Gigabit networking with combo SFP slots for mixed copper and fiber deployments
  • Designed for industrial reliability with hardened housing and secure power connections
  • TAA compliant for government-regulated applications needing trusted component sourcing

Product Overview

10-Port Hardened Industrial Gigabit DIN-Rail Switch

Specifications

Product Overview
Product Type Industrial Gigabit Ethernet Switch
Form Factor DIN-Rail Mountable
Switch Type Unmanaged
Number of Ports 10
Enclosure Type Metal
Power Input Dual redundant 12 to 52 VDC power inputs
Power Consumption Max. 6.27 Watts
Redundant Power Inputs Yes
Weight 1.65 lbs (0.75 kg)

Physical & Environmental
Width 6.10 in. (155 mm)
Depth 4.72 in. (120 mm)
Height 1.88 in. (48 mm)
Mounting Options DIN-Rail and Wall Mountable
Operating Temperature -40° to 75° C (-40° to 167° F)
Storage Temperature -40° to 85° C (-40° to 185° F)
Operating Humidity 5% to 95% (non-condensing)
IP Rating IP30 rated metal enclosure
Shock Resistance EN 60068-2-27
Vibration Resistance EN 60068-2-6
Heat Dissipation 21.39 BTU/hr

Cloud Management & Licensing
Cloud Management No
Management Type Unmanaged - no interface

Interfaces
Copper Ports 8 x 10/100/1000 Mbps RJ-45
SFP Slots 2 x Gigabit SFP slots shared with RJ-45 combo ports
Total Gigabit Ports 10
Networking Standards IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x
Switching Capacity 20 Gbps
Forwarding Rate 14.88 Mpps (64-byte packets)
MAC Address Table 8K entries
Buffer Memory 1 Mbits
Jumbo Frame Support Up to 10 KB
Flow Control IEEE 802.3x (Full Duplex) and Back Pressure (Half Duplex)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, EN 60950-1, IEC 60068-2-6, EN 55032, EN 55024, EN61000-4-2/3/4/5/6/8/11
RoHS Compliant Yes
Warranty Lifetime Limited Warranty

Advanced Security Features
Security Capabilities None (Unmanaged)
