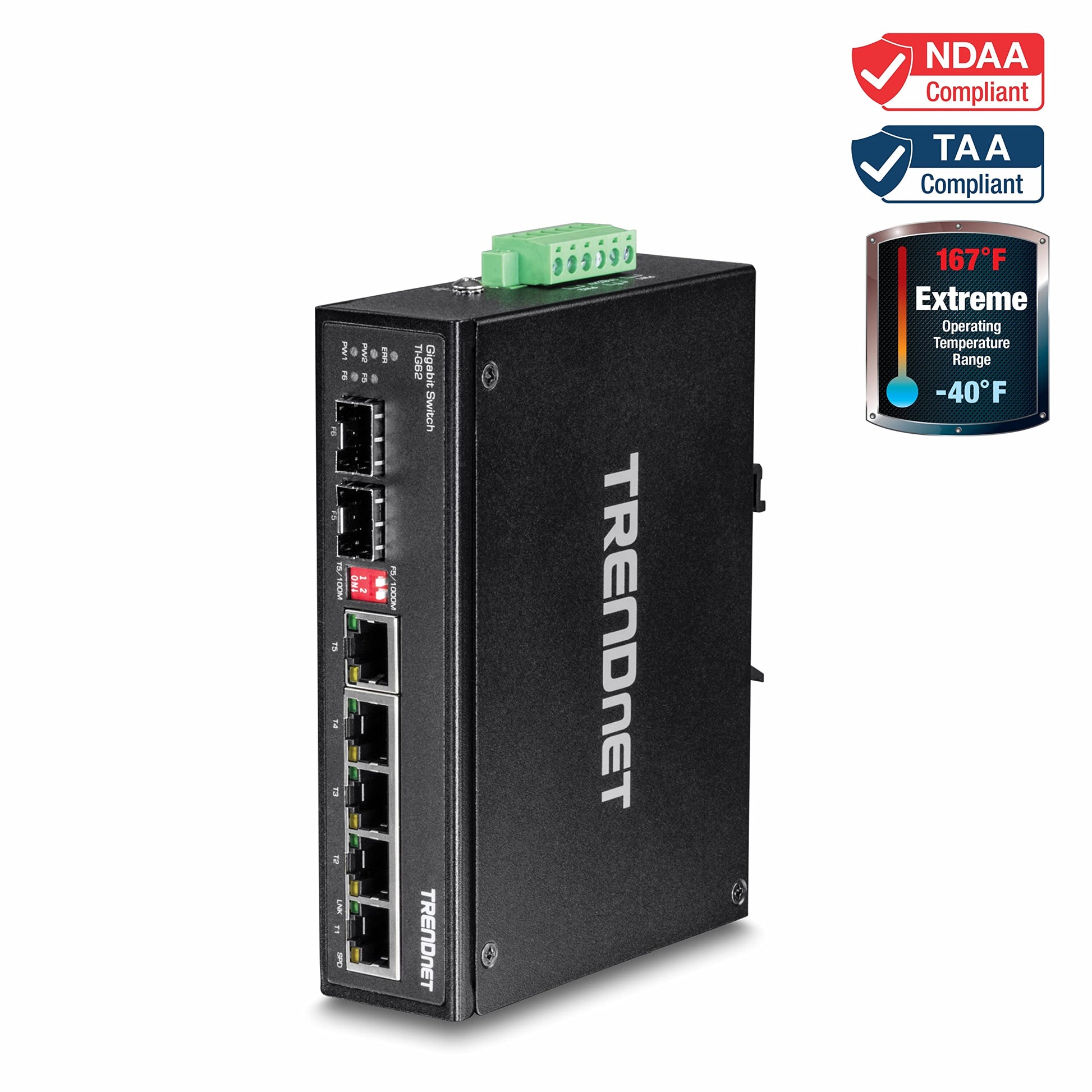

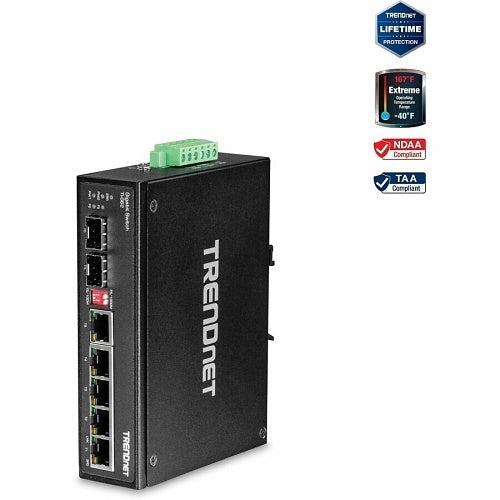

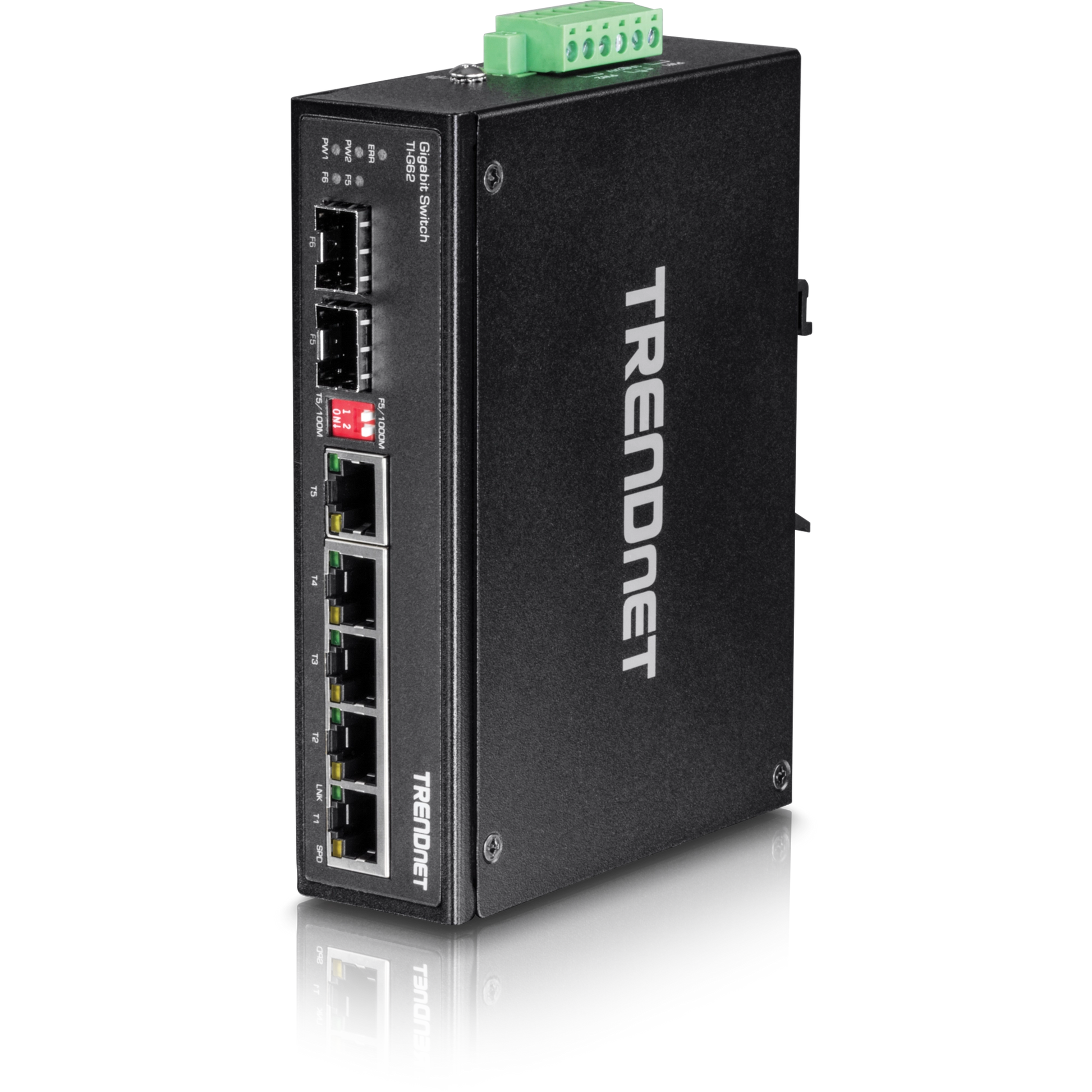

TRENDnet TI-G62 6-Port Hardened Industrial Gigabit Switch

VENDOR: TRENDNET Mfg Part#: TI-G62 UPC#: 710931160345
1 5
Photo is for illustration purposes only. Actual product may be different.
$156.99
$156.99
Sale Sold out
MSRP: $159.99
Shipping calculated at checkout.
  • 6 total ports, including 5 Gigabit Ethernet and 2 SFP (1 shared, 1 dedicated)
  • Supports multiple Ethernet protocols: IEEE 802.3, 802.3x, 802.3ab, 802.3z, 802.3u
  • Full-duplex data transfer rate up to 2000 Mbps
  • Ruggedized industrial design suitable for extreme environments
  • Compact build: 5.60" (W) x 4.10" (D) x 1.40" (H)
  • Backed by a limited lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for industrial applications requiring rugged, compact switching hardware
  • Offers flexible high-speed connectivity via copper and fiber (SFP) in a single device
  • TAA compliance and limited lifetime warranty make it suitable for government and enterprise networks

Product Overview

6-port hardened Industrial Gigabit Switch (5 Gigabit / 1 shared SFP / 1 dedicated SFP)

Specifications

Product Overview
Product Type Hardened Industrial Gigabit Switch
Form Factor DIN-rail mountable
Number of Ports 6

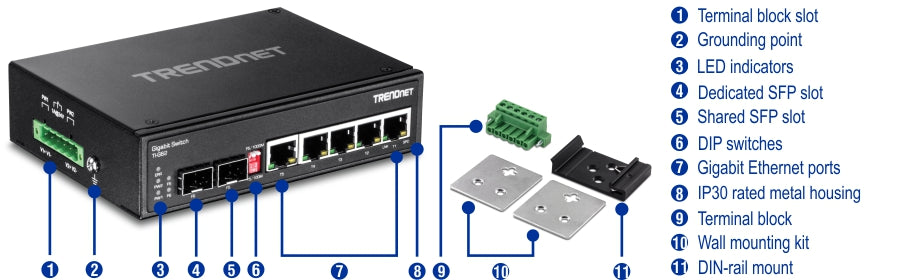

Port Configuration 5 x Gigabit RJ-45, 1 x shared SFP, 1 x dedicated SFP
Power Input 12 ~ 56V DC redundant power inputs
Redundant Power Yes
Weight 0.83 lbs (0.38 kg)
Power Consumption (Max) 6.1 Watts
MTBF 671,487 hours

Physical & Environmental
Width 5.60 inches (143 mm)
Depth 4.10 inches (104 mm)
Height 1.40 inches (36 mm)
Enclosure Type Metal, IP30 rated
Operating Temperature -40° – 75°C (-40° – 167°F)
Storage Temperature -40° – 85°C (-40° – 185°F)
Operating Humidity 5% – 95% non-condensing
Vibration Resistance IEC60068-2-6
Shock Resistance IEC60068-2-27
Free Fall Resistance IEC60068-2-32

Cloud Management & Licensing
Management Unmanaged

Interfaces
Uplink Interface 2 x SFP (1 shared, 1 dedicated)
RJ-45 Ports 5 x 10/100/1000 Mbps
SFP Ports 2 x 100/1000 Mbps
Switching Capacity 12 Gbps
Forwarding Rate 8.93 Mpps
MAC Address Table Size 8K entries
Packet Buffer Size 1 Mbit
Jumbo Frame Support Up to 9 KB
Plug and Play Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, EN 60950-1, EN 55032, EN 55024
EMI FCC Part 15 Subpart B Class A
Safety Compliance EN 60950-1
Warranty Lifetime Limited Warranty

Advanced Security Features
Broadcast Storm Control Yes
Surge Protection 6kV ESD protection on all ports
