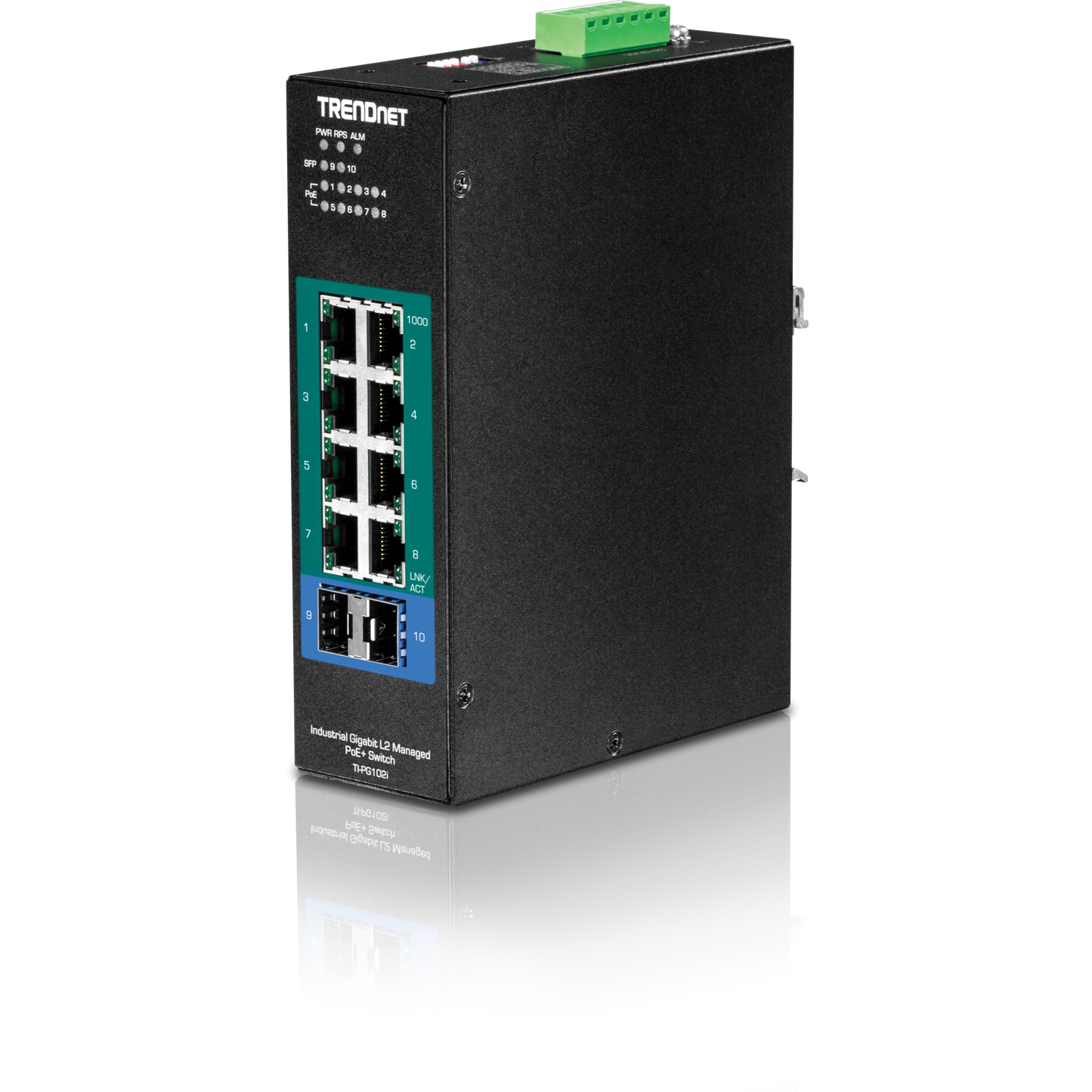

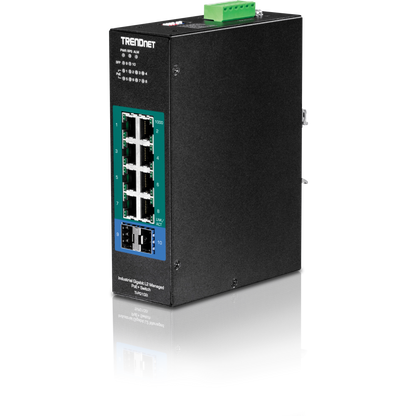

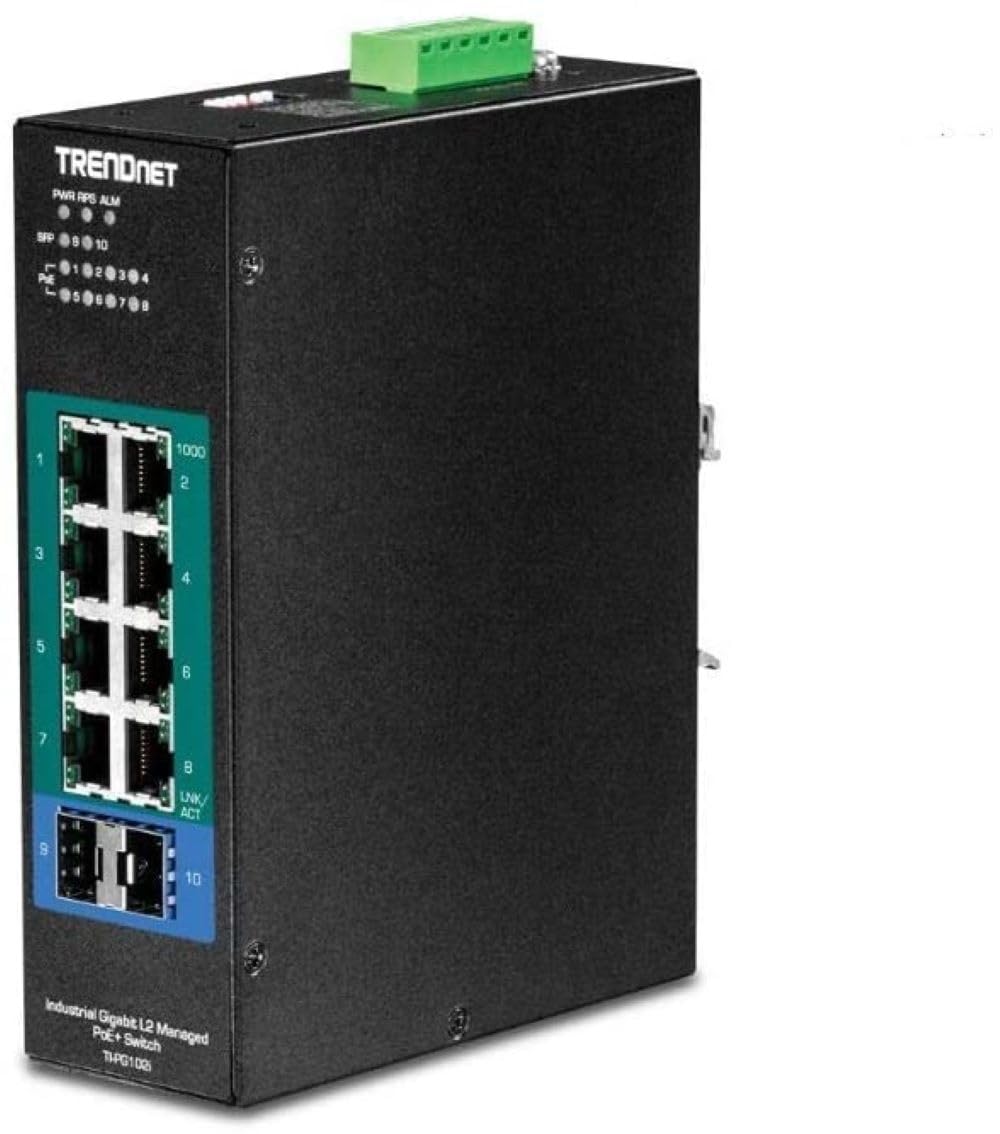

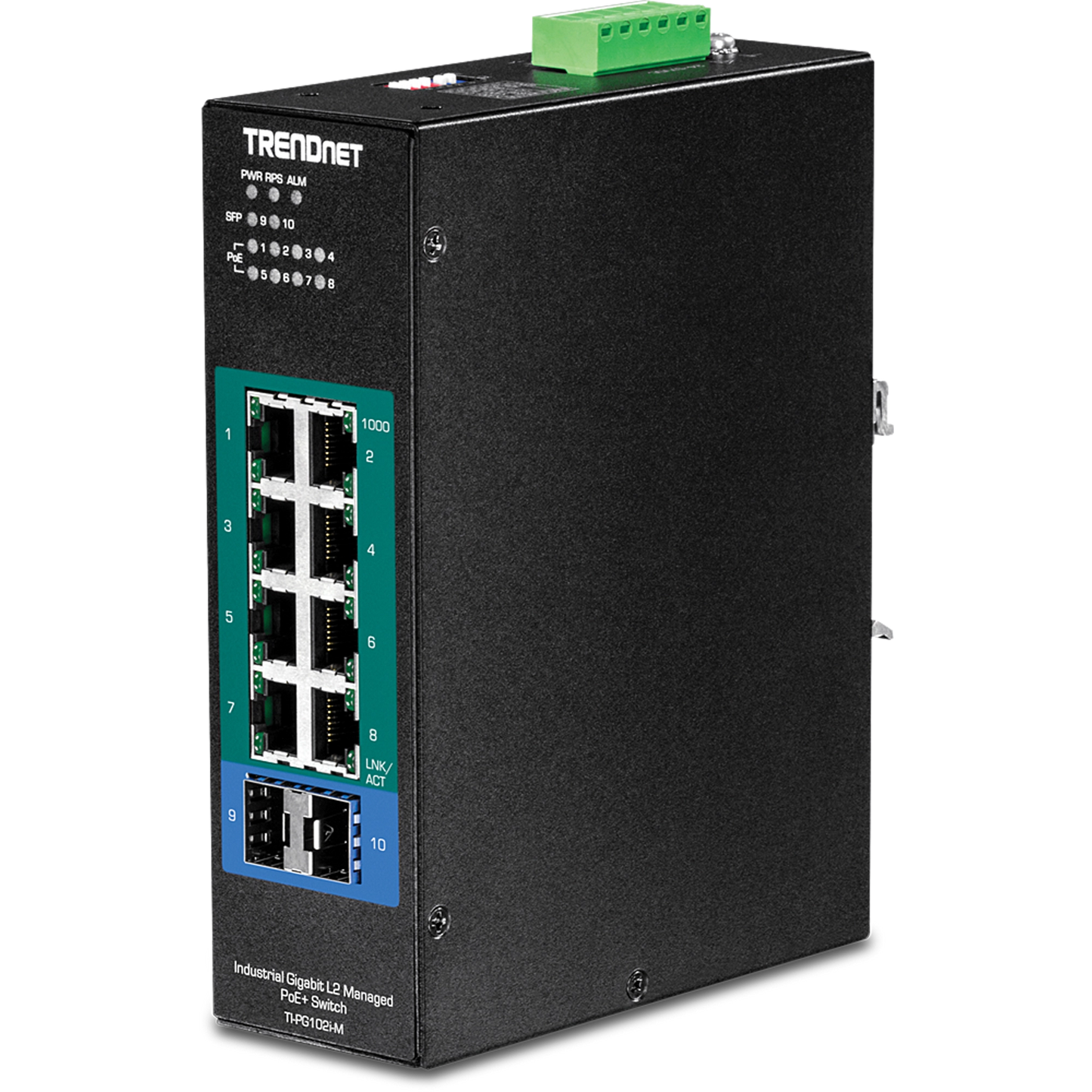

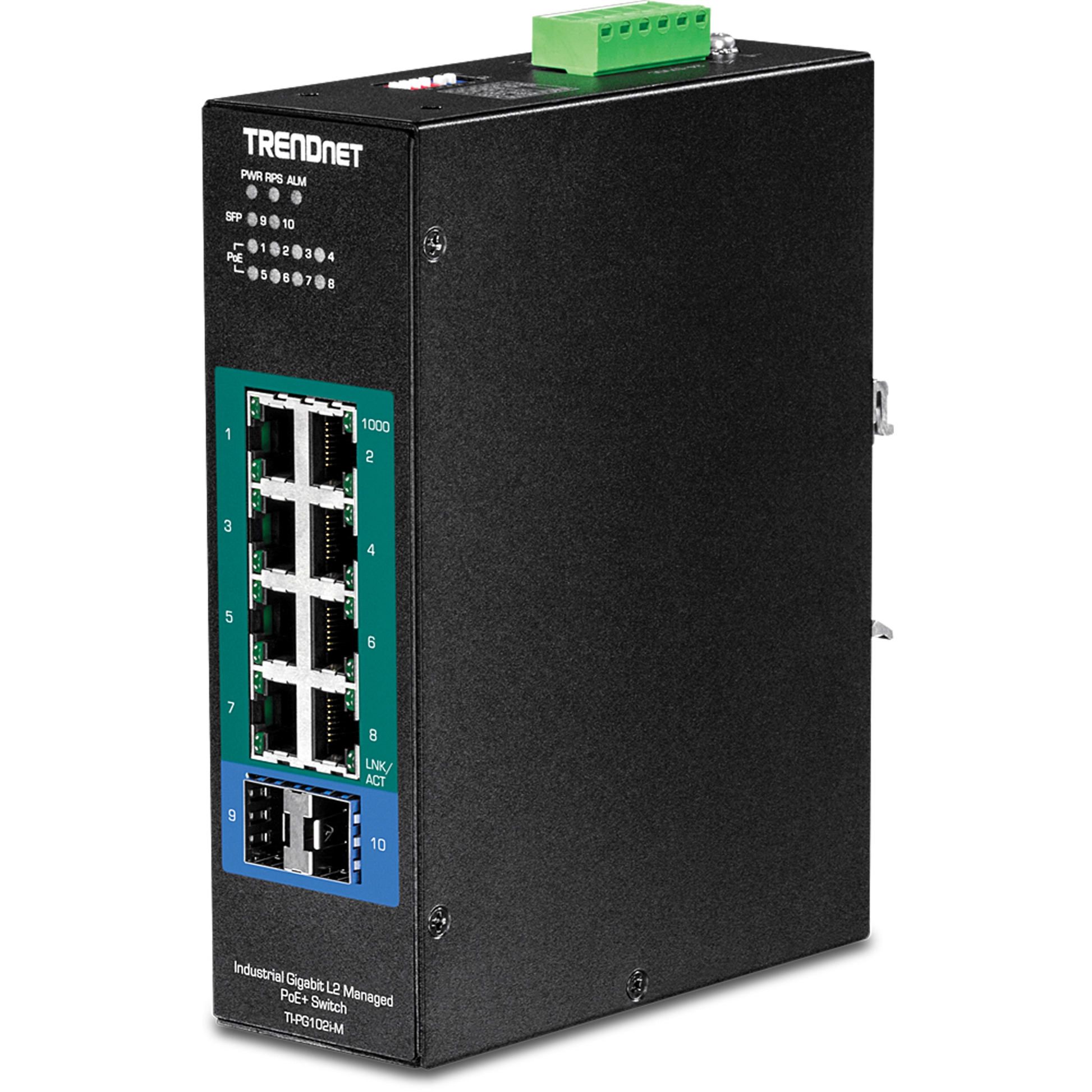

TRENDnet TI-PG102I 10-Port Industrial Gigabit L2 Managed PoE+ Switch

VENDOR: TRENDNET Mfg Part#: TI-PG102I UPC#: 710931161342
1 5
Photo is for illustration purposes only. Actual product may be different.
$527.05
$527.05
Sale Sold out
MSRP: $539.99
Shipping calculated at checkout.
  • - 8 x Gigabit PoE+ ports and 2 x 100/1000Mbps SFP slots
  • - Data transfer rate of 1 Gbps with support for Jumbo Frames up to 10KB
  • - Operates in extreme temperatures from -40°C to 75°C
  • - Supports SNMP, RMON, HTTP, Syslog, and DHCP for remote management
  • - PoE alive check functionality for automatic device reboot
  • - MAC address table with 8K entries for high-volume data handling

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - Built for demanding environments with wide operating temperatures and industrial-grade durability
  • - Advanced Layer 2 management and remote access tools enhance network visibility and uptime
  • - Backed by a lifetime warranty, ensuring long-term value and ROI in critical deployments

Product Overview

TRENDNET TI-PG102I - 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch - Wired - 1Gbps - Gigabit Ethernet - 8 x Gigabit PoE+ ports, 2 x 100/1000Mbps SFP slots - Lifetime Warranty

Specifications

Product Overview
Product Type Industrial Gigabit L2 Managed PoE+ Switch
Form Factor DIN rail mountable
Model TI-PG102I
Weight 0.93 Kg
Maximum Power Consumption 253 Watt
MTBF 562234 hours @ 25°C
PoE Power Budget 240W

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, EN 60950-1, UL
RoHS Compliant Yes

Advanced Security Features
Access Control 802.1X, RADIUS
PoE Watchdog (PoE Alive Check) Yes
Network Storm Control Supported
Port Security Supported
DoS Protection Supported

Interfaces
Total Ports 10
Gigabit PoE+ Ports 8
SFP Ports 2
Port Speed 10/100/1000 Mbps (RJ-45), 100/1000 Mbps (SFP)
PoE Standards IEEE 802.3at/802.3af
MAC Address Table Size 8K entries
Jumbo Frame Support 10KB
Switching Capacity 20 Gbps
Forwarding Rate 14.88 Mpps

Physical & Environmental
Width 6.3 Inch
Depth 4.72 Inch
Height 1.97 Inch
Min Operating Temperature -40 °C
Max Operating Temperature 75 °C
Operating Humidity 5% – 95% (non-condensing)
Storage Temperature -40 °C to 85 °C
Storage Humidity 5% – 95% (non-condensing)
Enclosure Rating IP30-rated metal housing
Cooling Type Fanless

Cloud Management & Licensing
Management Interface Web GUI, CLI, SNMP v1/v2c/v3, RMON, HTTP, Syslog, DHCP
Included Management Features VLAN, QoS, Link Aggregation, IGMP Snooping, LLDP
Firmware Upgrade Method Via Web Browser
Event Log Syslog and Local Log Support
