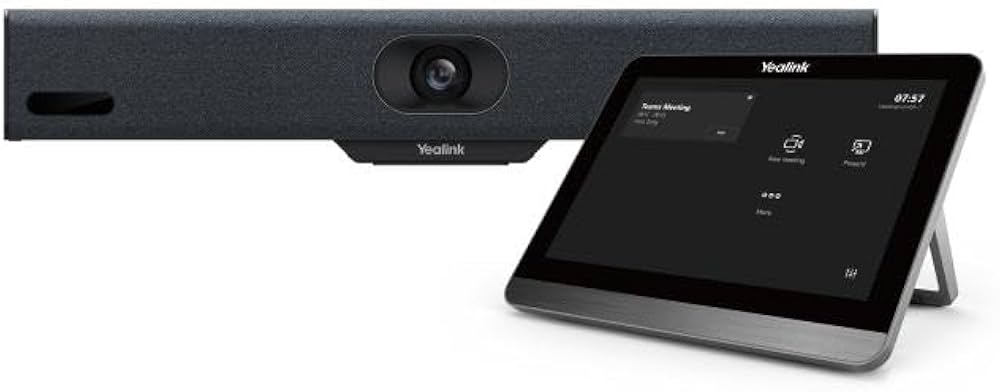

Yealink A10-020 Platform Collaboration Bar with CTP18 Console

VENDOR: YEALINK Mfg Part#: A10-020 UPC#: 841885118608
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,365.59
$1,365.59
Sale Sold out
MSRP: $1,599.00
Shipping calculated at checkout.
  • All-in-one Yealink A10 Collaboration Bar for audio and video
  • Includes CTP18 touch console with PoE adapter
  • Bundled with mounting hardware and all required cables

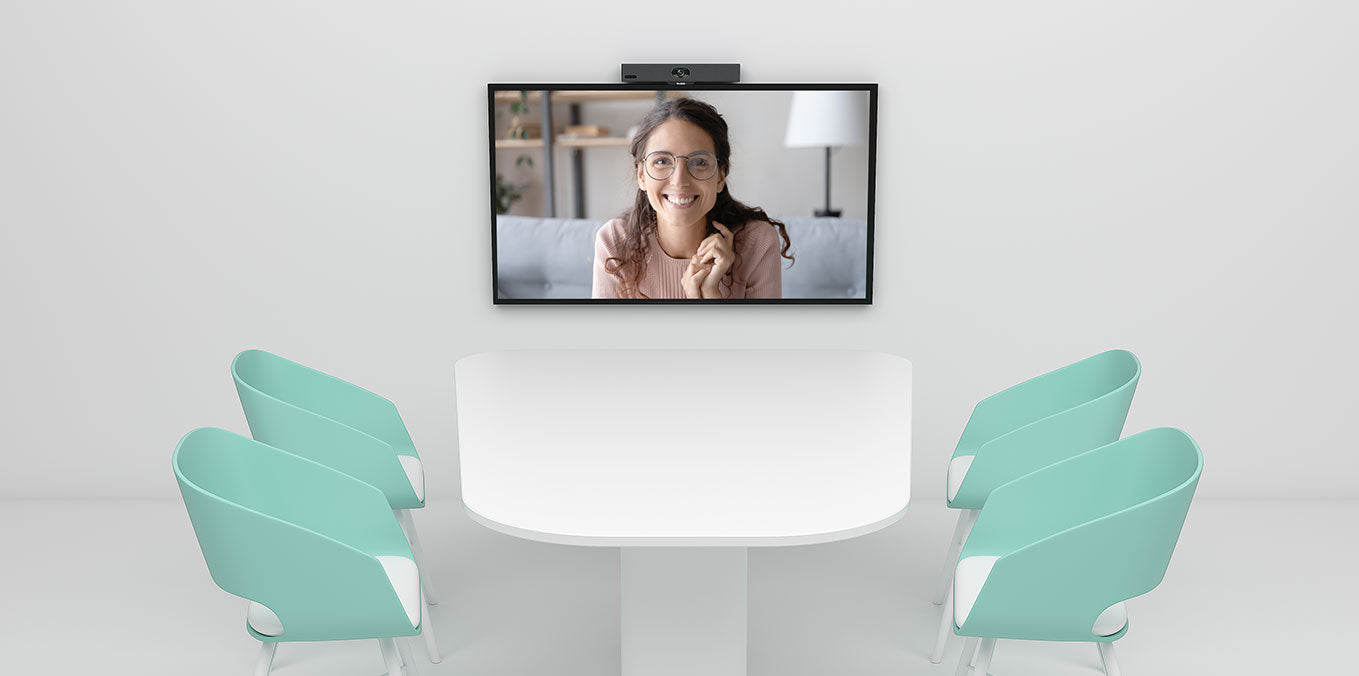

  • Designed for use in compact huddle rooms
  • Includes 2-year hardware warranty
  • Made in China

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • All-in-one package simplifies deployment in huddle rooms without requiring separate components.
  • Control and usability are enhanced with the included CTP18 touch console, ideal for hands-on meeting management.
  • Bundled accessories and 2-year warranty provide out-of-the-box readiness and peace of mind for IT teams.

Product Overview

Leading Platform Collaboration Bar for huddle rooms; 1x A10 all-in-one Collaboration bar, power adapter, wallmount bracket and cables; 1x CTP18 touch console, PoE power adapter wallmount bracket and cables; Including 2-year hardware warranty.

Specifications

Product Overview
Type All-in-One Video Collaboration Bar with Touch Console
Form Factor Wall-mountable / Conference room bar
Included Components A10 collaboration bar, Yealink CTP18 touch console, power adapters, wall mount brackets, cables
Warranty 2-year hardware warranty
Power Requirements 48V DC via PoE or power adapter
Power Consumption A10: <18W; CTP18: <6.5W
Weight (A10) 1.46 kg (3.22 lbs)
Weight (CTP18) 0.4 kg (0.88 lbs)

Wireless Features
Wi-Fi Support 802.11a/b/g/n/ac
Bluetooth Bluetooth 4.2
Wireless Display Support Yealink Wireless Presentation Pod (WPP30, optional)
Wi-Fi Frequency Bands 2.4 GHz / 5 GHz

Compliance & Origin
Country of Origin China
Certifications CE, FCC, RoHS, REACH
EMC Compliance EN55032, EN55024
Safety Standards EN62368-1

Advanced Security Features
Firmware Security Secure boot, image authentication
Data Encryption TLS/SSL, SRTP for media encryption
User Authentication Platform-based login (Microsoft 365 / Zoom)
Administrator Authentication Username/password protected with role-based access

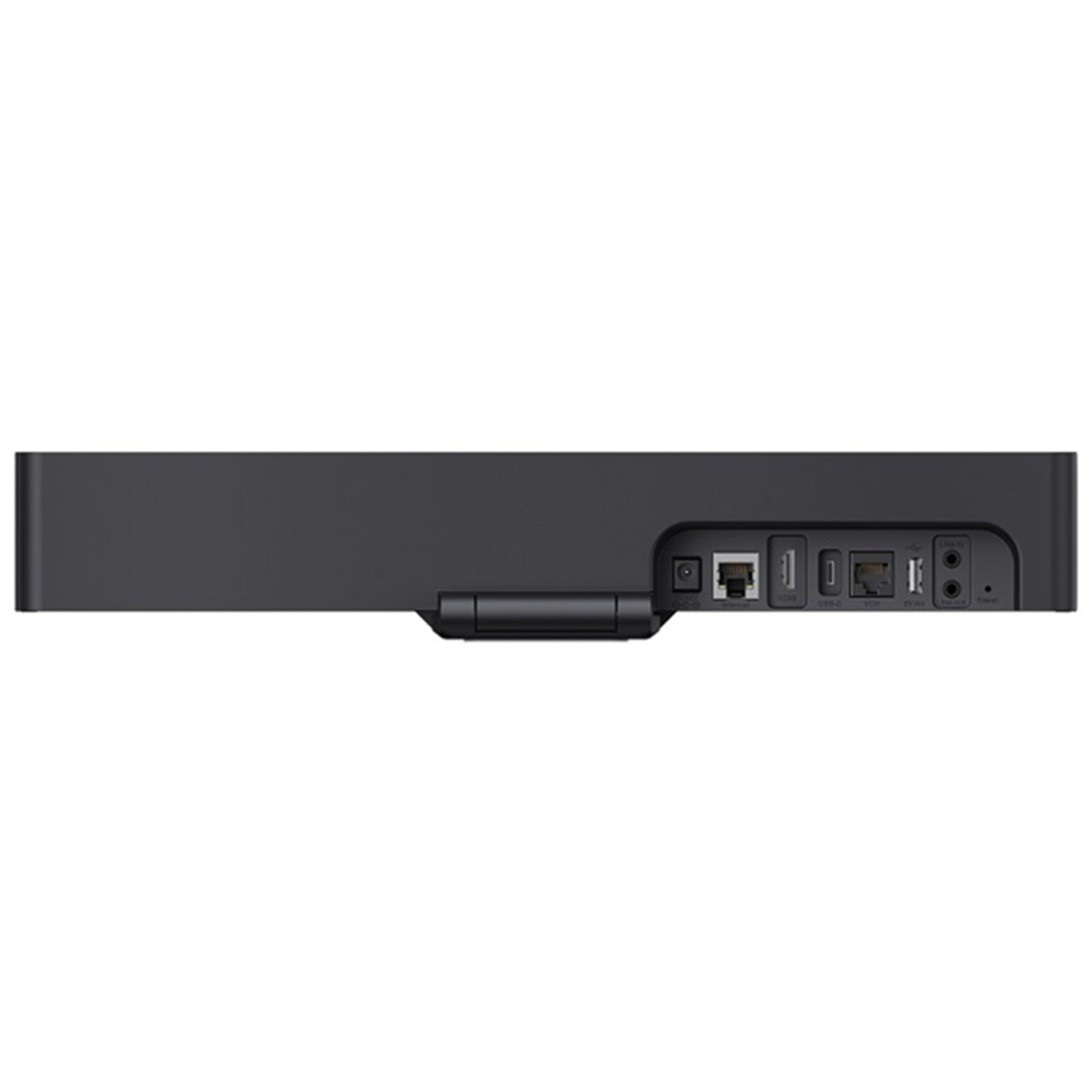

Interfaces
Network Interface 1 x 10/100/1000 Mbps Ethernet port (RJ45)
USB Ports 1 x USB 2.0 Type-A, 1 x USB-C (debug only)
HDMI Output 1 x HDMI (display output)
Power over Ethernet (PoE) Yes, IEEE 802.3af supported on CTP18
Mic Array 8-microphone beamforming array
Speaker Dual 5W full-duplex stereo speakers

Physical & Environmental
Dimensions (A10) 380 mm × 55 mm × 55 mm (W x H x D)
Dimensions (CTP18) 202 mm × 141 mm × 102 mm (W x H x D)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Relative Humidity 10%–95%, non-condensing
Mounting Options Wall-mountable or placed on tabletop

Cloud Management & Licensing
Platform Compatibility Zoom Rooms, Microsoft Teams Rooms, Yealink Meeting
Management Interface Yealink Device Management Platform / Teams Admin Center / Zoom Admin Portal
Licensing Requirements License dependent on platform (Teams or Zoom)
Included Licenses No preloaded license
Remote Device Management Yes
