Yealink MVC860-C5 MS Teams Room System for Medium-to-Large Rooms

VENDOR: YEALINK Mfg Part#: MVC860-C5-000 UPC#: 841885118677
1 4
Photo is for illustration purposes only. Actual product may be different.
$4,260.51
$4,260.51
Sale Sold out
MSRP: $4,999.00
Shipping calculated at checkout.
  • - Native Microsoft Teams Rooms system with full hardware integration
  • - Supports ultra-HD 3840 x 2160 video capture via UVC86 camera
  • - MTouch Plus touch-screen interface for interactive control
  • - Gigabit Ethernet networking with up to 1 Gbps transfer rate
  • - Includes RoomSensor, MCore Pro mini-PC, and all necessary accessories
  • - Backed by a 2-year hardware warranty for added peace of mind

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Designed specifically for Microsoft Teams, ensuring out-of-the-box compatibility and streamlined setup.
  • Delivers ultra-high-definition video capture and interactive control for maximized meeting clarity and usability.
  • Comprehensive hardware kit with included accessories simplifies installation and reduces time-to-deployment.

Product Overview

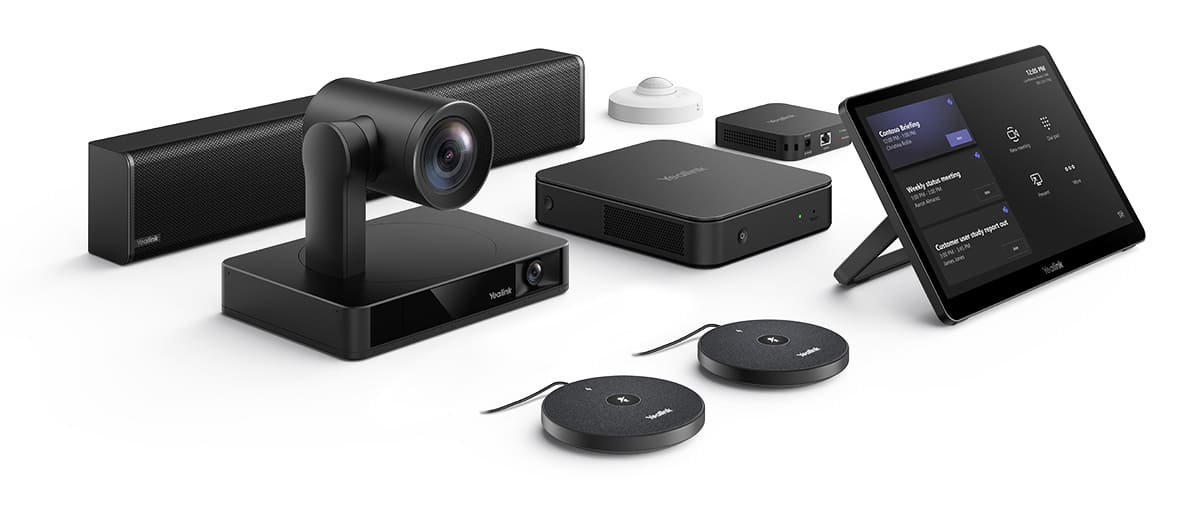

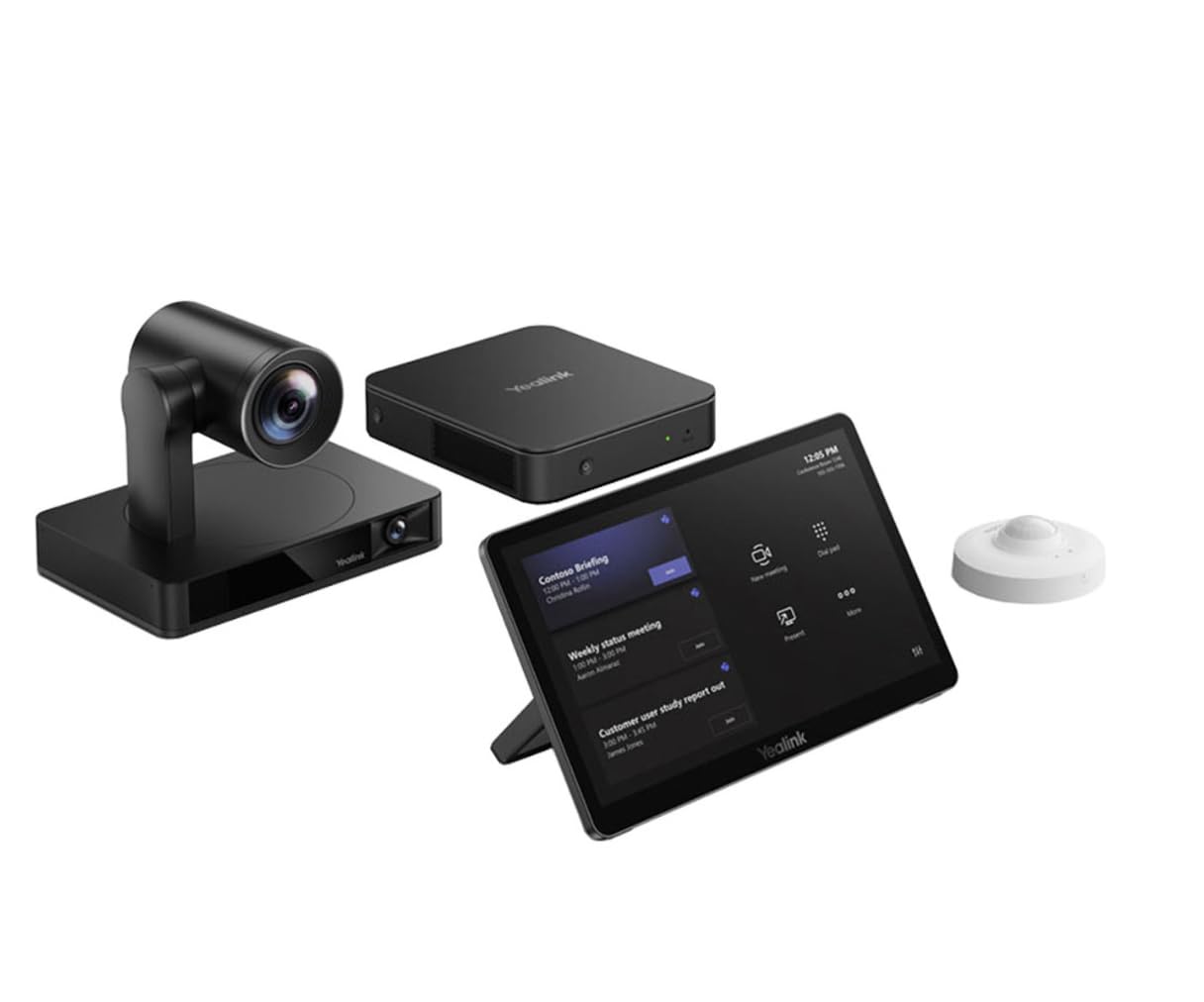

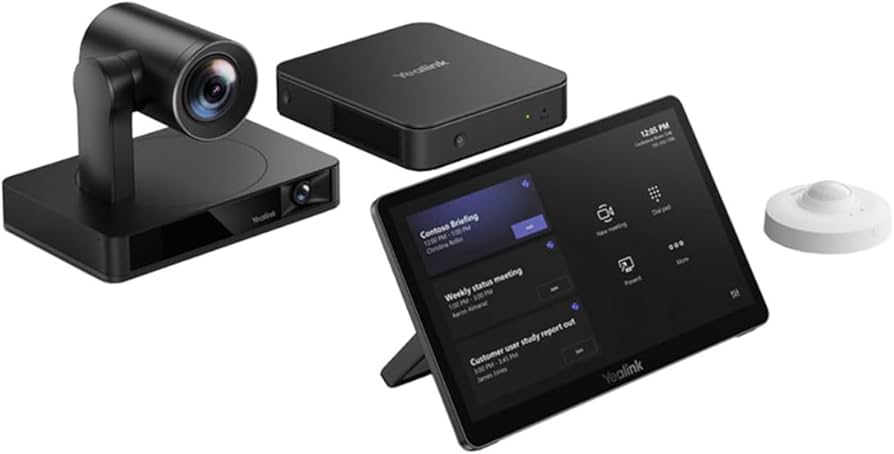

For Medium-to-large Rooms, 1x UVC86, 1x VCR20 remote control, 1x MCoreKit-C5 (with MCore Pro mini-PC, MTouch Plus and RoomSensor), power adapter, cables and wall braket, Including 2-year hardware warranty.

Specifications

Product Overview
Product Type Microsoft Teams Rooms system
Form Factor Modular conference room system
Included Camera Yealink UVC86 4K dual-eye intelligent tracking camera
Included Controller Yealink MTouch Plus touch panel
Included Compute Unit Yealink MCore Pro mini-PC
Included Accessories VCR20 remote control, RoomSensor, power adapters, cables, wall bracket
Digital Video Capture Resolution 3840 x 2160
Display Support Supports dual displays
Mounting Options Wall-mountable camera and table-mounted controller
Weight MCore Pro: approx. 1.9 kg; UVC86: approx. 3.3 kg
Power Requirements 100–240V AC, 50/60Hz

Wireless Features
Wi-Fi Standard Wi-Fi 802.11ac (in MTouch Plus)
Bluetooth Support Bluetooth 5.0 (in MTouch Plus)
Wireless Sharing Supports wireless content sharing via WPP30 (optional accessory)

Compliance & Origin
Country of Origin CHINA
TAA Compliance No
Certifications CE, FCC, RoHS
Warranty 2-year hardware warranty

Advanced Security Features
OS Security Windows 10 IoT Enterprise (on MCore Pro)
BitLocker Disk Encryption Supported on mini-PC
Secure Boot Supported

Interfaces
Video Input 1 x HDMI input
Video Output 2 x HDMI output
USB Ports 4 x USB-A 3.0, 1 x USB-C
Network Interfaces 1 x Gigabit Ethernet (RJ-45)
Data Link Protocol Gigabit Ethernet
Max Transfer Rate 1 Gbps
Audio Input Via VCM or wireless mic array (sold separately)
Audio Output 3.5mm line out/HDMI digital audio
Expansion Ports RJ45 interface for audio devices

Physical & Environmental
Dimensions - MCore Pro 158 mm × 150 mm × 43.5 mm
Dimensions - UVC86 Camera 282 mm × 118 mm × 118 mm
Dimensions - MTouch Plus 338 mm × 205 mm × 102 mm
Operating Temperature 0°C to 40°C
Operating Humidity 10%–95%, non-condensing
Storage Temperature -30°C to 70°C
Cooling Passive cooling for MCore Pro

Cloud Management & Licensing
Platform Microsoft Teams Rooms
Management Interface MTouch Plus touch console
Cloud Licensing Requirement Requires Microsoft Teams Rooms license (not included)
Remote Management Support Yealink Device Management Platform
