YEALINK ZVC S90 Zoom Room System for ProAV Rooms

VENDOR: YEALINK Mfg Part#: ZVC S90-C5-004 UPC#: 841885121523
1 3
Photo is for illustration purposes only. Actual product may be different.
$8,521.88
$8,521.88
Sale Sold out
MSRP: $9,999.00
Shipping calculated at checkout.
  • Dual 4K UVC86 intelligent cameras with 20.4x total zoom (12x optical, 1.7x digital)
  • 3840 x 2160 resolution with HDMI output for high-definition video
  • Wireless connectivity with IEEE 802.11 ax and Bluetooth 5.2 support
  • Supports Gigabit Ethernet with up to 1 Gbps transfer rate
  • Touch-screen input compatible with flexible control options
  • Includes MVC-BYOD-Extender for seamless device compatibility

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Engineered specifically for Zoom Rooms, ensuring seamless platform integration and user experience.
  • Dual intelligent cameras and AVHub enable automated speaker tracking and layout flexibility for immersive conferencing.
  • BYOD compatibility and comprehensive connectivity options reduce IT overhead and support flexible room usage.

Product Overview

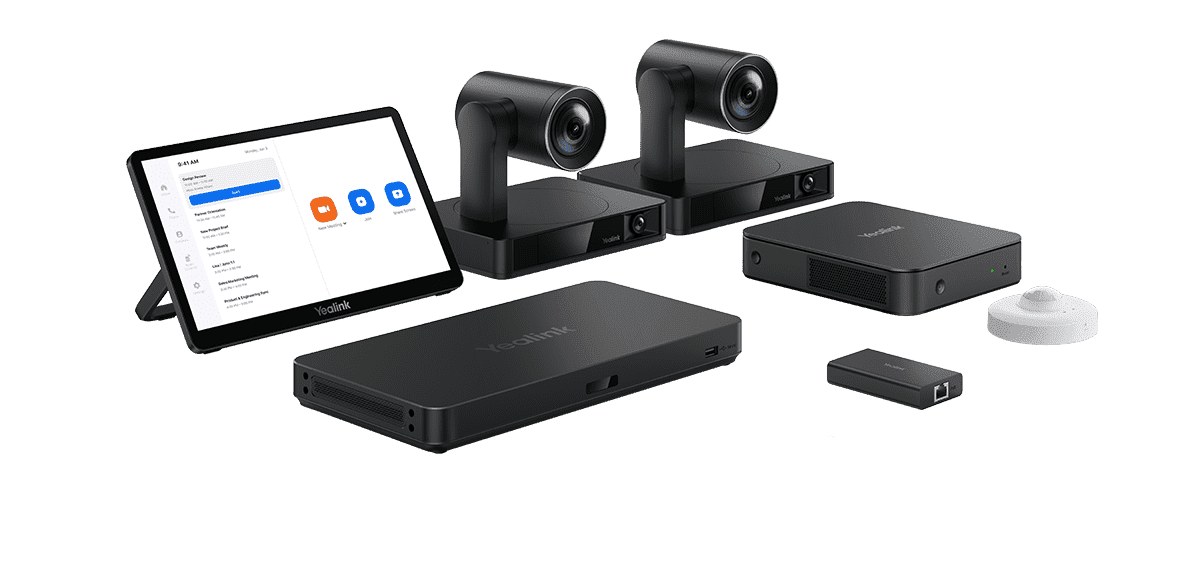

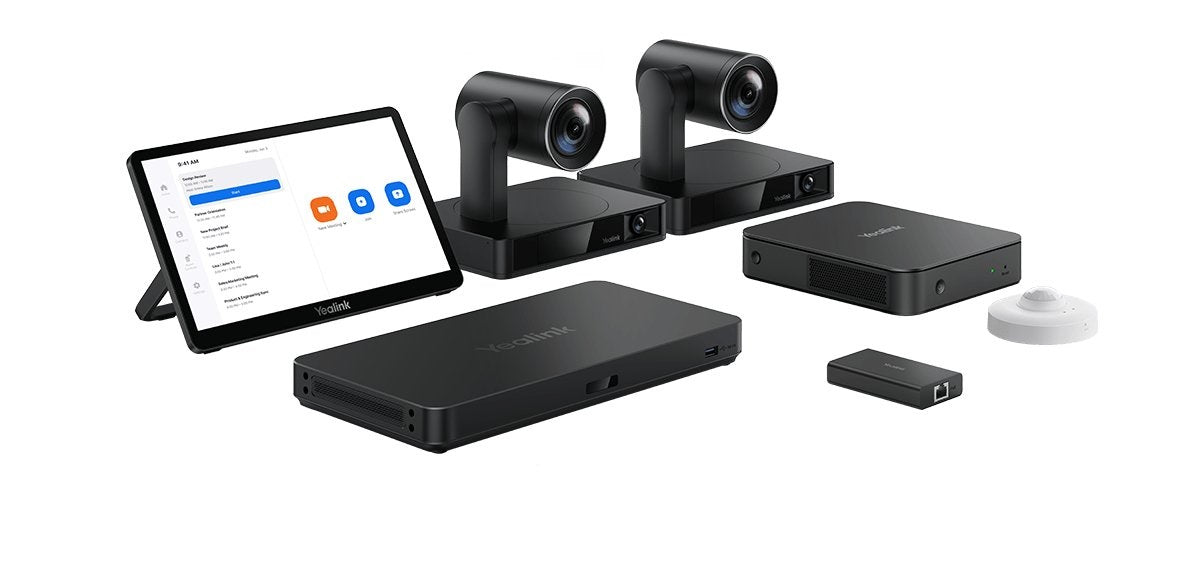

Native Zoom Rooms system for ProAV rooms; 2x UVC86 dual-eye Intellient camera, VCR20 remote control, power adapter wallmount bracket and cables; Yealink MCoreKit-C5, power adapter, cables and wall braket; 1x AVHub; 1x MVC-BYOD-Extender

Specifications

Product Overview
Product Type Zoom Room System
System Components 2x UVC86 dual-eye 4K cameras, AVHub, MVC-BYOD Extender, MCoreKit-C5 mini-PC, VCR20 remote control
Form Factor Modular Conference Room Kit
Video Resolution 3840 x 2160 (4K UHD)
Zoom Capability 20.4x total zoom (12x optical, 1.7x digital)
Recommended Display Screen Size 11.6 inch (touch panel)
Control Device Type Touchscreen Controller (MTouch)
Remote Control Included Yes, VCR20 Remote Control
Power Requirements 100–240V AC, 50–60 Hz
Included Accessories Power adapters, wall mount brackets, cables

Wireless Features
Wi-Fi Standards IEEE 802.11a/b/g/n/ac/ax
Bluetooth Version Bluetooth 5.2
Wireless Connectivity Integrated Wi-Fi and Bluetooth in MCoreKit-C5

Compliance & Origin
Country of Origin China
FCC Certification Yes
CE Certification Yes
RoHS Compliance Yes

Advanced Security Features
Secure Boot Yes
Device Encryption Yes (TPM 2.0 chip in MCoreKit-C5)
Data Transmission Security TLS/SSL encryption
Access Control Admin login with PIN/password protection

Interfaces
HDMI Outputs 2 x HDMI (AVHub)
USB Ports 3 x USB-A 3.0, 1 x USB-C
Camera Interface USB 3.0
Audio Interface RJ45 (for VCM38 microphones), Line in/out 3.5mm
LAN Port 1 x RJ45 10/100/1000 Mbps
USB Device Expansion MVC-BYOD Extender (USB passthrough)
Max Data Transfer Rate 1 Gbps

Physical & Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Relative Humidity (Operating) 10% to 90%, non-condensing
Mounting Options Wall mount
Camera Dimensions (W x H x D) 180 mm × 145 mm × 182 mm (per UVC86 camera)
AVHub Dimensions 196 mm × 151 mm × 24 mm
MCoreKit-C5 Dimensions 168 mm × 123 mm × 38 mm

Cloud Management & Licensing
Default Platform Zoom Rooms (native integration)
Device Management Yealink Device Management Platform (YDMP)
Cloud Management Support Yes (via Zoom and Yealink)
Licensing Requirements Zoom Rooms license required (not included)
Included Cloud Features Native Zoom Room registration, firmware updates
