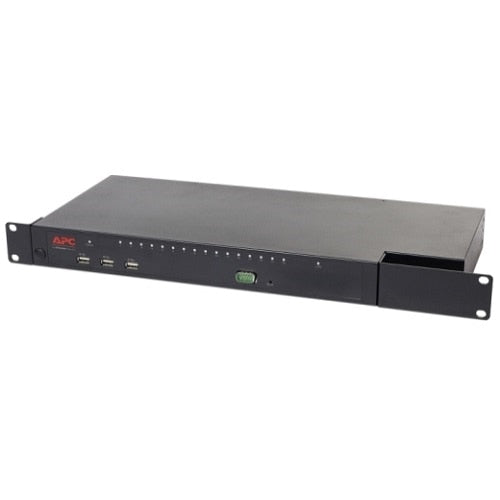

APC KVM 2G Digital/IP Switch, 16-Port, Local & Remote Access

VENDOR: APC Mfg Part#: KVM1116R
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,253.59
$1,253.59
Sale Sold out
MSRP: $1,860.00
Shipping calculated at checkout.
  • 16-port digital/IP KVM switch with virtual media support
  • Supports 1 local and 1 remote user for simultaneous access
  • FIPS 140-2 certified for secure encrypted data communication
  • TAA-compliant, suitable for government procurement standards
  • Manufactured in Taiwan for quality assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for secure government and enterprise environments, thanks to TAA compliance and FIPS 140-2 certification
  • Designed for remote server management, reducing travel and on-site IT costs with IP-based access
  • Supports up to 16 servers and includes virtual media for streamlined remote maintenance and deployments

Product Overview

The APC KVM 2G Digital/IP Switch (Model KVM1116R) enables secure digital and remote server management with support for 1 local and 1 remote user, allowing centralized access to up to 16 servers. With its FIPS 140-2 certification and TAA compliance, it meets federal security standards and regulatory requirements for government deployments. Additional features include virtual media support for streamlined remote operations and remote file transfers. Manufactured in Taiwan, this switch offers a feature-rich, dependable solution for IT professionals managing distributed infrastructure.

Specifications

Product Overview
Product Type KVM over IP Switch
Model KVM1116R
Form Factor 1U Rack-mountable
Number of Ports 16
Users Supported 1 Local / 1 Remote
Virtual Media Support Yes
Supported Platforms Multi-platform (Windows, Linux, UNIX, MacOS)
Hotkey Switching Yes
Integrated Remote Management Yes
Power Requirements 100–240 VAC, 50/60 Hz
Power Consumption 18 W (typical)
Weight 9.04 lbs (4.1 kg)

Wireless Features
Wi-Fi

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
FIPS 140-2 Compliance Yes
RoHS Compliant Yes
Certifications CE, FCC, UL, VCCI, TUV

Advanced Security Features
Encryption 128-bit SSL, RC4 encryption for video
User Authentication Multi-level password security and user access controls
Keyboard/Mouse Buffering Yes, prevents intrusion and key-logging issues
Auto Log-off Yes, adjustable timeout
Firewall Pass-through Yes

Interfaces
Server-side Interface RJ-45 CAT5 for KVM connections (uses server interface module)
User Console Ports 1 x VGA, 1 x USB, 2 x PS/2 (keyboard and mouse)
Network Interface 1 x RJ-45 Ethernet 10/100/1000 Mbps
Console Emulation VGA, USB, PS/2
Video Resolution (local) 1920 x 1080 @ 60 Hz
Video Resolution (remote) 1600 x 1200 @ 60 Hz
Cascade Support Yes (up to 256 servers via cascading)

Physical & Environmental
Dimensions (H x W x D) 1.72 x 17.0 x 9.5 in (43.5 x 432 x 241 mm)
Operating Temperature 32 – 122°F (0 – 50°C)
Storage Temperature -4 – 158°F (-20 – 70°C)
Operating Humidity 0 – 80% RH, non-condensing
Storage Humidity 5 – 90% RH, non-condensing

Cloud Management & Licensing
Remote Management Interface Web-based GUI, SSH, HTTPS
Authentication Methods RADIUS, LDAP, Active Directory
Session Management Yes, with user permission and access restrictions
Audit Logging Yes
Firmware Upgradable Yes (via network)
License Required No license required for basic function
