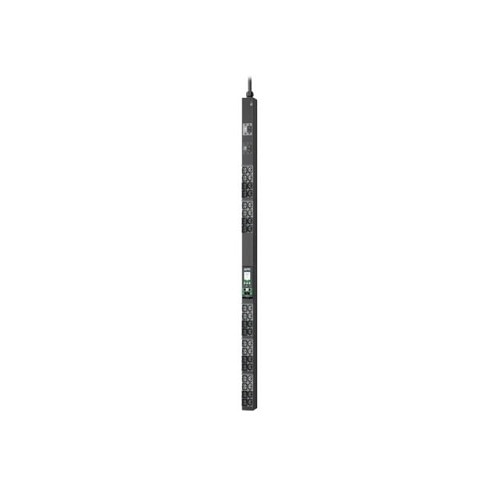

APC NetShelter Rack PDU Advanced, Metered Outlet, 17.3kW, 3PH, 415V, 30A

VENDOR: APC Mfg Part#: APDU10350MO
1 1
Photo is for illustration purposes only. Actual product may be different.
$3,732.47
$3,732.47
Sale Sold out
MSRP: $5,525.00
Shipping calculated at checkout.
  • 17.3kW power capacity with 415V 3-phase input
  • 48 outlet configuration for high-density power distribution
  • IEC 60309 30A (3P+N+PE) input connector
  • Rack/tower form factor with dimensions: 2.2" W x 2.95" D x 70.08" H
  • Compliant with UL 62368-1 safety standards
  • TAA compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-power capacity (17.3kW) suitable for enterprise data centers and demanding IT infrastructure.
  • Metered outlet configuration enables precise monitoring and efficient load balancing across 48 outlets.
  • TAA compliance and UL certification ensure suitability for regulatory environments and government procurement.

Product Overview

The APC NetShelter Rack PDU Advanced is a high-capacity, metered outlet unit designed for enterprise data centers requiring organized, efficient, and scalable power distribution. Supporting a power output of 17.3kW with 3-phase 415V input, this unit is equipped with an IEC 60309 30A (3P+N+PE) connector, delivering reliable power to mission-critical systems across 48 outlets. Its rack/tower form factor and compact dimensions make it suitable for high-density configurations while maintaining space efficiency.

This PDU meets UL 62368-1 safety standards and is TAA compliant, supporting government and regulated deployments. The black enclosure provides a professional aesthetic, and the device includes a 3-year repair or replace support plan. Engineered and manufactured in the United States, the PDU is designed to support scalable infrastructure with metered outlet-level monitoring. Ideal for ensuring uptime in high-demand environments, this PDU helps optimize power utilization while supporting critical IT assets.

Specifications

Product Overview
Product Type Power Distribution Unit (PDU)
Form Factor Rack/Tower
Output Power Capacity 17.3 kW
Input Voltage 415 V (3-phase)
Output Voltage 240 V
Input Connector Type IEC 60309 30 A (3P+N+PE)
Color Black
Mounting Type Vertical Rack-Mountable
Weight 10.6 kg
Number of Outlets 48
Outlet Types IEC C13 x36, IEC C19 x12
Rated Current 30 A
Output Frequency 50/60 Hz

Physical & Environmental
Height 70.08 in (1780 mm)
Width 2.2 in (56 mm)
Depth 2.95 in (75 mm)
Maximum Operating Temperature 60 °C (140 °F)
Minimum Operating Temperature 0 °C (32 °F)
Operating Humidity Range 5% to 95% RH (non-condensing)
Storage Temperature Range -25 °C to 65 °C (-13 °F to 149 °F)
Storage Humidity Range 5% to 95% RH (non-condensing)
Maximum Elevation (Operating) 3000 m

Cloud Management & Licensing
Remote Management Protocols SNMPv1, SNMPv3, Telnet, SSH, HTTP, HTTPS
Graphical Web Interface Yes
Firmware Upgrade Capable Yes
Cloud-Based Management Platform APC EcoStruxure IT Ready
Licensing Requirements None for basic functions, optional for advanced features

Interfaces
Network Management Interface 10/100 Ethernet
Serial Communication Port RJ-45 (RS-232)
USB Ports 1 x USB Type-A, 1 x USB Type-B
Environmental Monitoring Support Yes, via accessory ports
Sensor Ports 2 (for temperature/humidity sensors)

Compliance & Origin
Compliance Standards UL 62368-1, CSA, TUV, CE, NOM, EAC
Country of Origin United States
TAA Compliant Yes
RoHS Compliant Yes
Certifications cUL, CE Mark, VDE, IRAM

Advanced Security Features
User Authentication Local user database or remote LDAP/AD servers
Remote Access Security SSL/TLS Encryption
SNMPv3 Support Yes
Access Logging Yes
