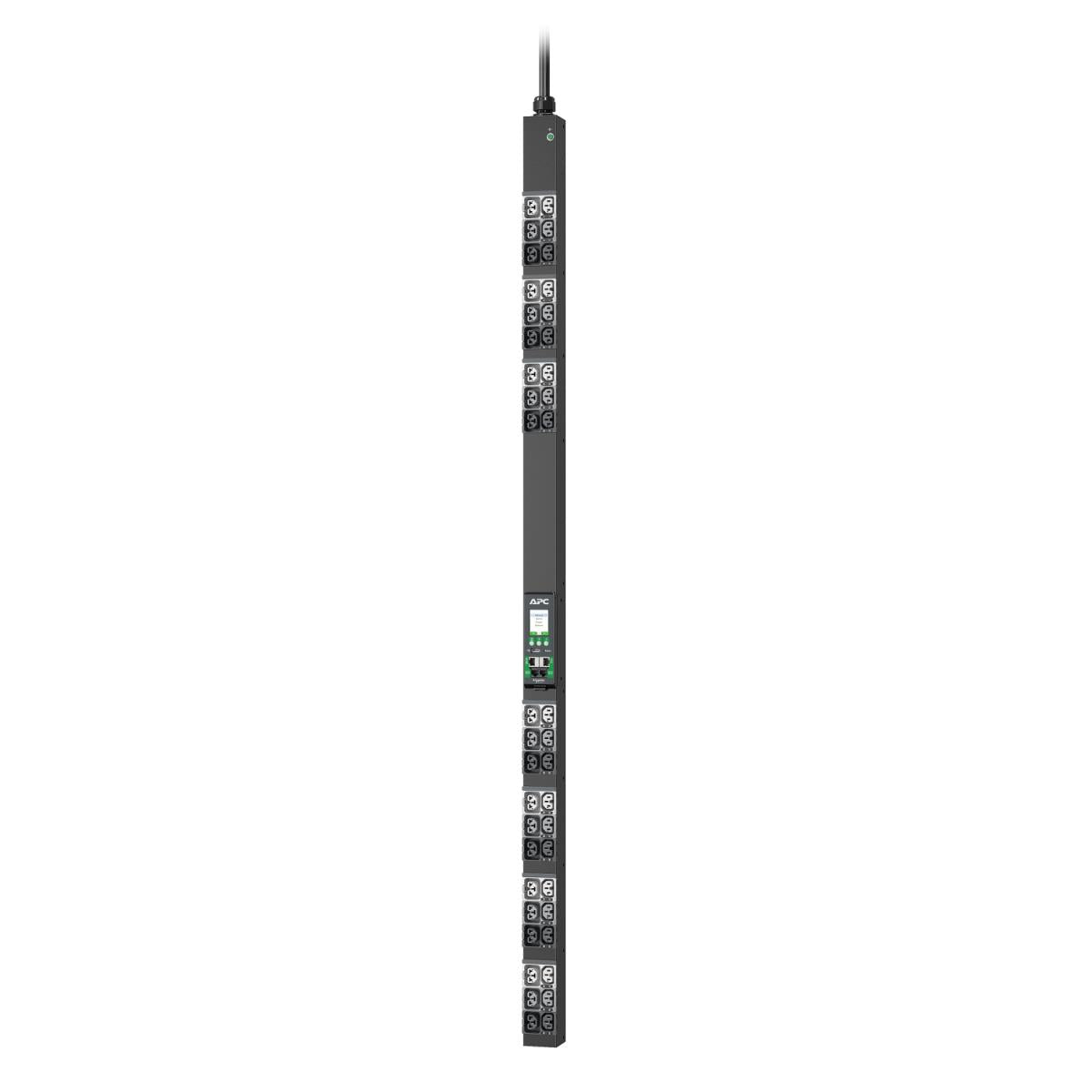

APC NetShelter Rack PDU Metered, 11.5kW 3PH 415V 42-Outlet

VENDOR: APC Mfg Part#: APDU10250ME
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,455.78
$1,455.78
Sale Sold out
MSRP: $2,155.00
Shipping calculated at checkout.
  • Metered PDU with 11.5kW power output for high-density deployments
  • 415V 3-phase input voltage via IEC 60309 20A 3P + N + PE connector
  • 42 total outlets supporting multiple rack-mount devices
  • Vertical form factor with compact 2.2" width and 58.66" height
  • UL 62368-1 compliant and TAA-compliant for regulated environments
  • Includes 3-year repair or replace support coverage

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports energy monitoring and overload prevention with its metered design
  • TAA-compliance and UL certification make it suitable for government and regulated sectors
  • 42 outlets provide maximum device support in high-density server racks

Product Overview

The APC NetShelter Rack PDU Advanced APDU10250ME is a high-capacity, metered power distribution unit delivering 11.5kW from a 415V 3-phase input. It includes 42 outlets and a robust IEC 60309 20A connector, offering reliable power delivery and real-time monitoring. The compact black enclosure is built for vertical rack install and meets UL 62368-1 and TAA standards. Ideal for high-density IT environments seeking controlled and scalable power management, it comes with a 3-year repair or replace warranty.

Specifications

Product Overview
Product Type Metered Power Distribution Unit (PDU)
Form Factor Vertical Rack Mount (0U)
Input Voltage 415 V 3-phase
Output Voltage 240 V
Maximum Power Capacity 11.5 kW
Rated Input Current 20 A
Mounting Type Toolless mounting supported on 0U vertical mounting brackets
Color Black
Warranty 3 years repair or replace

Wireless Features
Wireless Capability No

Compliance & Origin
Compliance Standards UL 62368-1, RoHS, REACH, EAC, PSE, VCCI
Certifications CE, TUV, cULus
TAA Compliant Yes
Country of Origin United States

Advanced Security Features
User Authentication Methods RADIUS, LDAP, Local User Authentication
Access Control Role-based access control (RBAC)
Data Encryption SSL, SSH
Logging and Monitoring Event and data logging with timestamp

Interfaces
Input Connector Type IEC 60309 20 A (3P + N + PE)
Number of Outlets 42
Outlet Type 36 x C13, 6 x C19
Network Interface 1 x 10/100 Ethernet RJ45
Serial Interface 1 x RJ12 RS-232 (Serial)
USB Ports 1 x USB Type A (firmware upgrade)
Display Type Local digital current meter
Communication Protocols SNMP v1/v2c/v3, Telnet, HTTP/HTTPS, SSH, FTP

Physical & Environmental
Height 58.66 in (1490 mm)
Width 2.2 in (56 mm)
Depth 2.17 in (55 mm)
Weight 12.57 lb (5.7 kg)
Operating Temperature –5 to 60 °C (23 to 140 °F)
Storage Temperature –25 to 65 °C (–13 to 149 °F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity 5 to 95% RH (non-condensing)
Maximum Elevation (Operating) 3000 m
Maximum Elevation (Storage) 15000 m

Cloud Management & Licensing
Management Interface Web UI, SNMP, Command Line Interface
Remote Power Monitoring Yes
Firmware Upgradeable Yes, via USB or network
APC EcoStruxure IT Enabled Yes
