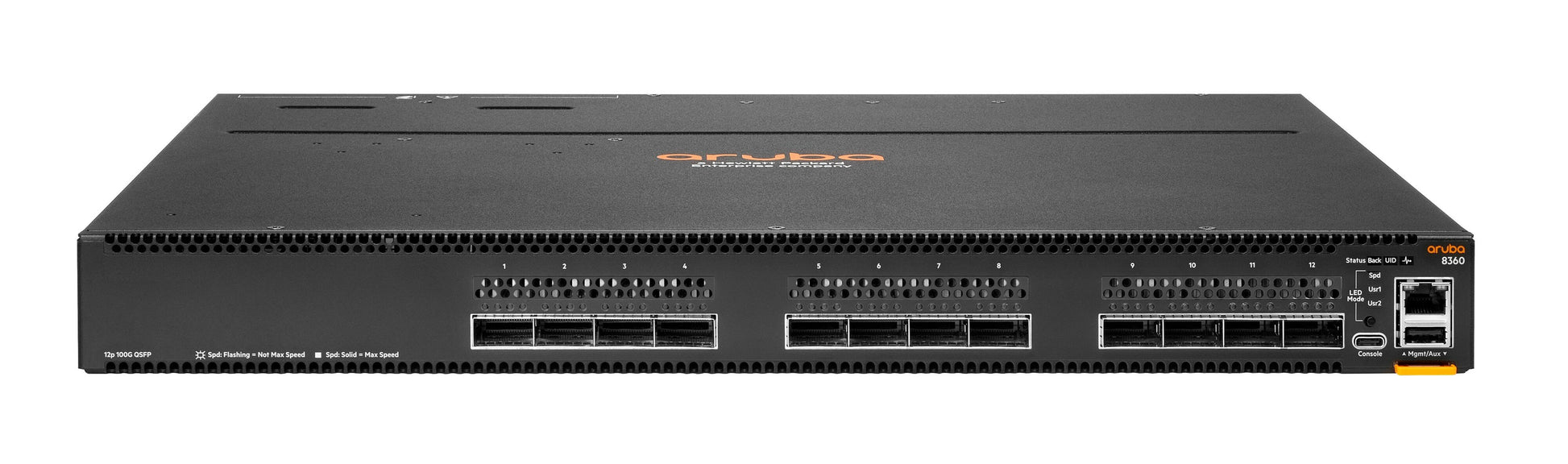

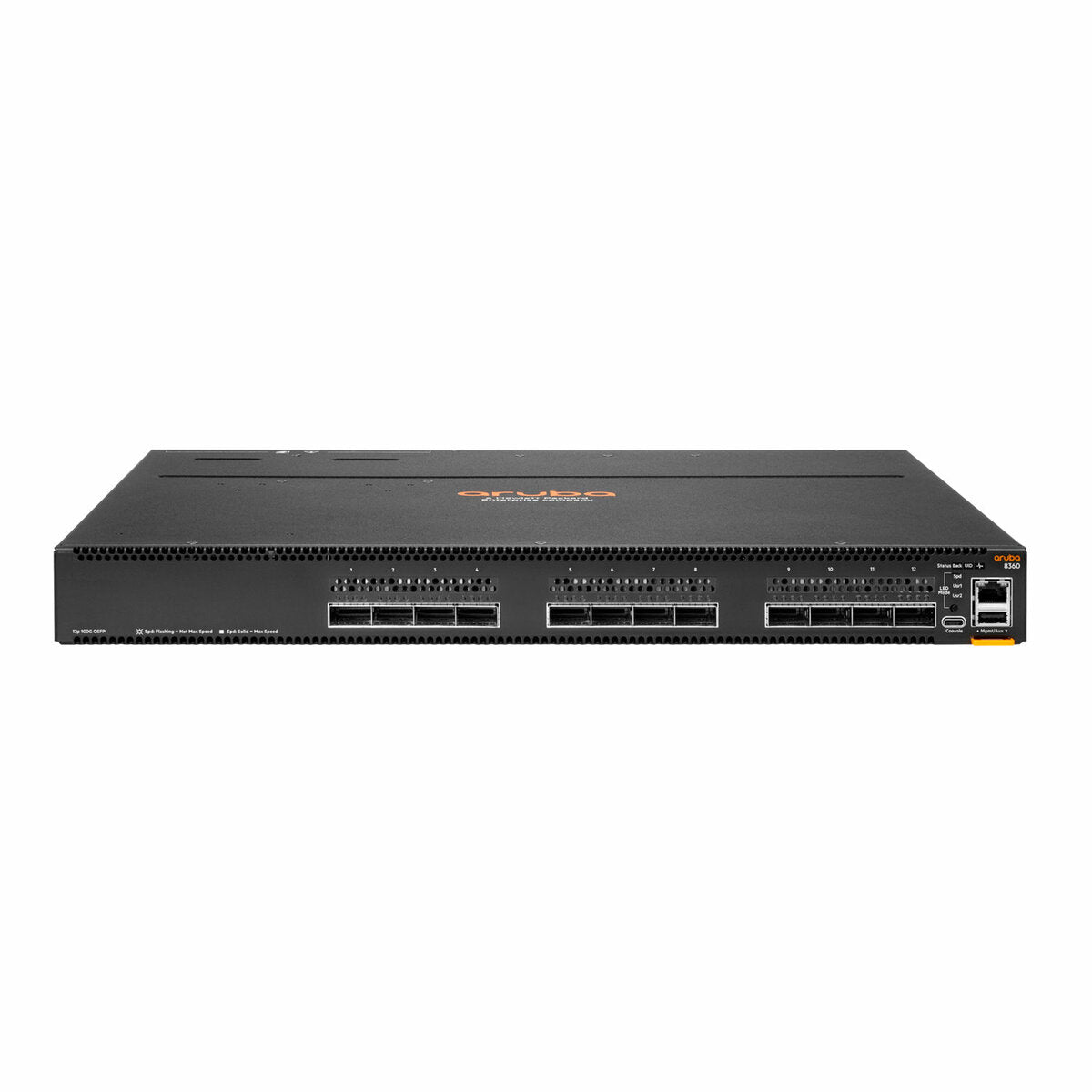

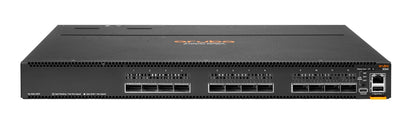

Aruba 8360-12C Pwr2Prt3F2PS Bdl TH en - 12-Port 40 GbE Switch

VENDOR: HP Mfg Part#: JL709A#AKL UPC#: 190017405926
1 4
Photo is for illustration purposes only. Actual product may be different.
$28,513.05
$28,513.05
Sale Sold out
MSRP: $36,015.00
Shipping calculated at checkout.
  • - 12-port configuration supporting 40 Gigabit Ethernet
  • - Total data throughput of 40GBps
  • - Comes with 16GB memory, upgradeable to 32GB
  • - TAA compliant for government or regulated use
  • - Manufactured in Singapore

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-speed 40GbE and 40GBps throughput supports enterprise-grade performance for data-intensive applications.
  • TAA compliance ensures suitability for federal and government procurement standards.
  • Scalable memory architecture (16GB to 32GB) enables future-ready network expansion.

Product Overview

The Aruba 8360-12C Pwr2Prt3F2PS Bundle TH en is an advanced Layer 3 switch designed by HP to meet enterprise networking demands. With 12 ports of 40 Gigabit Ethernet and 40GBps throughput, it is built for high-performance data centers. The unit includes 16GB memory and supports upgrades to 32GB, enabling scalability for complex networks. TAA compliance and its origin in Singapore make it suitable for regulated deployments. Its versatility and compatibility with Aruba's ecosystem make it a strategic investment for growing infrastructures.

Specifications

Product Overview
Product Type Layer 3 Managed Ethernet Switch
Form Factor 1U Rack-mountable
Weight 8.4 kg (18.52 lb)
Power Requirements 100–240V AC, 50/60 Hz
Power Consumption (Typical) 145 W
Power Consumption (Maximum) 240 W
Memory (Installed) 16 GB DDR4 SDRAM
Memory (Maximum Supported) 32 GB DDR4 SDRAM
Storage 32 GB internal eMMC
Throughput 960 Mpps
Switching Capacity 960 Gbps

Physical & Environmental
Dimensions (W x D x H) 44.04 x 41.24 x 4.39 cm (17.34 x 16.23 x 1.73 in)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% (non-condensing)
Acoustic Noise 47.9 dB
Airflow Front-to-back, back-to-front (configurable)

Cloud Management & Licensing
Cloud Management Supported via Aruba Central
Management Interface Web GUI, CLI, REST API, SNMP v2/v3
Software License Base switch software included; optional software licenses for advanced features
Monitoring Tools Aruba NetEdit, Aruba Network Analytics Engine (NAE)

Interfaces
Uplink Ports 12 x 40 GbE QSFP+
Management Ports 1 x RJ-45 console port, 1 x USB, 1 x Ethernet OOBM
Data Transfer Rate 40 Gbps per port (max)
Expansion Slots 12 x QSFP+ ports
Stacking Ports Supported via front-panel QSFP+

Compliance & Origin
TAA Compliant Yes
Country of Origin Singapore
Certifications UL, CSA, CB, CE, FCC Class A, VCCI, BSMI, RCM
Environment Standards RoHS, WEEE, REACH

Advanced Security Features
Access Control 802.1X, MAC authentication, Web-based authentication
Security Features Dynamic segmentation, role-based access control (RBAC), ACLs
MACsec (802.1AE) Support Yes
RADIUS / TACACS+ Yes
Secure Management HTTPS, SSH, SNMPv3
