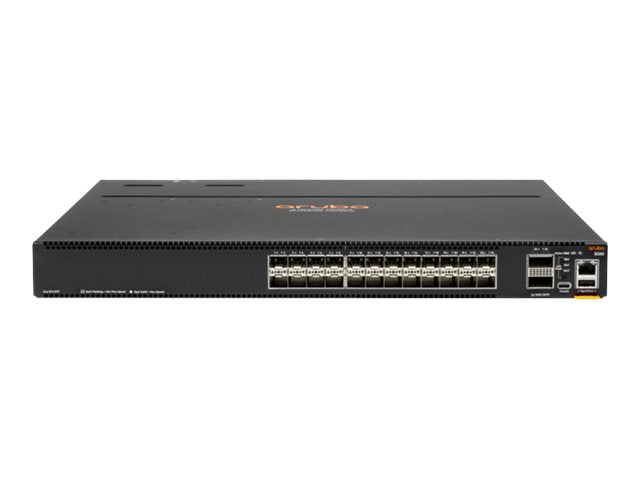

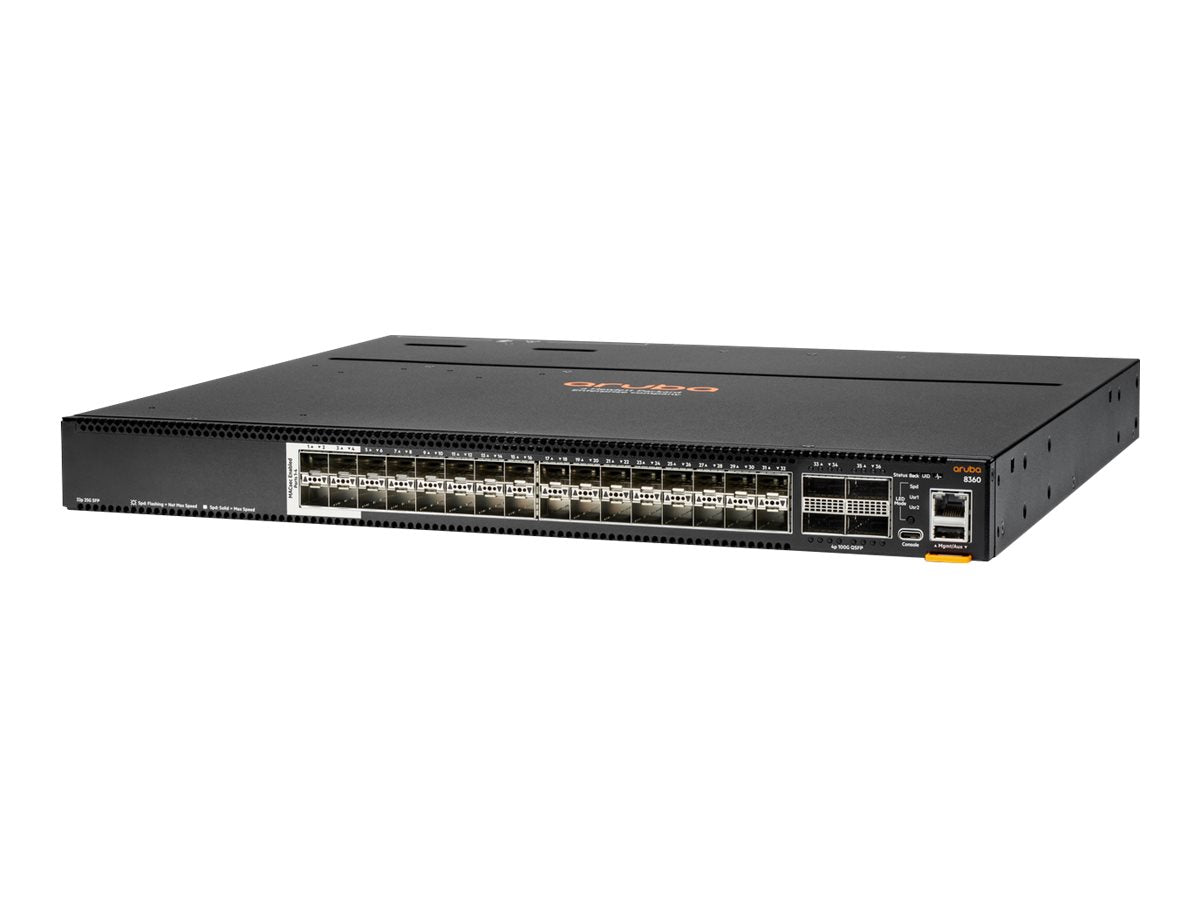

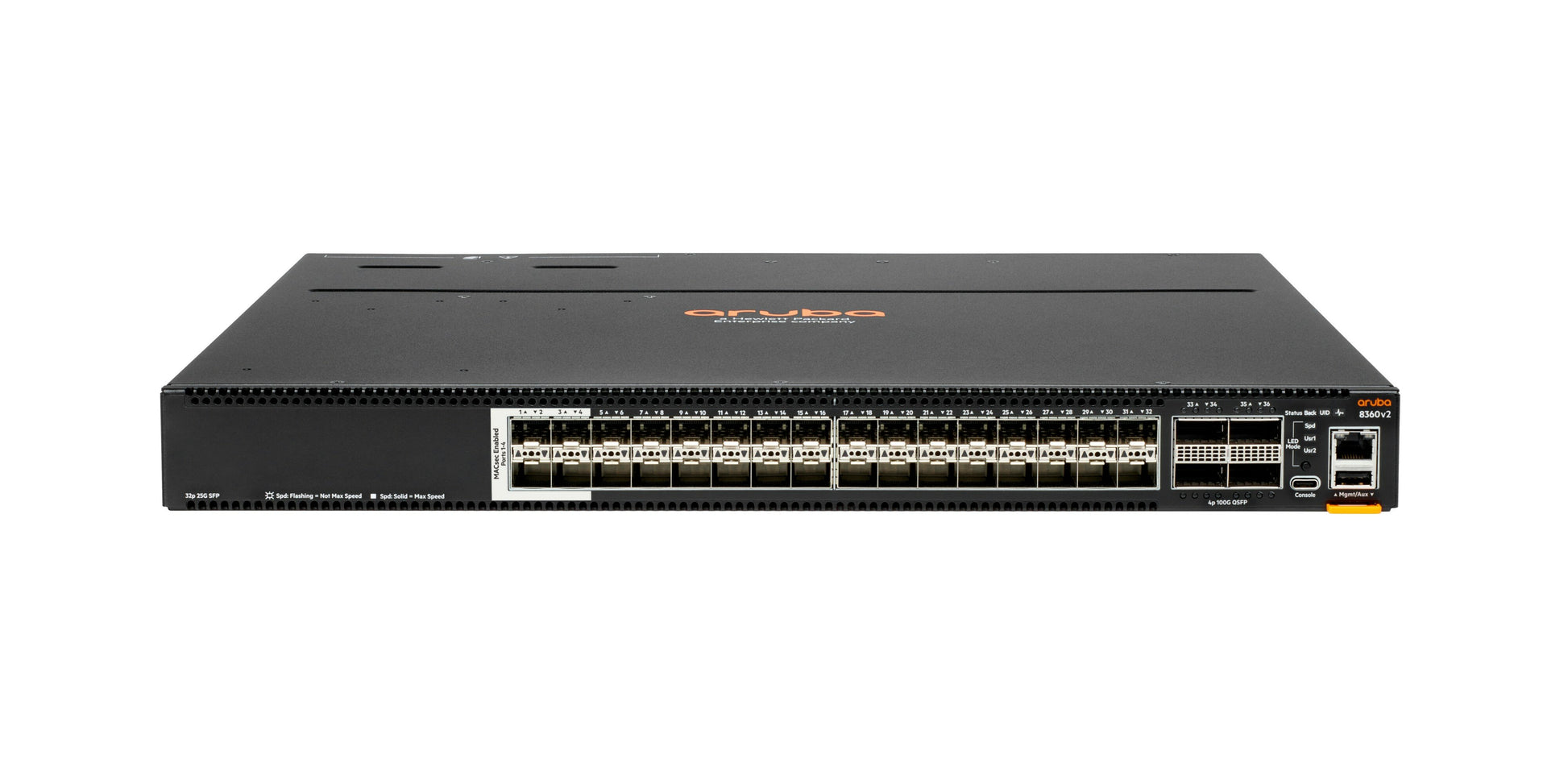

Aruba CX 8360-24XF2C Managed 24-Port Switch (JL710A#ACD)

VENDOR: HP Mfg Part#: JL710A#ACD UPC#: 190017406091
1 5
Photo is for illustration purposes only. Actual product may be different.
$25,061.24
$25,061.24
Sale Sold out
MSRP: $31,655.00
Shipping calculated at checkout.
  • 24 x 1/10 GbE SFP+ ports and 2 x 40/100 GbE QSFP+ uplinks
  • 880 Gbps switching capacity with 1 µs latency
  • Advanced Layer 3 routing protocols including BGP, OSPF, and PIM
  • N+1 hot-pluggable redundant power supplies and 3 fan trays included
  • MACsec encryption, Jumbo frame support (9KB), and sFlow monitoring
  • Comprehensive management via SNMP, CLI, SSH, and REST API

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for core and aggregation use in demanding enterprise or data center environments with high-speed uplinks up to 100GbE.
  • Delivers enterprise-grade redundancy and availability with hot-swappable fans, redundant power supplies, and 880 Gbps non-blocking throughput.
  • Backed by a limited lifetime warranty and full TAA compliance, ensuring long-term value and procurement standards alignment.

Product Overview

The Aruba CX 8360-24XF2C (JL710A#ACD) is an enterprise-class Layer 3 switch tailored for high-performance networking in core, aggregation, and top-of-rack data center environments. Featuring 24 SFP/SFP+ ports and two multi-speed QSFP+/QSFP28 uplinks supporting 40/100 GbE, this 1U rack-mountable unit offers a switching capacity of 880 Gbps and extremely low latency at just 1 microsecond, suitable for latency-sensitive applications. It includes three hot-swappable fan trays and supports redundant, hot-pluggable power supplies in an N+1 configuration, emphasizing hardware reliability and service continuity.

With robust Layer 3 routing protocols such as BGP-4, OSPFv3, PIM, and policy-based routing, along with comprehensive IPv4/IPv6 dual stack support, this switch provides scalable and secure multi-layer network control. Advanced features such as jumbo frame support (9KB), QoS, MACsec encryption, sFlow, MSTP, VXLAN, and VSX architecture align with modern IT requirements. It utilizes a resilient Aruba Network Operating System and offers extensive management protocols including SNMP, SSH, CLI, and REST APIs. Operating in standard temperature and humidity ranges, this TAA-compliant model meets a broad set of global electrical and EMC compliance certifications.

Backed by a limited lifetime warranty and engineered with enterprise-grade reliability, the Aruba CX 8360-24XF2C is an ideal choice for organizations seeking high-scale, secure, and manageable switching infrastructure to support digital transformation, cloud adoption, and sustained network growth.

Specifications

Product Overview
Type Managed Layer 3 Switch
Form Factor 1U rack-mountable with front-to-back airflow
Weight 17.79 lbs
Power Requirements AC 120/230 V (47 - 63 Hz)
Power Device Internal power supply - hot-plug
Power Provided 550 Watt
Power Redundancy Yes
Power Redundancy Scheme N+1
MTBF 375668 hours
Processor 1.8 GHz
RAM 16 GB
Flash Memory 32 GB
Installed Fans 3 hot-swappable fan trays included
Switching Capacity 880 Gbps
Throughput 2 Mbps
Latency 1 µs
Jumbo Frame Support 9KB

Cloud Management & Licensing
Cloud Management Interface Web UI, CLI, REST API, SNMP
Remote Management Protocols SNMP, SNMPv3, CLI, SSH, REST API, RMON, ICMP, SFTP, TFTP, NTP
Licensing Model Perpetual OS with optional cloud-based features

Physical & Environmental
Dimensions (W x D x H) 17.4 in x 16 in x 1.7 in
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Operating Range 15% to 95% (non-condensing)
Humidity Storage Range 15% to 95% (non-condensing)

Interfaces
Total Ports 24 x SFP/SFP+ + 2 x QSFP+/QSFP28
SFP/SFP+ Ports 24 x 1G/10G
QSFP+/QSFP28 Ports 2 x 40G/100G
Additional Interfaces 1 x serial console, 1 x USB-C console, 1 x RJ-45 management, 2 x USB
Port Aggregation Protocol IEEE 802.3ad (LACP)
Interfaces Bandwidth 100G/40G/10G speeds

Advanced Security Features
MACsec Encryption Supported
Authentication Methods SSH, Secure Shell v2, RADIUS, TACACS+
Encryption Standard FIPS 140-2 compliant
Access Control ACL support
Supported Security Features DHCP snooping, port mirroring, IGMP snooping, Loopback detection, BPDU Guard

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Compliant Standards IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.1AX, RoHS, ICES-003 Class A, UL 60950-1, VCCI Class A, EN 55032:2015, CISPR 32 Class A, EN 60950-1:2006 + A1:2010 + A11:2009 + A2:2013 + A12:2011, IEC 62368-1:2014
