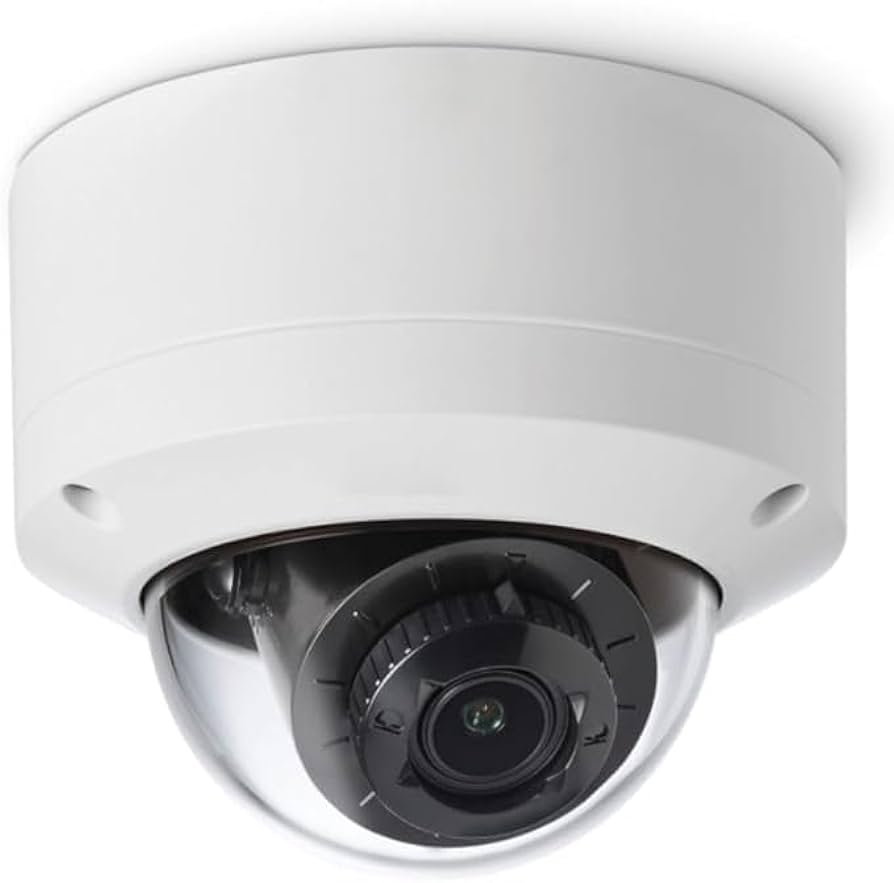

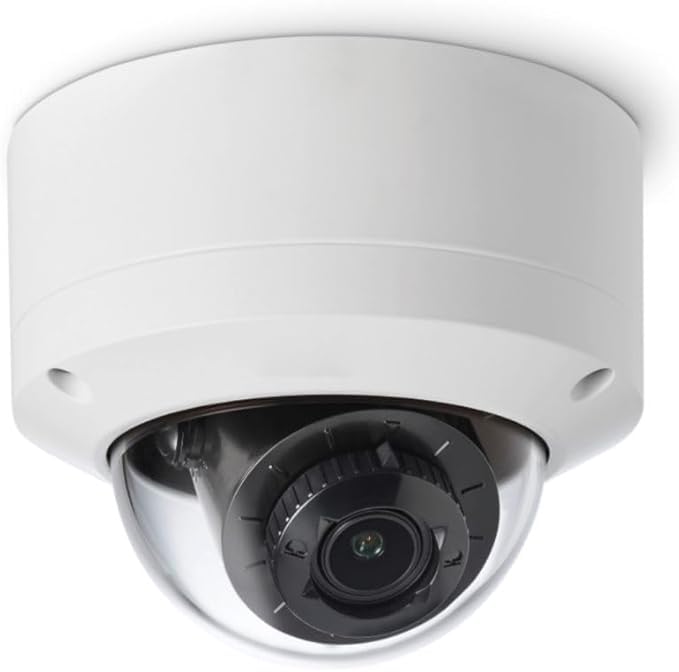

Bosch NDE-5703-A-GOV Fixed Dome 5MP HDR IP Camera

VENDOR: BOSCH Mfg Part#: NDE-5703-A-GOV UPC#: 800549389402
1 2
Photo is for illustration purposes only. Actual product may be different.
$1,000.00
$1,000.00
Sale Sold out
Shipping calculated at checkout.
  • 5 MP effective sensor resolution for high-detail image capture
  • 3.2–10.5 mm fixed-focus lens for versatile field-of-view options
  • High Dynamic Range (HDR) for enhanced image quality in variable lighting
  • IP66-rated enclosure for weatherproof outdoor operation
  • TAA-compliant and manufactured in Taiwan for regulated environments
  • Dome form factor for secure, low-profile mounting

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers superior image clarity with 5MP resolution and HDR to enhance visibility in challenging lighting.
  • Engineered for durability in tough conditions, with an IP66 rating and weather-resistant construction for reliable outdoor security.
  • Fully TAA-compliant, making it a trusted choice for government contracts and regulated industries.

Product Overview

The Bosch NDE-5703-A-GOV Fixed Dome IP camera delivers 5MP high-resolution imaging with High Dynamic Range (HDR) for enhanced performance in varied lighting conditions. Its 3.2–10.5 mm fixed-focus lens ensures flexible coverage of wide or narrow surveillance areas. Designed with an IP66 rating, it is construction-grade weatherproof and suitable for outdoor use. The unit is TAA-compliant, meeting government procurement standards, and is manufactured in Taiwan to uphold strict quality controls. This camera is ideal for demanding security applications that require durability, high imaging performance, and regulatory compliance.

Specifications

Product Overview
Type IP Security Camera
Camera Type Dome
Image Sensor 1/2.9-inch CMOS
Effective Sensor Resolution 5 MP
Maximum Resolution 3072 x 1728
Frame Rate 30 fps (at 5MP)
High Dynamic Range (HDR) Yes
Day/Night Capability Yes with IR cut filter
IR Illumination Built-in IR LEDs, up to 30 m (98 ft)
Lens Type Motorized varifocal lens
Focal Length 3.2–10.5 mm
Aperture F1.6 – F4.5
Field of View (Horizontal) 31° – 100°
Video Compression H.265, H.264, MJPEG
Power Requirements PoE (IEEE 802.3af Class 3)
Power Consumption Max. 7.3 W
Form Factor Fixed Dome
Weight Approximately 0.63 kg (1.4 lb)

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliance Yes
Certifications FCC, CE, UL, WEEE, RCM
RoHS Compliance Yes

Advanced Security Features
Video Encryption TLS 1.2, AES-256
User Access Control Multi-level with password protection
Secure Boot Yes
Firmware Signing Yes
Data Protection Layer Bosch Trusted Platform Module (TPM)

Interfaces
Network Interface 10/100 Base-T Ethernet, RJ-45
Video Streaming Multiple configurable streams
Edge Storage microSD card slot (up to 2 TB)
Alarm I/O 1 input / 1 output
Audio Interface 1 input / 1 output (line-level)

Physical & Environmental
Weather Rating IP66
Impact Resistance IK10
Operating Temperature Range -30°C to +55°C (-22°F to +131°F)
Storage Temperature Range -40°C to +70°C (-40°F to +158°F)
Operating Humidity 5% to 93% (non-condensing)
Housing Material Aluminum
Dimensions (Ø x H) 145 mm x 108 mm (5.71 in x 4.25 in)

Cloud Management & Licensing
Management Interface Bosch Video Management System (BVMS), web browser
ONVIF Compliance Profile S, G, T
Edge Analytics Essential Video Analytics included
