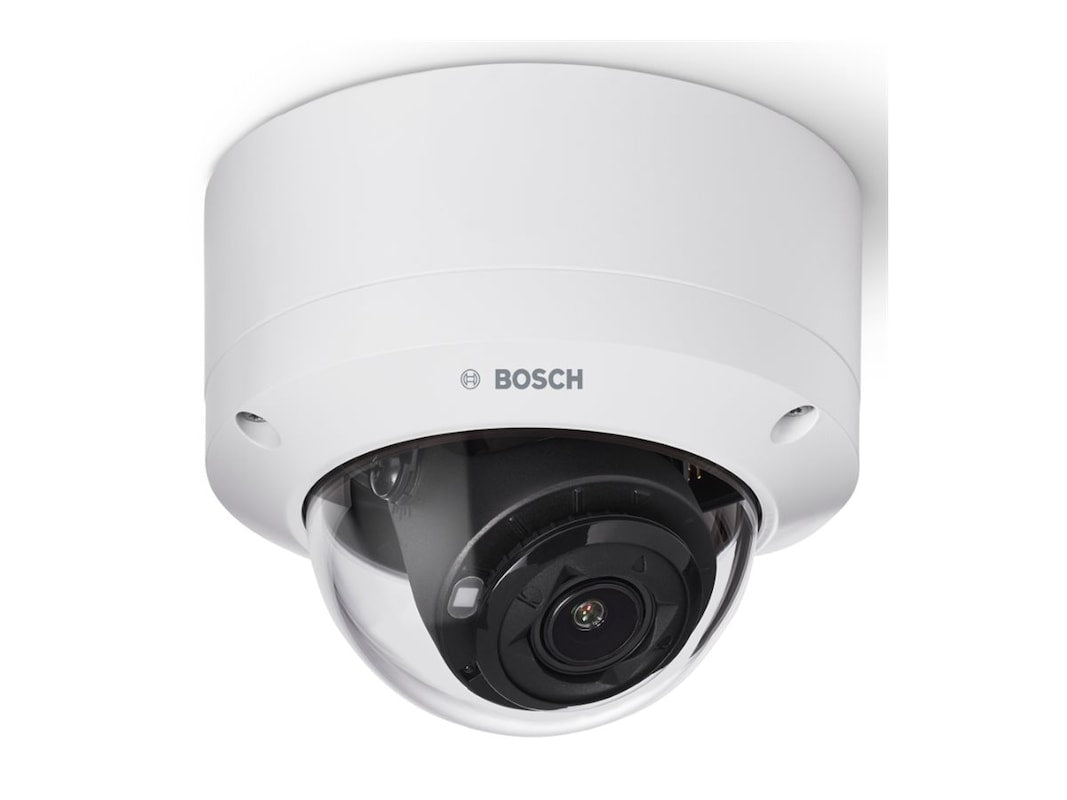

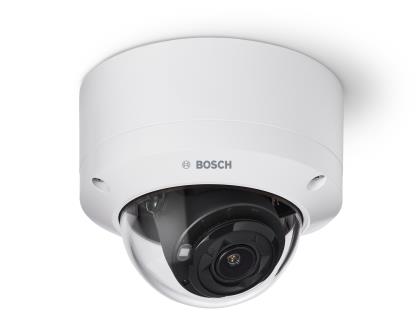

BOSCH NDV-5704-AL-GOV Fixed Dome 8MP HDR IR Camera

VENDOR: BOSCH Mfg Part#: NDV-5704-AL-GOV UPC#: 800549389341
1 2
Photo is for illustration purposes only. Actual product may be different.
$1,173.00
$1,173.00
Sale Sold out
Shipping calculated at checkout.
  • 8MP HDR imaging sensor for high-quality video in varied lighting
  • 3.2–10.5 mm varifocal lens for flexible installation
  • Integrated infrared (IR) support for night visibility
  • Input/Output (I/O) support for system integration
  • TAA compliance suitable for government procurement
  • Manufactured in Taiwan for quality assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • TAA compliance makes it an ideal choice for government and federally funded projects.
  • High-resolution HDR video and IR support ensure reliable 24/7 surveillance performance.
  • Flexible 3.2–10.5 mm lens and I/O integration provide deployment versatility in complex environments.

Product Overview

The BOSCH NDV-5704-AL-GOV is a robust fixed dome IP camera engineered for professional-grade surveillance. Featuring an 8MP HDR image sensor, the camera delivers crisp, detailed video even in challenging lighting conditions. Equipped with a 3.2–10.5 mm varifocal lens and infrared (IR) support, it ensures reliable day and night performance. Its I/O capabilities support integration with external systems for enhanced functionality.

Tailored for mission-critical environments, the NDV-5704-AL-GOV is TAA compliant, making it a strategic choice for governmental deployments. Manufactured in Taiwan, it benefits from consistent quality assurance. With support for HDR and lens flexibility, it suits diverse installation needs, enabling optimal coverage with high image clarity across urban and infrastructure protection scenarios.

Specifications

Product Overview
Product Type Fixed Dome IP Camera
Image Sensor 1/1.8-inch 8MP CMOS
Maximum Resolution 3840 x 2160 (4K UHD)
HDR Support Yes
Lens Type Motorized varifocal
Focal Length 3.2 – 10.5 mm
Day/Night Functionality True Day/Night with IR-cut filter
Infrared Illumination Range Up to 40 meters (131 feet)
Form Factor Dome
Power Requirements PoE (IEEE 802.3af Class 3) or 12V DC
Power Consumption Up to 12.95 W
Weight Approx. 1.14 kg (2.5 lbs)

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, UL, cUL, RCM, EAC, BSMI, IP66, IK10
Safety Standard EN 60950-1, IEC 60950-1

Advanced Security Features
Video Analytics Essential Video Analytics
Camera Tamper Detection Yes
Privacy Masking Yes
Data Encryption TLS 1.2, HTTPS, SRTP
User Authentication Password protection, IEEE 802.1X, SAML support

Interfaces
Network Interface RJ-45 Ethernet 10/100 Mbps
Video Compression H.265, H.264, MJPEG
Audio Input 1 x Line in
Audio Output 1 x Line out
Alarm I/O 2 inputs / 1 output
Video Streaming Multiple configurable streams

Physical & Environmental
Housing Material Aluminum
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Storage Temperature -40°C to +70°C (-40°F to 158°F)
Humidity (Operating) 5% to 93% RH (non-condensing)
Weather Rating IP66
Impact Protection IK10
Dimensions (Ø x H) 160 mm x 137 mm (6.3 in x 5.4 in)
Mounting Options Surface, Pendant, Wall (via accessories)
Built-in Heater Yes, for extreme temperatures

Cloud Management & Licensing
Management Software Bosch Video Management System (BVMS), Remote Portal
ONVIF Compliance Profile S, G and T
Firmware Upgrade Remote firmware update supported
