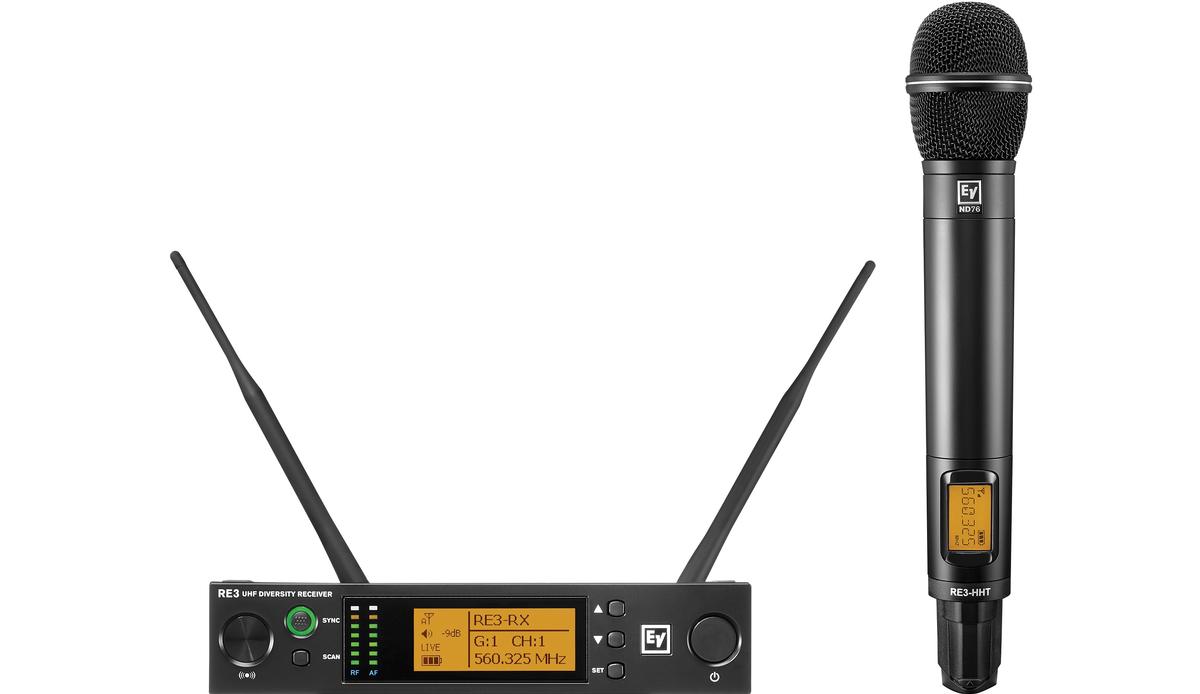

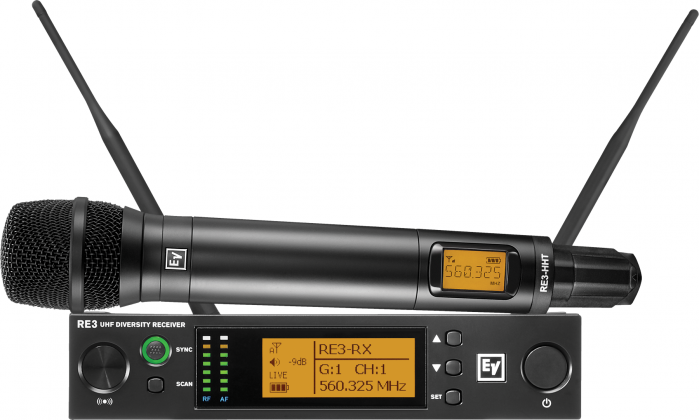

Bosch RE3-RE420-5L Handheld Set with RE420 Head 488-524 MHz

VENDOR: BOSCH Mfg Part#: RE3-RE420-5L UPC#: 800549898430
1 3
Photo is for illustration purposes only. Actual product may be different.
$596.91
$596.91
Sale Sold out
MSRP: $937.00
Shipping calculated at checkout.
  • Operates on UHF band 488–524 MHz

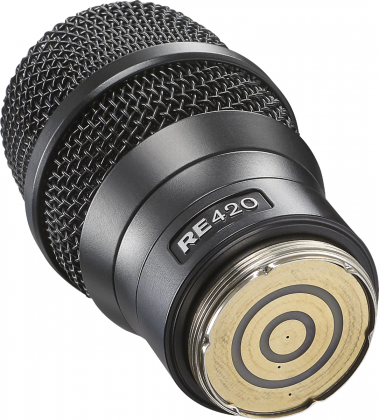

  • Equipped with high-fidelity RE420 microphone head
  • Manufactured in Taiwan
  • TAA compliant for regulated applications

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for professional AV use with reliable UHF operation across 488–524 MHz
  • Includes industry-recognized RE420 head for superior audio fidelity
  • TAA compliance makes it suitable for government and institutional procurement

Product Overview

The Bosch RE3-RE420-5L handheld set combines the high-performance RE420 microphone head with a wireless system operating in the 488–524 MHz UHF band. Manufactured in Taiwan and TAA compliant, it's ideal for government and professional AV applications. Designed for clear audio capture, noise isolation, and reliable transmission, this set supports performance-critical environments like live stages and broadcasting.

Specifications

Product Overview
Product Type Wireless handheld microphone system
Microphone Type Condenser handheld microphone
Microphone Head Bosch RE420
Wireless System Series RE3
Form Factor Handheld transmitter with rack-mountable receiver
Polar Pattern Supercardioid
Transducer Type True condenser
RF Output Power 10 mW and 50 mW selectable
Power Requirements 2 AA batteries (for handheld), external power supply for receiver
Battery Life Up to 10 hours
Weight (Transmitter) Approx. 312 g (with batteries)
Weight (Receiver) Approx. 1.08 kg

Wireless Features
Frequency Band UHF 488–524 MHz
Bandwidth 36 MHz
Channel Count Up to 22 compatible channels per band
Modulation Digital-predictive diversity
Squelch Type Pilot tone and noise mute
Antenna Type Detachable 1/4-wave antennas
Latency 1.9 ms

Compliance & Origin
Country of Origin Taiwan
TAA Compliance Yes
Certifications FCC Part 74, IC certified
RoHS Compliance Yes

Advanced Security Features
Encryption
Interference Immunity Diversity reception with adaptive switching

Interfaces
Antenna Connectors 2x BNC (50 Ohm)
Analog Audio Outputs 1x XLR balanced, 1x 1/4" unbalanced
Sync Interface Infrared (IR) sync from receiver to transmitter
Control Interface Front panel controls and LCD display
Audio Frequency Response 45 Hz – 18 kHz

Physical & Environmental
Transmitter Dimensions 257 × 51 mm (length × diameter)
Receiver Dimensions 212 × 44 × 206 mm (W × H × D)
Operating Temperature Range 0°C to +50°C
Storage Temperature Range -20°C to +70°C
Relative Humidity (operating) 5% to 95% (non-condensing)

Cloud Management & Licensing
Remote Management Interface
License Requirements License-free operation in compliant regions
