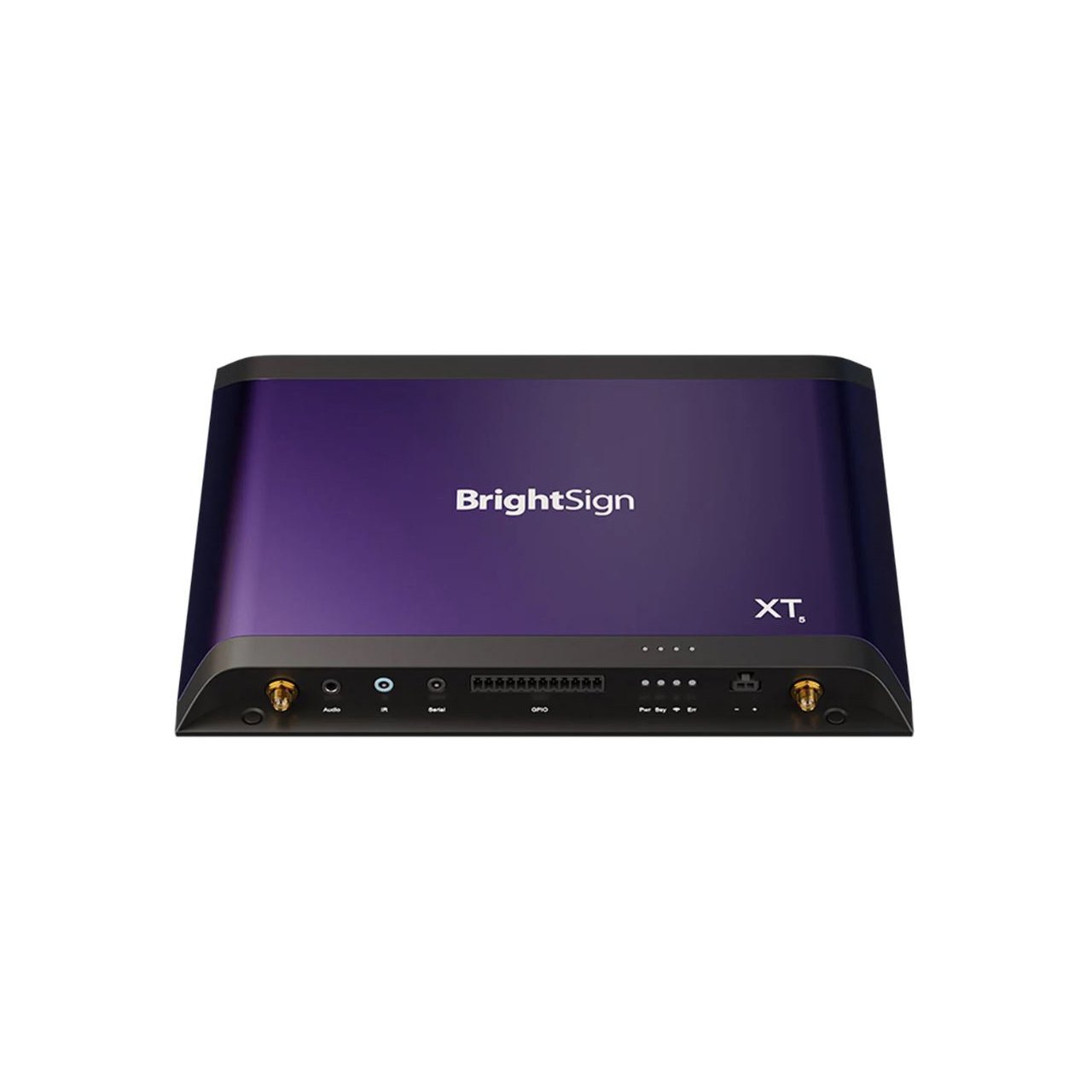

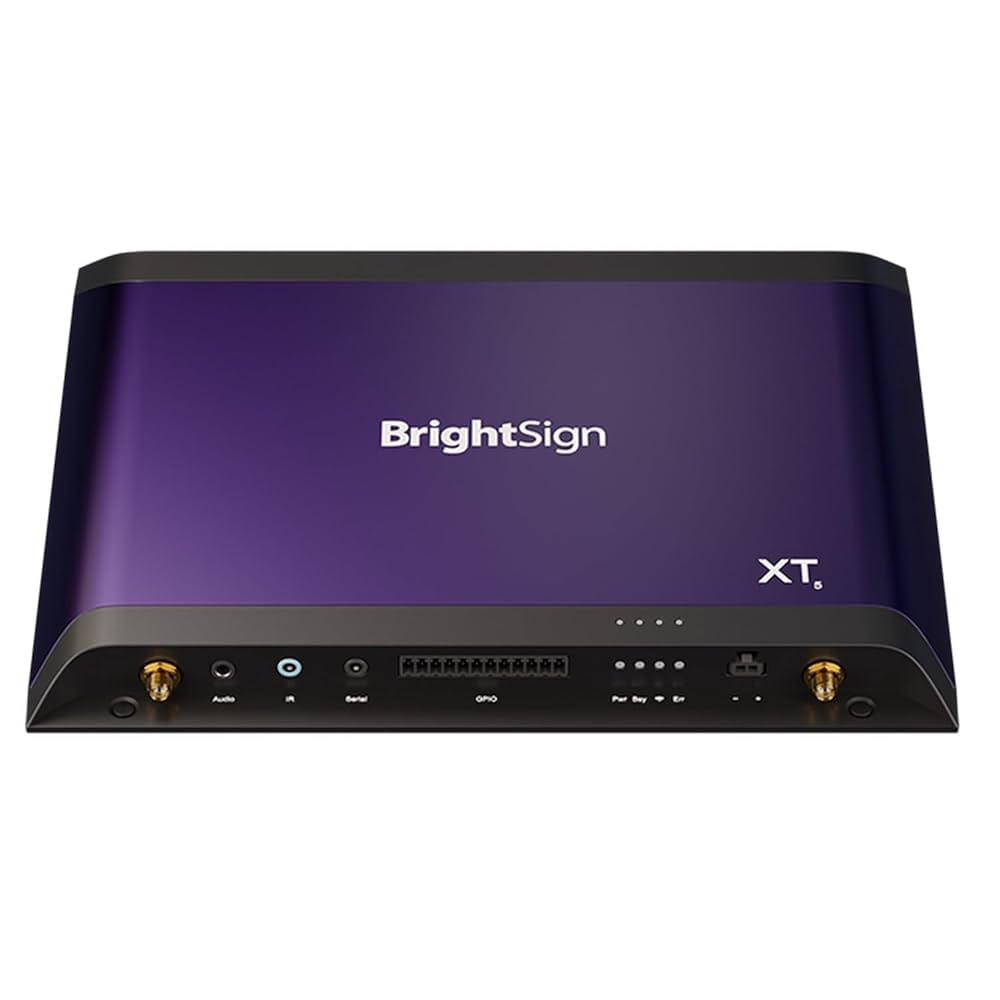

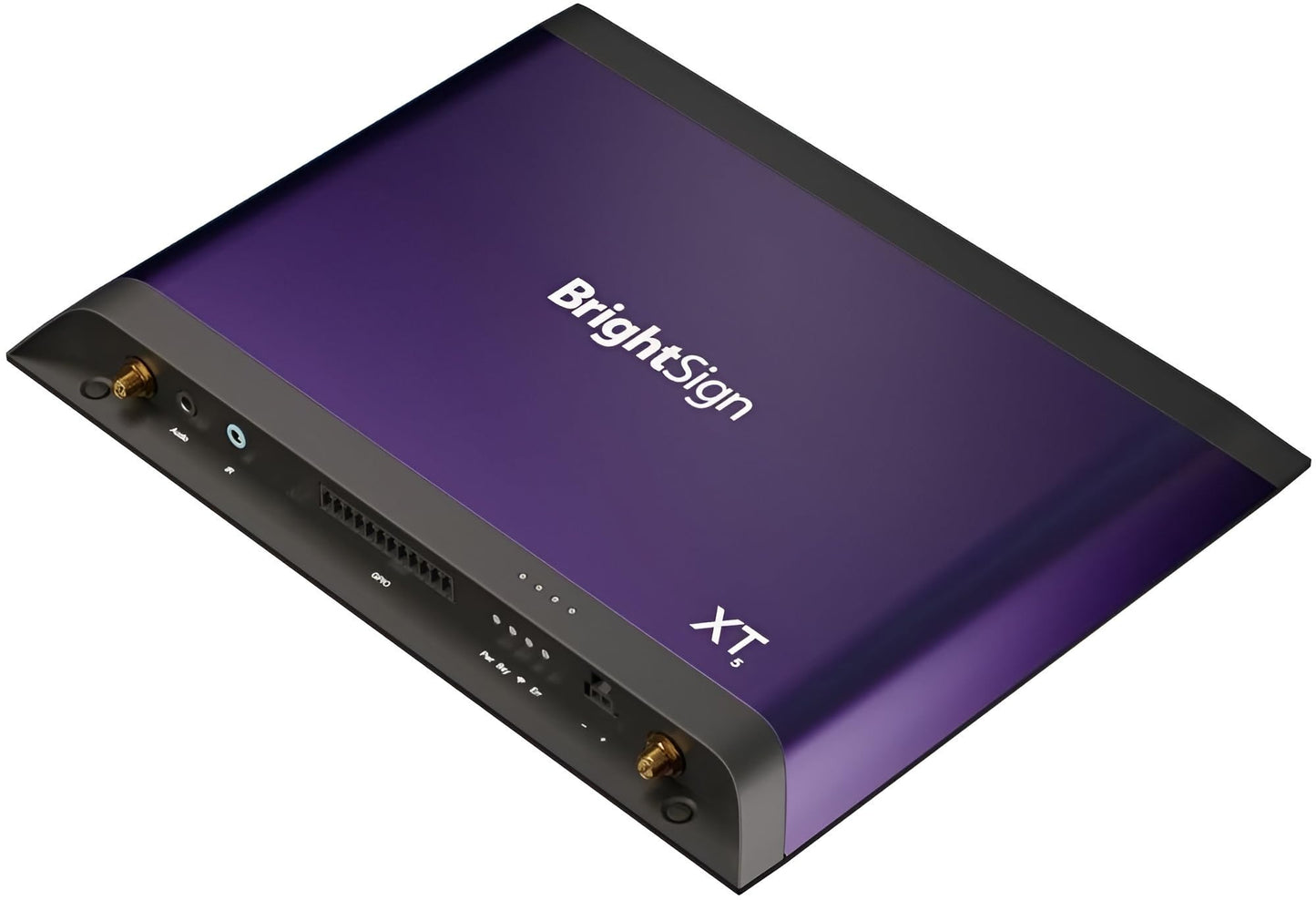

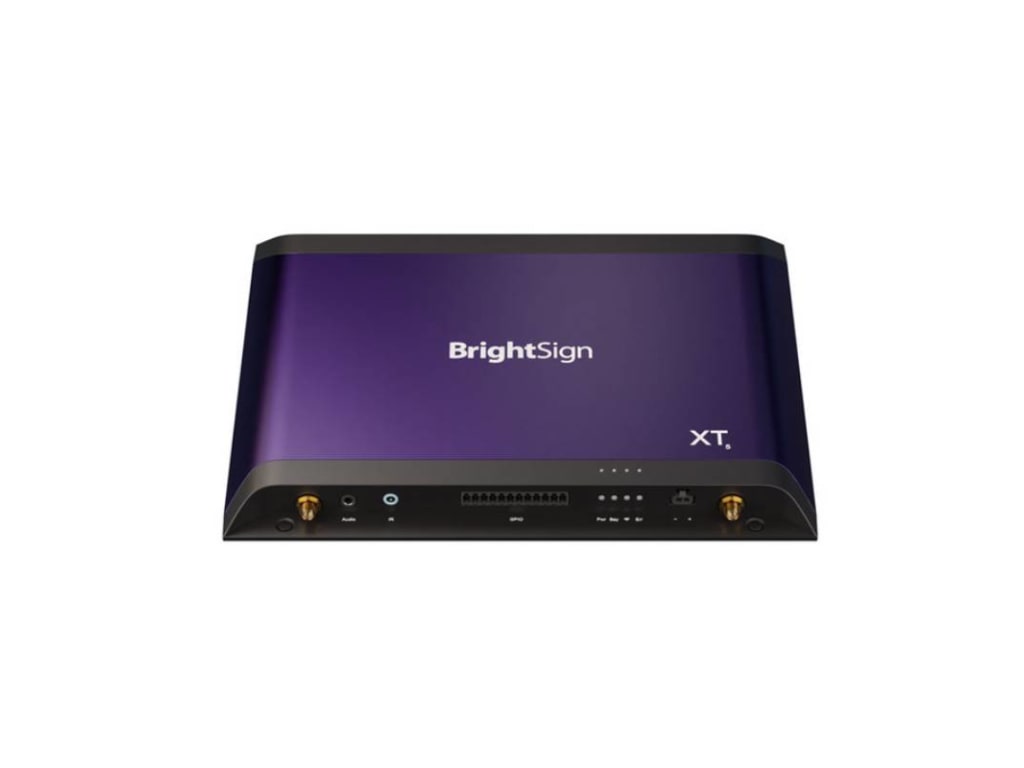

BrightSign XT245 Standard I/O Player with Gb Ethernet & PoE+ Support

VENDOR: BRIGHTSIGN Mfg Part#: XT245 UPC#: 854529008265
1 5
Photo is for illustration purposes only. Actual product may be different.
$659.93
$659.93
Sale Sold out
MSRP: $839.00
Shipping calculated at checkout.
  • Supports video resolutions from 1080p to 8K60p for high-quality playback
  • Includes Gigabit Ethernet connectivity with PoE+ support for ease of installation
  • Features GPIO, IR, and digital audio ports for enhanced integration
  • Equipped with both HDMI and Ethernet interfaces for flexible connectivity
  • Compact format: 19.19mm (H) x 238.62mm (W) x 185.9mm (D)
  • TAA compliant and manufactured in Taiwan for deployment in regulated environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers premium video performance up to 8K60p, ideal for immersive signage and presentation systems
  • Gigabit Ethernet with PoE+ simplifies cabling and power management, reducing installation complexity and cost
  • Rich I/O options including GPIO, IR, and digital audio enable seamless integration with control systems and AV infrastructure

Product Overview

POWERFUL ULTRA-THIN PLAYER DELIVERING THE HIGHEST QUALITY VIDEO FROM 1080P TO 8K60P & PLAYING 3D MOTION GRAPHICS AT HIGH FRAME RATES. STANDARD I/O PACKAGE WITH GB ETHERNET SUPPORTING POE+, GPIO, IR AND DIGITAL AUDIO PORTS

Specifications

Product Overview
Product Type Digital Signage Media Player
Model XT245
Form Factor Ultra-thin desktop
Video Output Resolutions Supported Up to 8K60p
3D Graphics Support Yes, high frame rate 3D motion graphics
Power Requirements 12V / 3A or PoE+
Power Supply Type External AC to DC Adapter or PoE+
Weight 0.76 kg

Wireless Features
Wireless Support Optional via USB Wi-Fi/Bluetooth module (not included)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
FCC Certification Yes, Part 15 Class B
CE Certified Yes
UL Listed Yes

Advanced Security Features
Secure Boot Yes
Trusted Platform Module (TPM) Yes
Network Security Protocols HTTPS, SSL/TLS, 802.1x
Device Lockdown Capability Yes

Interfaces
HDMI Outputs 1 x HDMI 2.1
Ethernet Port 1 x RJ-45 Gigabit Ethernet (PoE+ supported)
USB Ports 1 x USB Type-A, 1 x USB Type-C
Serial Port 1 x RS-232
GPIO Ports 8-pin bi-directional GPIO
IR Port Yes, 1 x IR input
Digital Audio Output 1 x SPDIF (optical)
SD Card Slot 1 x microSDHC/microSDXC
M.2 Interface 1 x M.2 M-key slot for internal storage expansion

Physical & Environmental
Width 238.62 mm
Height 19.19 mm
Depth 185.9 mm
Operating Temperature 0°C to 40°C
Storage Temperature -40°C to 70°C
Operating Humidity 10% to 90% non-condensing
Enclosure Type Metal
Mounting Options Wall mount, VESA mount supported

Cloud Management & Licensing
Cloud Management Platform BrightSign BSN.Cloud supported
Software Licensing Requirements None (included with hardware)
Remote Monitoring Features Yes
Content Scheduling Yes, via BrightAuthor:connected or BSN.Cloud
