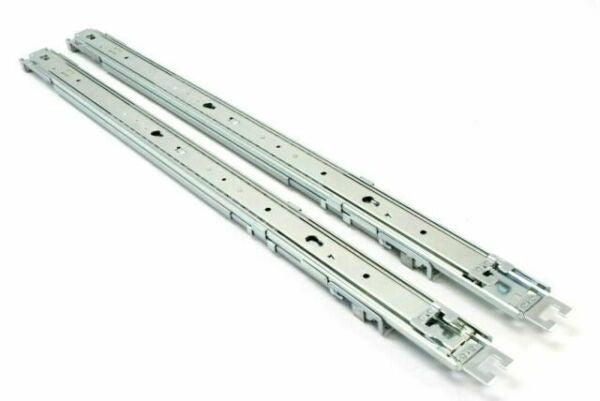

CISCO Ball Bearing Rail Kit for C220 & C240 M6 Servers

VENDOR: CISCO Mfg Part#: HCI-RAIL-M6=
1 3
Photo is for illustration purposes only. Actual product may be different.
$199.40
$199.40
Sale Sold out
MSRP: $360.62
Shipping calculated at checkout.
  • Ball Bearing Rail Kit enables smooth server slide operation for maintenance
  • Compatible with CISCO C220 & C240 M6 rack server models
  • TAA compliant for government and regulated sector deployments
  • Manufactured in China to CISCO’s enterprise-grade standards
  • Designed as part of CISCO's Accessories and Cables product family

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ensures secure and efficient installation of CISCO C220 & C240 M6 servers, vital for enterprise IT infrastructure.
  • TAA compliance allows use in sensitive government and federally regulated environments.
  • Ball bearing mechanism supports reduced service time and smooth hardware access, improving operational uptime.

Product Overview

The CISCO Ball Bearing Rail Kit (HCI-RAIL-M6=) enhances rack installation efficiency for C220 and C240 M6 servers. Utilizing a ball-bearing sliding mechanism, it allows for easy server deployment and maintenance. With TAA compliance and manufacture in China, it suits both government and enterprise environments. As part of CISCO's Accessories and Cables product family, this kit complements a comprehensive server solution portfolio.

Specifications

Product Overview
Product Type Ball Bearing Rail Kit
Form Factor Rack-mount rail kit
Compatible Server Models Cisco UCS C220 M6, Cisco UCS C240 M6
Weight 5.2 lbs (2.36 kg)
Power Requirements

Wireless Features
Wi-Fi Standards

Compliance & Origin
Country of Origin China
TAA Compliance Yes
RoHS Compliance Yes
REACH Compliance Yes
WEEE Compliance Yes
CE Marking Yes
UL Certification Yes

Advanced Security Features
Tamper Evident Design No

Interfaces
Rail Installation Type Tool-less or screw-mount (depending on rack)
Sliding Mechanism Ball-bearing slide rails
Compatibility with Rack Units Standard 19-inch 4-post racks
Adjustable Mounting Depth Yes
Cable Management Arm Compatibility Supports optional cable management arm (CMA)

Physical & Environmental
Dimensions (L x W x H) 29.25 x 2.0 x 1.75 in (743 x 51 x 44 mm)
Rack Compatibility 4-post EIA-310-D racks
Mounting Depth Range 24 to 36 inches (610 to 914 mm)
Maximum Supported Weight Up to 75 lbs (34 kg)
Operating Temperature Range 5°C to 40°C (41°F to 104°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Construction Material Cold-rolled steel
Finish/Coating Zinc-plated or powder-coated

Cloud Management & Licensing
Cloud Management
License Requirement Not applicable
