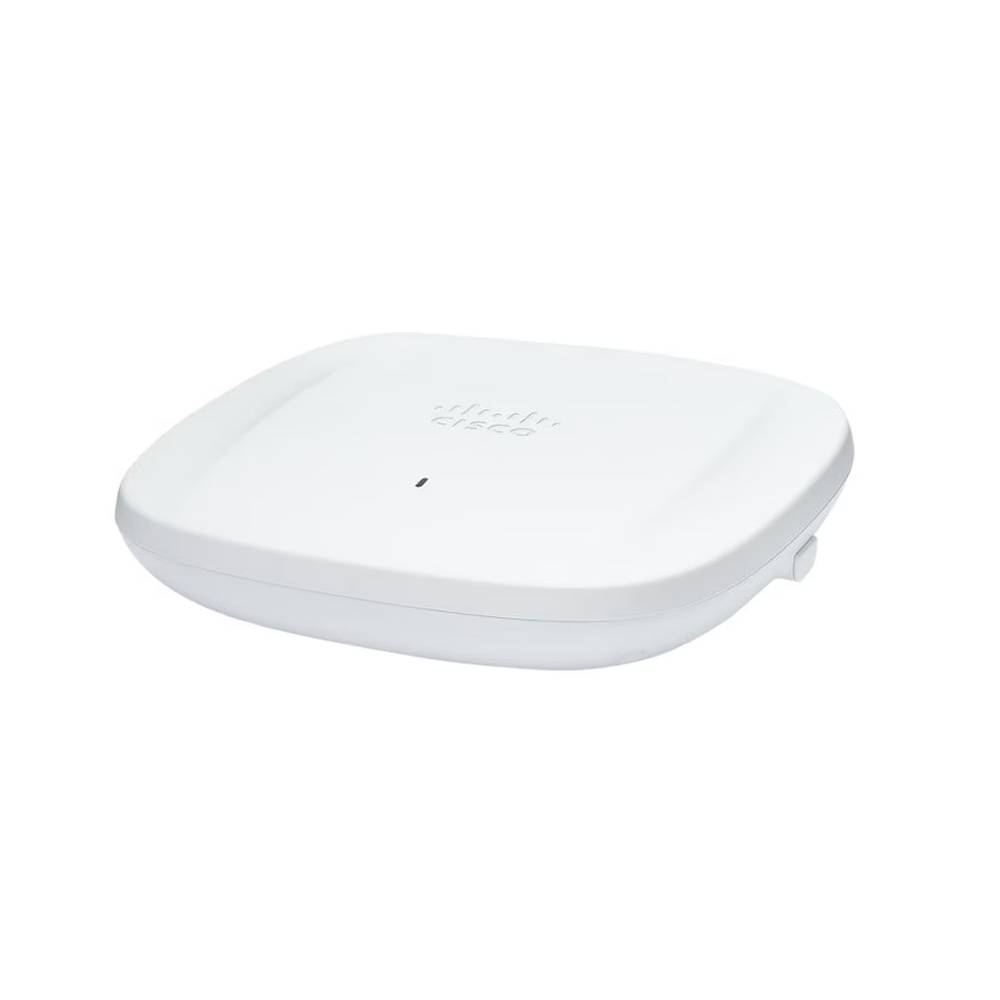

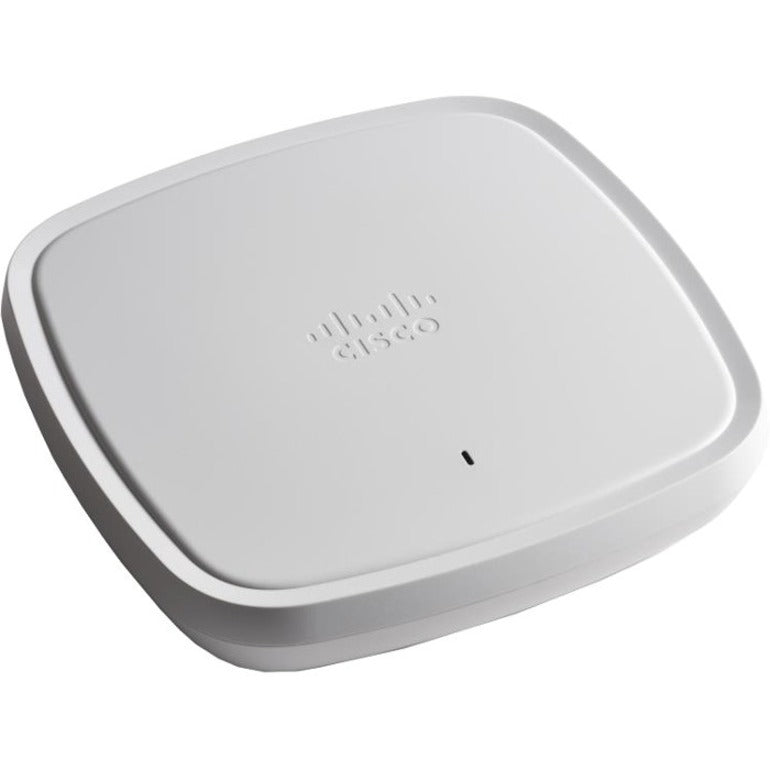

Cisco Catalyst 9130AX Wi-Fi 6 Access Point, Indoor, 5Gbps, MU-MIMO

VENDOR: CISCO Mfg Part#: C9130AXE-A
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,903.36
$1,903.36
Sale Sold out
MSRP: $2,791.61
Shipping calculated at checkout.
  • Supports dual-band operation on 2.4 GHz and 5 GHz
  • Maximum data transfer rate of 5 Gbps
  • Backward compatibility with 802.11a/g/n/ac standards
  • Advanced MU-MIMO support (4x4 and 8x8 configurations)
  • 2 GB of installed RAM
  • Indoor form factor with 9.17 x 9.17 x 1.58 inch dimensions

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-grade performance with Wi-Fi 6 and 5 Gbps throughput
  • Supports high-user density environments with both 4x4 and 8x8 MU-MIMO
  • Comes with a limited lifetime warranty and TAA compliance, suitable for federal and enterprise procurement

Product Overview

The Cisco Catalyst 9130AX Series Access Point delivers next-generation wireless performance for enterprise-grade indoor deployment. It operates on both 2.4 GHz and 5 GHz frequency bands and supports 5 Gbps data transfer rates, complying with multiple wireless standards including 802.11a/g/n/ac. With both 4x4 and 8x8 MU-MIMO configurations, it can handle multiple simultaneous connections efficiently, improving network capacity and responsiveness. The device features 2 GB of RAM and Gigabit Ethernet compatibility for stable, high-speed transport. Designed for clean installation with dimensions of 9.17 x 9.17 x 1.58 inches, it is fully TAA-compliant and backed by a limited lifetime warranty, ensuring high reliability for government and large-scale corporate environments.

Specifications

Product Overview
Product Type Wireless Access Point
Series Cisco Catalyst 9130AX
Use Case Indoor enterprise-grade deployment
Form Factor Ceiling mount / Wall mount
Power Input 802.3at PoE+ or Cisco UPOE
Power Consumption (Maximum) 30.8 Watts
RAM 2 GB

Wireless Features
Wireless Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequency Bands 2.4 GHz and 5 GHz
Antennas External antenna support (E model)
MIMO Configuration 8x8 MU-MIMO (5 GHz), 4x4 MU-MIMO (2.4 GHz)
Spatial Streams 8 (5 GHz), 4 (2.4 GHz)
Max Clients per Radio 200+
OFDMA Support Yes
Target Wake Time (TWT) Supported

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL 60950-1, IEC 60950-1, IEC 62368-1, CSA C22.2 No. 62368-1, RoHS, WEEE

Advanced Security Features
Integrated Security Yes (Cisco Trustworthy Systems, Secure Boot, runtime defenses)
WPA3 Encryption Support Yes
Identity Services Supports Cisco Identity Services Engine (ISE)
Rogue Access Point Detection Yes
Encrypted Traffic Analytics (ETA) Supported

Interfaces
Uplink Interface 1 x 5G/2.5G/1G Multigigabit Ethernet (RJ-45)
Secondary Ethernet Port 1 x 1G Ethernet (RJ-45)
Management Interface 1 x Console Port (RJ-45)
USB Port 1 x USB 2.0
Supported Data Rate (Max) 5 Gbps
Ethernet Protocols Supported 10/100/1000/2500/5000 Mbps

Physical & Environmental
Width 9.17 inches (23.3 cm)
Depth 9.17 inches (23.3 cm)
Height 1.58 inches (4.0 cm)
Weight 2.42 lbs (1.1 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 90% (non-condensing)

Cloud Management & Licensing
Cloud Management Platform Cisco DNA Center / Cisco Meraki (via conversion)
Licensing Model DNA Advantage or Essentials license (sold separately)
Management Features Cisco IOS XE, telemetry, AI/ML analytics support
