Cisco Catalyst 9200CX 12-Port 1G Switch, 2x10G SFP+, Essentials

VENDOR: CISCO Mfg Part#: C9200CX-12T-2X2G-E UPC#: 889728447140
  • Catalyst 9000 Compact Switch 12-port Data Only, Essentials
1 1

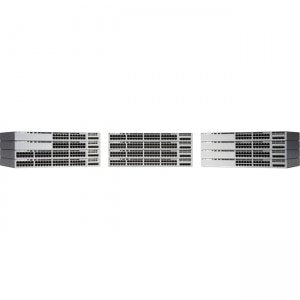

Photo is for illustration purposes only. Actual product may be different.
$1,181.26
$1,181.26
Sale Sold out
MSRP: $1,992.92
Shipping calculated at checkout.
  • 12-port 1G Ethernet with 2x10G SFP+ and 3x1G uplinks
  • Layer 2 and Layer 3 support with IPv4/IPv6, RIPv1/v2, OSPFv3
  • 4GB RAM and 8GB flash memory for fast, reliable performance
  • Supports jumbo frames up to 9198 bytes and MAC table size of 32,000
  • Remote management via SNMP, Syslog, and DHCP
  • Compact 1U design with 80W power and wide operating temperature range

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for space-constrained environments with its compact 1U form factor and robust feature set
  • Plug and Play enabled and Cisco IOS XE support make it easy to deploy and manage
  • Enterprise-grade durability with 960,180-hour MTBF and limited lifetime warranty ensures long-term viability

Product Overview

The Cisco Catalyst 9200CX C9200CX-12T-2X2G-E is a high-performance compact Layer 2 and 3 switch engineered for secure enterprise networking. This 12-port Gigabit Ethernet switch includes two fixed 10G SFP+ uplink ports and three additional 1G copper uplinks, offering flexible connectivity for diverse deployments. Powered by Cisco IOS XE and enhanced with AES encryption, it maintains performance and security in space-constrained environments.

The switch supports a data throughput of 10 Gbps, features 4GB RAM and 8GB flash memory, and enables jumbo frames up to 9198 bytes. With up to 960,180 hours MTBF and a limited lifetime warranty, it is built for long-term dependability. It supports SNMP, Syslog, and DHCP for remote management and is compliant with key standards like IEEE 802.1x and 802.3bt. Operating in environments from -5°C to 45°C, the unit draws 80W and is TAA-compliant, making it suitable for government and enterprise use.

With rich routing protocol support including IPv4, IPv6, RIPv1/v2, and OSPFv3, this compact switch is an excellent fit for robust branch deployments requiring accelerated provisioning with Plug and Play (PnP) enablement. LED indicators and compact 1U chassis further enhance usability and space efficiency.

Specifications

Product Overview
Product Type Managed Switch
Model C9200CX-12T-2X2G-E
Series Cisco Catalyst 9200CX
Form Factor 1U
Weight 4 lbs.
Power Requirements 100 to 240 VAC, 50 to 60 Hz
Power Consumption 80 Watt
Operating System Cisco IOS XE
Processor RAM 4 GB
Flash Memory 8 GB
Mean Time Between Failures (MTBF) 960180 hours
Warranty Limited Lifetime Warranty
Plug and Play (PnP) Support Yes

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Compliant Standards IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3bt

Advanced Security Features
Encryption Algorithm AES
Routing Protocol Support IPv4, IPv6, RIPv1, RIPv2, OSPFv3
IEEE 802.1x Port-Based Authentication Yes
Malware Protection
Firewall Support
Content Filtering
Intrusion Detection/Prevention (IDS/IPS)

Interfaces
10/100/1000 Ethernet Ports 12
10G SFP+ Uplink Ports 2
Additional 1G Copper Uplink Ports 3 (2x 1G copper, 1x 1G CU PD 802.3bt Class 6)
Management Ports 1x mini USB, 1x USB
Data Transfer Rate 10 Gbps
Jumbo Frame Support 9198 bytes
MAC Address Table Size 32000 entries
Media Layer Supported Layer 2 and Layer 3
Data Link Protocol Gigabit Ethernet
Status Indicators LED indicators

Physical & Environmental
Width 10.6 Inch
Depth 6.5 Inch
Height 1.73 Inch
Minimum Operating Temperature -5°C
Maximum Operating Temperature 45°C (up to 1500m altitude)
Minimum Storage Temperature -40°C
Maximum Storage Temperature 70°C
Humidity Tolerance

Cloud Management & Licensing
Software License Essentials
Cloud Management Platform
Remote Management Protocols SNMP, Syslog, DHCP
