Products Network Stuff Cisco Catalyst 9300 2 x 40G...

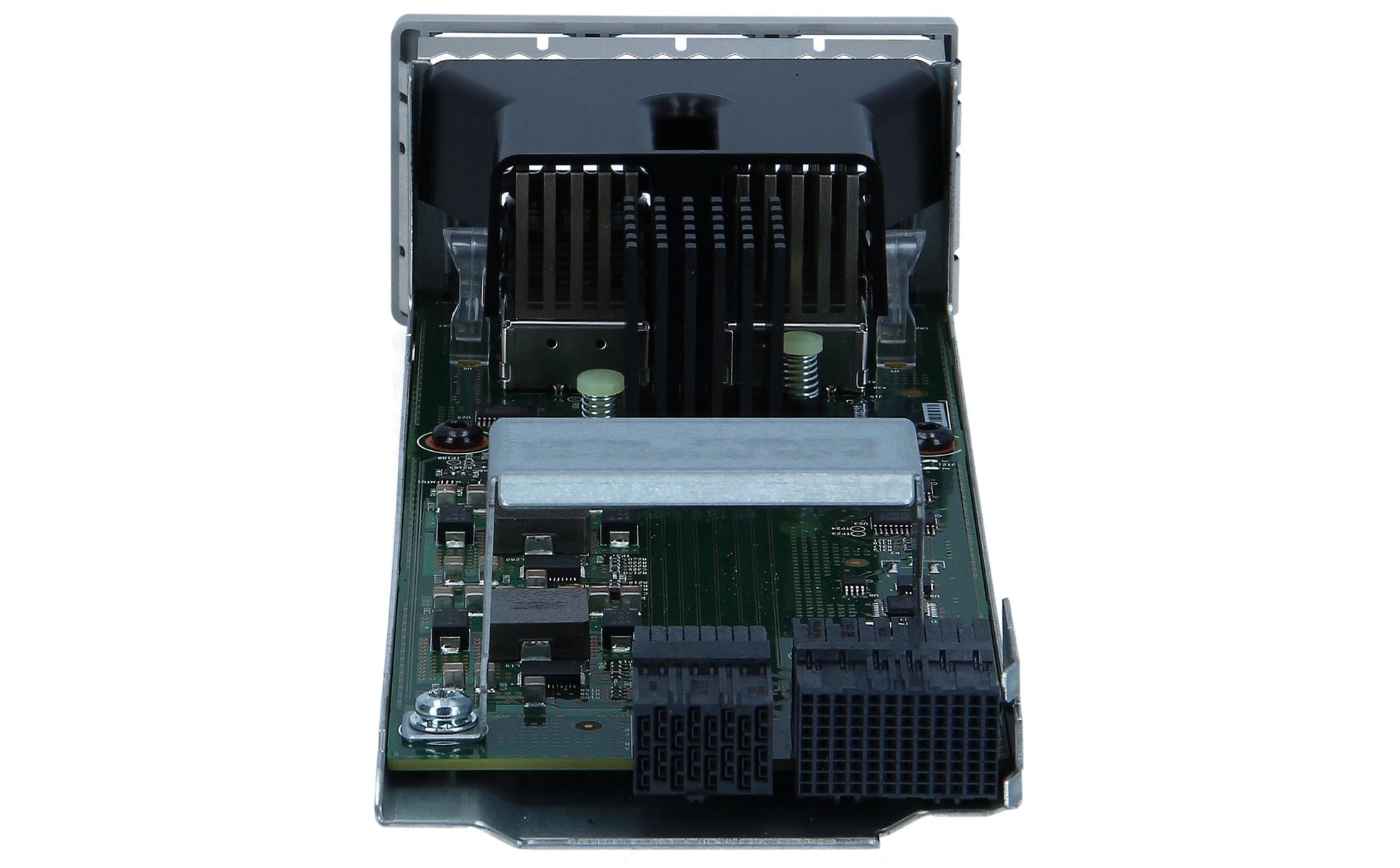

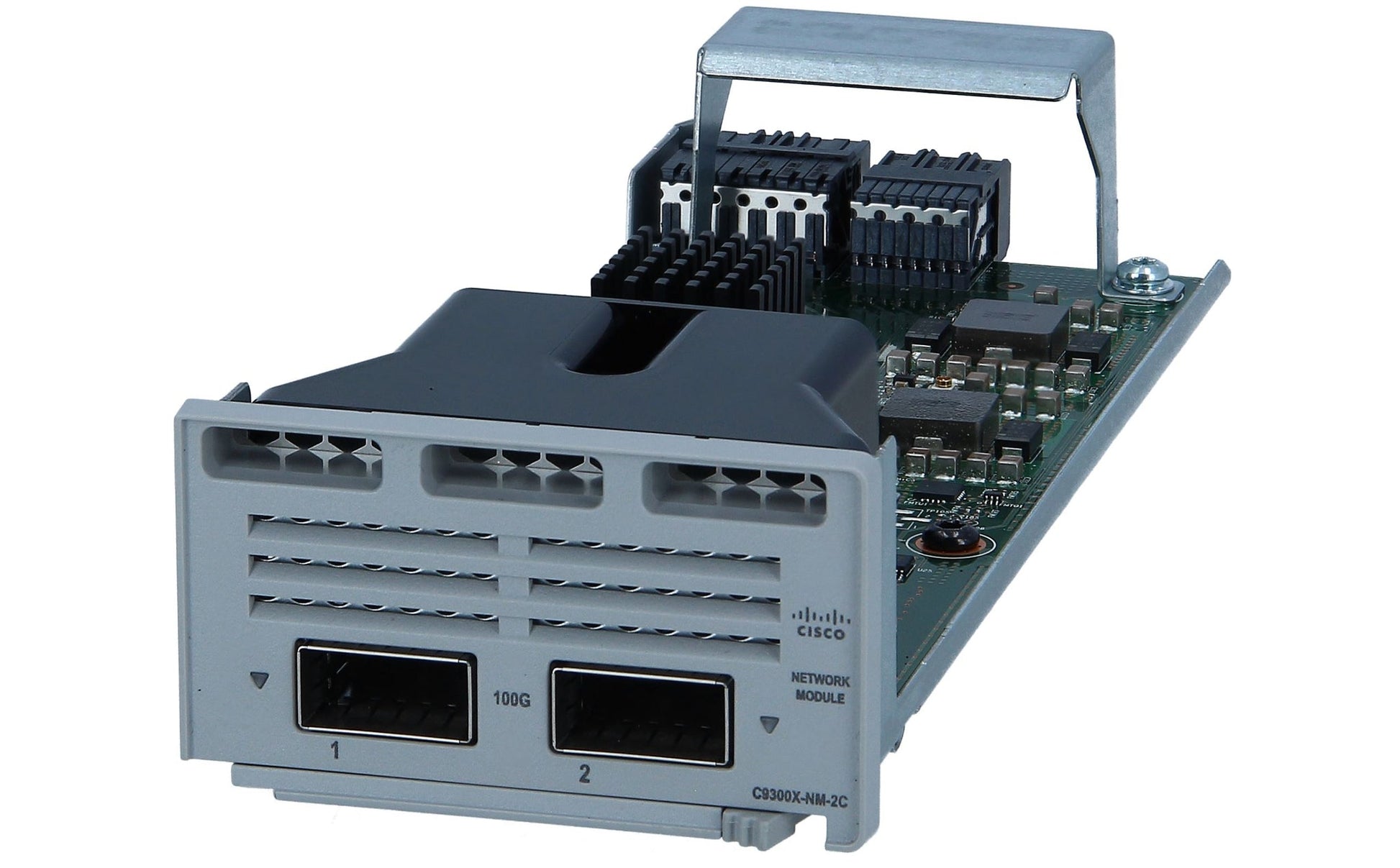

Cisco Catalyst 9300 2 x 40G/100G QSFP+/QSFP28 Network Module

VENDOR: CISCO Mfg Part#: C9300X-NM-2C=
1 3
Photo is for illustration purposes only. Actual product may be different.
$2,056.61
$2,056.61
Sale Sold out
MSRP: $3,016.36
Shipping calculated at checkout.
  • Offers 2 high-speed ports supporting 40G and 100G uplinks
  • QSFP+/QSFP28 module compatibility for network flexibility
  • TAA compliance for government and public sector use
  • Designed for Cisco Catalyst 9300 Series switches
  • Manufactured in China or Mexico under Cisco standards

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Compatible with Cisco Catalyst 9300 Series switches for seamless integration
  • Supports both 40G and 100G speeds, ideal for scalable high-performance networks
  • TAA compliance makes it suitable for regulated industry and government environments

Product Overview

The Cisco Catalyst 9300 Network Module with 2 x 40G/100G ports provides advanced uplink flexibility for Catalyst 9300 Series switches. Supporting both QSFP+ and QSFP28 transceivers, this module enables high-density, high-performance network aggregation crucial for modern enterprise network cores. The dual-port configuration supports scalable 100G-ready uplinks that future-proof infrastructure.

The product meets TAA compliance requirements, suiting it for public sector or regulated deployments. Built under Cisco’s manufacturing standards, with origins in China/Mexico, this module supports secure and agile network deployments with long-term durability.

Specifications

Product Overview
Product Type Network module
Form Factor Plug-in module
Designed For Cisco Catalyst 9300 Series Switches
Module Model C9300X-NM-2C=
Number of Ports 2
Port Type QSFP+/QSFP28
Compatible Transceivers QSFP+, QSFP28
Power Consumption 7.5 Watts (typical)
Hot Swappable Yes

Physical & Environmental
Dimensions (W x D x H) 3.15 x 3.46 x 0.83 in (80 x 88 x 21 mm)
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
MTBF Over 1,000,000 hours

Cloud Management & Licensing
Management Interface Managed via switch CLI, Web UI, or Cisco DNA Center
Cisco DNA Center Compatibility Yes
License Requirement No separate license for module; subject to base switch licensing

Interfaces
Interface Type QSFP+/QSFP28
Ports 2 x 40/100 Gigabit Ethernet uplink ports
Port Speed Options 40 Gbps or 100 Gbps
Total Uplink Bandwidth Up to 200 Gbps (full duplex)
Transceiver Support Cisco QSFP-100G-SR4, QSFP-100G-LR4, QSFP-40G-SR4, and others
Data Transfer Rate per Port 100 Gbps max
Connector Type QSFP+

Compliance & Origin
TAA Compliant Yes
Country of Origin China / Mexico
RoHS Compliant Yes
EMC Standards FCC Part 15 Class A, ICES-003 Class A, EN55032 Class A
Safety Standards UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1
Certifications CE, UL, c-UL, RoHS, EAC

Advanced Security Features
MACsec Encryption Support Yes (when supported by transceiver and platform)
Secure Boot Yes (inherited via host switch)
Trust Anchor Module Supported via host platform
