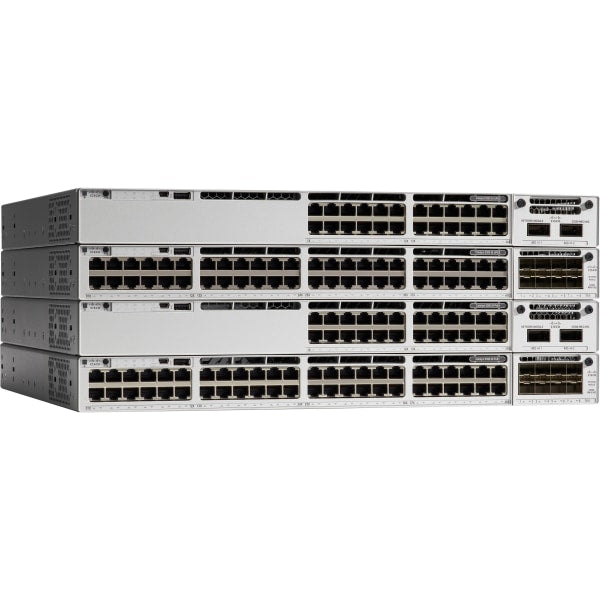

Cisco Catalyst 9300 24-Port PoE+ Switch (C9300-24P-A)

VENDOR: CISCO Mfg Part#: C9300-24P-A UPC#: 889728051682
  • CATALYST 9300 24-PORT POE+, NETWORK ADVA
1 1
Photo is for illustration purposes only. Actual product may be different.
$4,070.89
$4,070.89
Sale Sold out
MSRP: $7,071.41
Shipping calculated at checkout.
  • 24-port Gigabit Ethernet PoE+ switch with Layer 2 and Layer 3 support
  • 8 GB RAM and 16 GB flash memory for high-performance operations
  • Supports RIPv1, RIPv2, and RIPng routing protocols
  • Remote management via SNMP, RMON, and Syslog
  • AES 256-bit encryption for enhanced security
  • MTBF of 299,000 hours with RoHS and TAA compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides a scalable and secure Ethernet switching solution with 24 PoE+ ports, ideal for powering edge devices.
  • Delivers enterprise-class network performance and manageability with 8 GB RAM, 16 GB flash, and Layer 3 routing.
  • Ensures long-term operational reliability with a 299,000-hour MTBF and Enhanced Limited Lifetime Warranty.

Product Overview

The Cisco Catalyst 9300 Series Switch (C9300-24P-A) is a high-performance enterprise-grade switch featuring 24 PoE+ Gigabit Ethernet ports, ideal for powering and connecting various networked devices. It’s built with 8 GB RAM and 16 GB Flash Memory for efficient switching operations in Layer 2 and Layer 3 networks. With support for RIPv1, RIPv2, and RIPng, enterprise routing is streamlined across diverse applications. Management is simplified via SNMP, RMON, and Syslog remote protocols, and security is enforced with 256-bit AES encryption. The switch supports jumbo frames up to 9198 bytes and holds a MAC address table of 32,000 entries, making it scalable and reliable. Designed with MTBF of 299,000 hours and TAA/RoHS compliance, it delivers operational stability across conditions from -5°C to 70°C. Weighing 7.4 kg, this hardware solution comes backed by an Enhanced Limited Lifetime Warranty, making it a dependable choice for modern enterprise networks.

Specifications

Product Overview
Product Type Managed Layer 2/Layer 3 Switch
Model C9300-24P-A
Series Cisco Catalyst 9300 Series
Form Factor Rack-mountable - 1U
Weight 7.4 kg
Power Requirements AC 120/230 V (50/60 Hz)
Power Supply Type Internal power supply
Power Device Type Power Supply
MTBF 299000 hours
Service & Support Type Enhanced Limited Lifetime hardware Warranty

Wireless Features
Wireless Support

Compliance & Origin
RoHS Compliance Yes
TAA Compliance Yes
Country of Origin Brazil / China / Mexico / United States
Certifications UL, CSA, CE, IEC, FCC Part 15 Class A

Advanced Security Features
Encryption Algorithm AES 256-bit
Access Control Lists (ACL) Supported
IEEE 802.1X Authentication Supported
DHCP Snooping Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes
Storm Control Yes
Port Security Yes
Routing Protocols RIPv1, RIPv2, RIPng, EIGRP, OSPF, BGP (licensed features)

Interfaces
Total Ports 24 x Gigabit Ethernet PoE+
Port Type Gigabit Ethernet 10/100/1000
Power over Ethernet (PoE) PoE+
PoE Budget 445W
Uplink Interfaces Modular uplinks (supports 4 x 1G/10G SFP/SFP+ via network module)
Data Transfer Rate 1 Gbps per port
Jumbo Frame Support 9198 bytes
MAC Address Table Size 32,000 entries
Data Link Protocols Gigabit Ethernet, Fast Ethernet
Stacking Support Yes, StackWise-480 technology
Stacking Bandwidth 480 Gbps
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps

Physical & Environmental
Dimensions (W x D x H) 44.5 x 40.9 x 4.4 cm
Width 17.5 inch
Depth 16.1 inch
Height 1.73 inch
Operating Temperature Range -5°C to 45°C
Storage Temperature Range -40°C to 70°C
Relative Humidity (Operating) 5% to 90% (non-condensing)
Relative Humidity (Storage) 5% to 95% (non-condensing)
Cooling Redundant variable-speed fans
Noise Level 45 dB typical (at 25°C) depending on configuration

Cloud Management & Licensing
Management Interface Web GUI, Command-line interface (CLI), SNMP, RMON, Syslog
Cloud Management Support Cisco DNA Center (optional license required)
License Type Cisco Network Advantage license
Subscription Model Cisco Smart Licensing

Memory & Storage
RAM 8 GB
Flash Memory 16 GB
