Cisco Catalyst 9500 32-Port 100G Switch (C9500-32C-E)

VENDOR: CISCO Mfg Part#: C9500-32C-E UPC#: 889728142717
  • Catalyst 9500 32-port 100G only
1 1

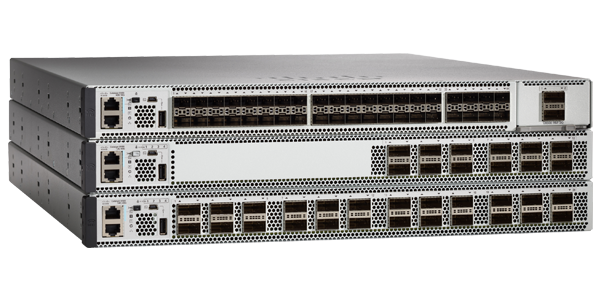

Photo is for illustration purposes only. Actual product may be different.
$26,913.32
$26,913.32
Sale Sold out
MSRP: $39,472.87
Shipping calculated at checkout.
  • 32 x 100 Gigabit QSFP28 ports in a compact 1U rack-mountable chassis
  • Switching capacity of 6.4 Tbps and forwarding rate of 2 billion packets per second
  • Supports advanced routing protocols including OSPF, BGP, EIGRP, IS-IS, RIP, and MPLS
  • MACsec encryption, DHCP, NAT, VRF, VLAN double tagging (Q-in-Q), and integrated Wireshark
  • 16 GB RAM and 16 GB flash memory with internal 1600W hot-plug power supply
  • Compliant with IEEE and various global standards; TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers uncompromising 100G Ethernet switching performance ideal for high-bandwidth enterprise backbones
  • Integrated advanced Layer 3 features and extensive protocol support ensure scalable and flexible network deployments
  • High reliability with MTBF over 212,000 hours and support for redundant power supplies reduces downtime risk

Product Overview

The Cisco Catalyst 9500 32-Port 100G (C9500-32C-E) switch is engineered for the digital enterprise core, delivering exceptional throughput and scalability. With 32 x 100G QSFP28 ports, it supports a full-duplex switching capacity of 6.4 Tbps and a forwarding rate of 2 billion packets per second. Designed for high-density environments, this 1U rack-mount switch is built to handle demanding data traffic with high reliability and flexibility.

The device offers comprehensive Layer 3 routing protocol support including OSPF, BGP, IS-IS, EIGRP, and MPLS, as well as robust QoS, security, and multicast capabilities. It features a high-capacity MAC address table (64K), 16 GB RAM, 16 GB flash memory, and an internal hot-pluggable 1600W power supply with 1+1 optional redundancy. Additional built-in technologies like MACsec encryption, VLAN Double Tagging, VRFs, and integrated Wireshark enhance network segmentation and visibility.

Ideal for enterprise backbone uplinks and data center interconnects, the Catalyst 9500 ensures uptime with advanced redundancy support and long mean time between failures (MTBF of over 212,000 hours). It includes Cisco IOS XE 16.8.1, SNMP/RESTCONF/NAT/NMS capability, and is TAA compliant. With a wide operating range and extensive standards compliance, it integrates smoothly into most secured and regulated network architectures.

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Form Factor 1U Rack-mountable
Weight 25.64 lbs
Power Requirements AC 120/230 V (50 - 60 Hz)
Power Supplied 1600 Watt
Installed Power Supply 1 x internal hot-pluggable
Maximum Supported Power Supplies 2
Power Redundancy Optional
Power Redundancy Scheme 1+1
MTBF 212,820 hours
Processor 1 x 2.4 GHz
RAM 16 GB
Flash Memory 16 GB
Built-in Devices RFID tag
Software Included Cisco IOS XE 16.8.1

Cloud Management & Licensing
Management Interface SNMP 1/2c/3, RMON 1/2, TFTP, RESTCONF, NETCONF
Software Platform Cisco IOS XE
Software License Included Network Essentials

Physical & Environmental
Width 17.5 in
Depth 21.2 in
Height 1.7 in
Operating Temperature Range 32 °F to 104 °F
Storage Temperature Range -4 °F to 149 °F
Operating Humidity 5 - 90% (non-condensing)
Storage Humidity 5 - 95% (non-condensing)

Interfaces
Total Ports 32
Port Type 100 Gigabit Ethernet QSFP28
Interface Type QSFP28
Additional Interfaces 2 x USB 3.0
Switching Capacity (Full Duplex) 6.4 Tbps
Forwarding Rate 2 Bpps
MAC Address Table Size 64K entries
Jumbo Frame Support 9198 bytes
Routing Protocols OSPF, IS-IS, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS

Advanced Security Features
MACsec Encryption Yes
Integrated Packet Capture Wireshark
ACL Support Security ACL scale: 270000; QoS ACL scale: 16000
Encryption Algorithm 256-bit AES

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Compliance Standards IEEE 802.3, 802.3u, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.3ae, 802.1s, 802.1ae, 802.3ba
Certifications CISPR 22 Class A, CISPR 24, EN 61000-3-2, FCC Part 15 Class A, UL 60950-1, RoHS, VCCI Class A, ICES-003, EN 60950-1, CAN/CSA-C22.2 No. 60950-1
