CISCO Catalyst ESS9300 Embedded Switch - 10-Port 10G NE

VENDOR: CISCO Mfg Part#: ESS-9300-10X-E UPC#: 889728327558
  • Catalyst ESS9300 Embedded Series switch - 10p 10G, NE
1 1

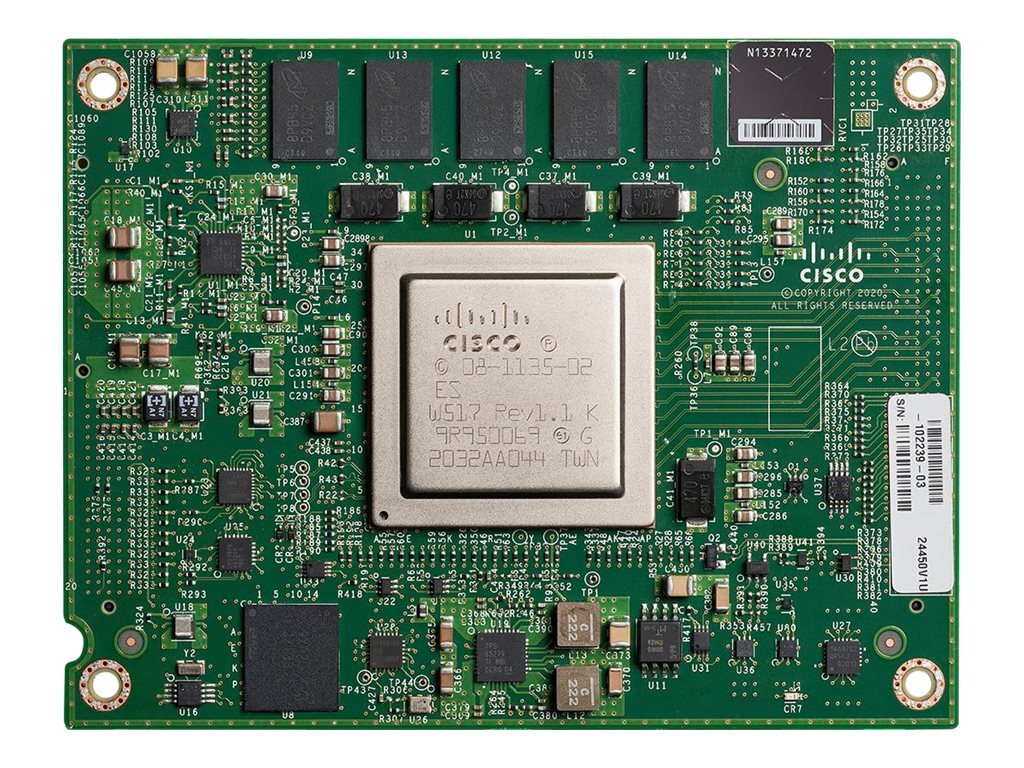

Photo is for illustration purposes only. Actual product may be different.
$5,722.20
$5,722.20
Sale Sold out
MSRP: $8,392.57
Shipping calculated at checkout.
  • 10 Gigabit Ethernet support across 10 ports
  • TAA compliant for use in government and regulated environments
  • Manufacturer: CISCO, a recognized leader in networking
  • Designed for embedded and industrial applications
  • NE (Network Essentials) license model likely indicates core switching capabilities

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for embedded and industrial environments requiring high-speed connectivity
  • TAA compliance makes it suitable for government and federal projects
  • Manufactured by CISCO, ensuring trusted performance and enterprise-grade support

Product Overview

The CISCO Catalyst ESS9300 Embedded Series switch - 10p 10G, NE is a robust network switching solution engineered for embedded and industrial use cases. With 10 ports supporting 10 Gigabit Ethernet, this model is optimized for high-throughput environments requiring reliable data transmission and minimal latency. The switch is part of CISCO’s Embedded Series, suited for applications such as ruggedized or automation infrastructure.

Manufactured in Mexico and TAA compliant, it’s suitable for government and federally funded projects. The NE license targets core functionality for a streamlined, cost-effective deployment. While some technical details are not disclosed, the device’s placement within CISCO's trusted Catalyst family reinforces its performance and reliability in demanding use cases.

Specifications

Product Overview
Product Type Managed Embedded Ethernet Switch
Series Cisco Catalyst ESS9300 Embedded Series
Model ESS-9300-10X-E
Switching Capacity 200 Gbps
Forwarding Rate 148.8 Mpps
Form Factor Board-level (embedded chassis)
Redundant Power Support Yes
Power Supply Type External (via system integration)
Power Consumption (Typical) 45W
MTBF Over 1,000,000 hours

Wireless Features
Wireless Support No

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL, CE, FCC, EN61000, IEC-61850-3, IEEE1613
RoHS Compliance Yes
REACH Compliance Yes

Advanced Security Features
Access Control Lists (ACLs) Yes
802.1X Port Security Yes
DHCP Snooping Yes
Dynamic ARP Inspection (DAI) Yes
IP Source Guard Yes
MACsec Support Yes
Secure Boot Yes
Image Signing Yes
Control Plane Policing Yes

Interfaces
Total Ethernet Ports 10
10-Gigabit Ethernet Ports (SFP+) 10
Interface Type SFP+
Network Technology 10GBase-X
Data Transfer Rate 10 Gbps per port
Aggregate Throughput 100 Gbps full duplex
Console Port Yes (RJ-45 or USB-C, model dependent)
Management Port Yes

Physical & Environmental
Dimensions (W x D x H) 165 mm × 185 mm × 33 mm
Weight 0.8 kg (approx.)
Operating Temperature -40°C to 70°C
Storage Temperature -40°C to 85°C
Relative Humidity (Operating) 5% to 95% non-condensing
Vibration Resistance IEC 60068-2-6 compliant
Shock Resistance IEC 60068-2-27 compliant
Ingress Protection Depends on enclosure; board-level device

Cloud Management & Licensing
Management Interface Web UI, CLI, SNMP, Cisco Embedded Management
Cisco DNA Support Yes (based on license tier)
Licensing Model Network Essentials (NE)
Included Software License Network Essentials (NE)
Software Upgradability Yes
