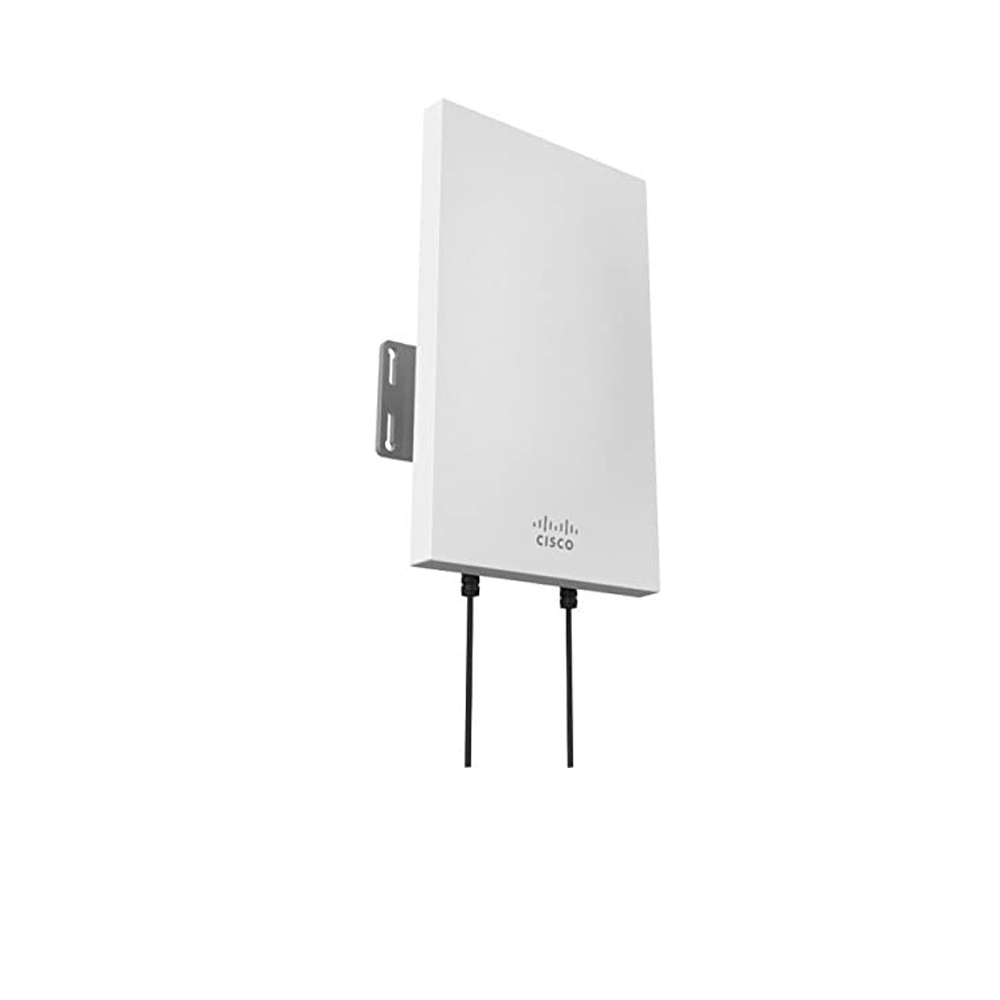

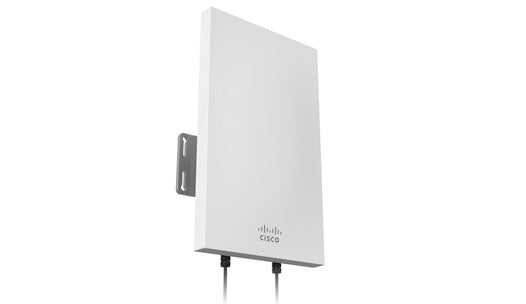

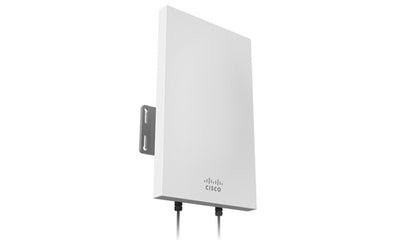

CISCO Meraki MA-ANT-27 Dual Band Sector Antenna

VENDOR: CISCO Mfg Part#: MA-ANT-27
1 2
Photo is for illustration purposes only. Actual product may be different.
$281.48
$281.48
Sale Sold out
MSRP: $412.82
Shipping calculated at checkout.
  • TAA compliant for federal and government applications
  • Manufactured in Taiwan for quality assurance
  • Supports dual-band wireless operation (2.4 GHz and 5 GHz)
  • Designed as a sector antenna for targeted coverage
  • Optimized for use with Cisco Meraki access points
  • Belongs to the Networking family of devices

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for secure, TAA-compliant environments such as government or public sector deployments
  • Sector antenna design enables focused, high-performance wireless coverage for enterprise settings
  • Dual-band operation enhances flexibility and connectivity in mixed-band deployments

Product Overview

The Cisco Meraki MA-ANT-27 Dual Band Sector Antenna is engineered to enhance the performance of Meraki access points by delivering optimized wireless coverage over both 2.4 GHz and 5 GHz bands. Its dual-band capability ensures superior throughput and reliable connectivity across multiple devices, making it suitable for complex business or campus environments requiring directional coverage with minimal interference.

This antenna supports TAA compliance, meaning it meets the Trade Agreements Act regulations—making it a viable choice for government and federal use. With a country of origin listed as Taiwan, the MA-ANT-27 reflects robust manufacturing practices. Its sector-style form factor is ideal for targeted wireless deployments in outdoor spaces, courtyards, or challenging RF environments, streamlining RF coverage and performance.

The antenna falls within the Networking family and Antenna accessory category, tailored for electronic network infrastructure. Although specific RF specs and compatibility details were not provided, it is clear that this accessory is part of a professional-grade wireless solution lineup offered by Cisco Meraki.

Specifications

Product Overview
Product Type Dual Band Sector Antenna
Form Factor Sector
Power Requirements Passive device; powered by compatible Meraki access point
Weight 0.95 kg (2.1 lbs)

Wireless Features
Frequency Range (2.4 GHz) 2.4 – 2.5 GHz
Frequency Range (5 GHz) 5.15 – 5.875 GHz
Antenna Gain (2.4 GHz) 6 dBi
Antenna Gain (5 GHz) 8 dBi
Antenna Type Directional
Polarization Linear, Vertical
Horizontal Beamwidth (2.4 GHz) 90°
Horizontal Beamwidth (5 GHz) 65°
Vertical Beamwidth (2.4 GHz) 90°
Vertical Beamwidth (5 GHz) 65°
Max VSWR < 2:1
Impedance 50 Ohms

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
RoHS Compliant Yes

Advanced Security Features
Built-in Security Features None; dependent on connected Meraki access point

Interfaces
Antenna Connector Type RP-TNC Plug
Number of Antenna Connectors 2
Compatibility Compatible with Meraki MR74, MR76, MR84, MR86

Physical & Environmental
Dimensions (H x W x D) 245 mm x 60 mm x 43 mm (9.65 in x 2.36 in x 1.7 in)
Mounting Options Pole or wall mount
Operating Temperature -40°C to 70°C (-40°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% non-condensing
Wind Survivability 125 mph (201 km/h)
Enclosure Rating IP67
Mounting Kit Included Yes

Cloud Management & Licensing
Management Interface Managed via compatible Meraki access point
License Requirement No license required for antenna alone
