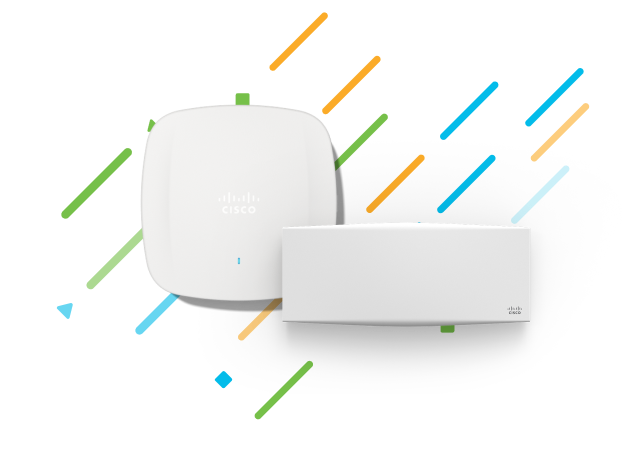

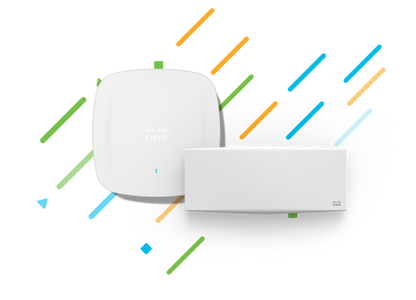

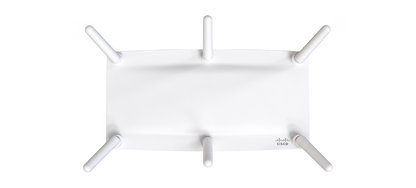

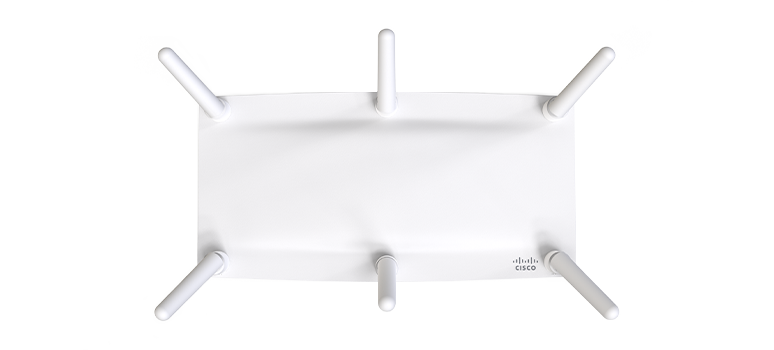

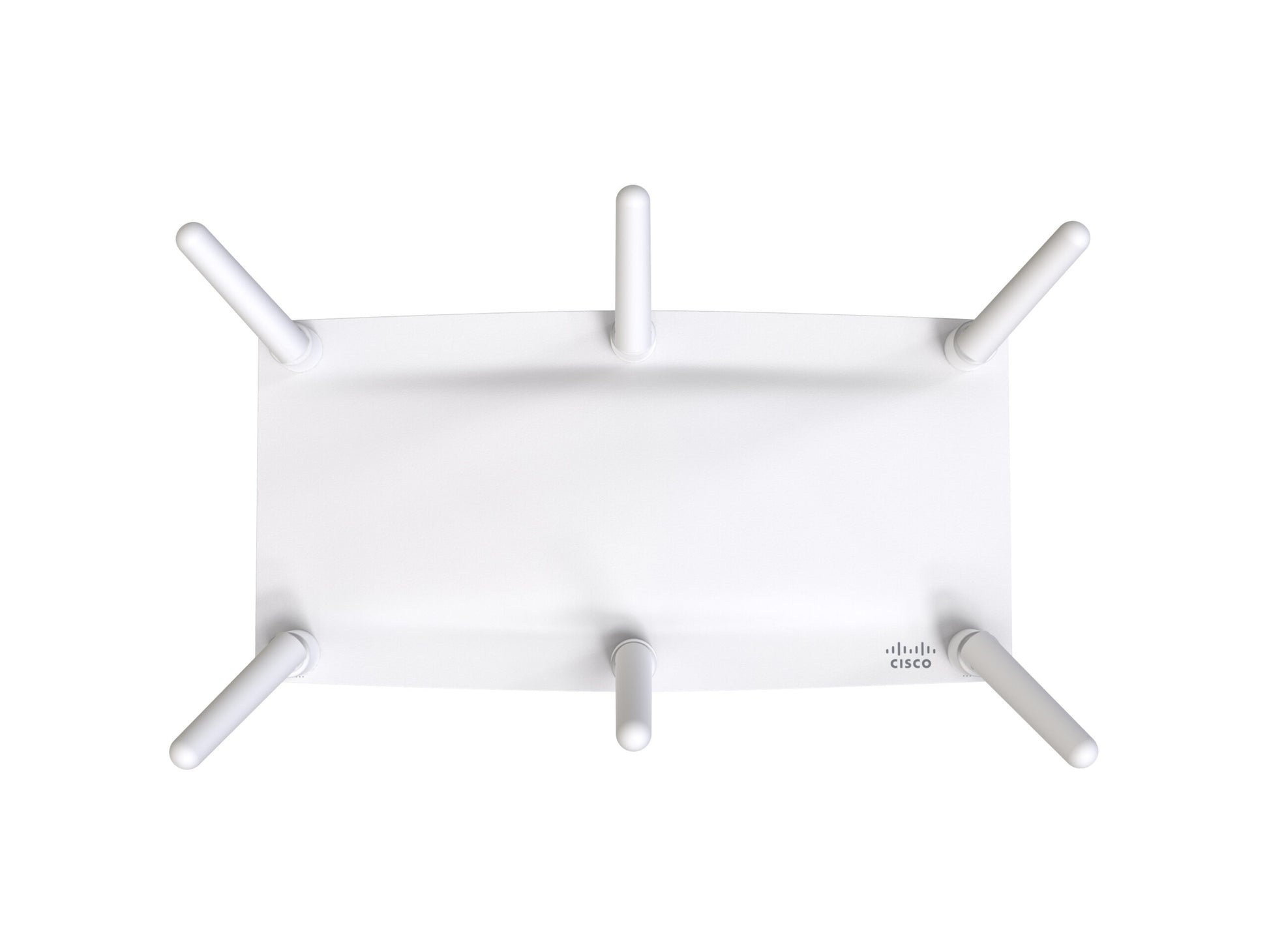

Cisco Meraki MR46E Wi-Fi 6 Indoor Access Point with External Antenna

VENDOR: CISCO Mfg Part#: MR46E-HW UPC#: 810979016861
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,286.39 USD
$1,286.39 USD
Sale Sold out
MSRP: $1,886.71
Shipping calculated at checkout.
  • Wi-Fi 6 technology for improved performance and efficiency
  • External antenna connectors for flexible RF design
  • TAA compliant, suitable for regulated environments
  • Manufactured in Taiwan for traceable country of origin
  • Part of the Cisco Meraki cloud-managed networking family

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • External antenna connectors enable tailored signal distribution in complex indoor spaces.
  • TAA compliance makes it ideal for public sector or government-related deployments.
  • Cloud-managed via Cisco Meraki platform simplifies setup, monitoring, and scalability.

Product Overview

The Cisco Meraki MR46E Wi-Fi 6 Indoor Access Point is designed for enterprise and high-density environments, offering external antenna connectors for flexible coverage. With TAA compliance and origin in Taiwan, it meets procurement standards for government and regulated industries. Integrated within the Meraki cloud-managed ecosystem, it allows for streamlined deployment and centralized network management. Detailed technical specifications are not available.

Specifications

Product Overview
Product Type Indoor Wireless Access Point
Model MR46E
Form Factor Ceiling or wall mountable
Mounting Options Wall mount and ceiling grid mount kit included
Enclosure Type Plastic
Power Supply PoE+ (802.3at) or DC adapter (sold separately)
Power Consumption 22.5W max
Weight 0.816 kg (1.8 lbs)

Wireless Features
Wi-Fi Standard 802.11ax (Wi-Fi 6)
Wi-Fi Band Dual-band (2.4 GHz and 5 GHz)
MIMO 4x4 MU-MIMO with OFDMA
Max Data Rates 2.4 GHz: 1,147 Mbps; 5 GHz: 2,402 Mbps
Client Capacity Up to 2,000 clients per AP
Antenna Type External antennas (sold separately)
Beamforming Yes (Transmit Beamforming for increased signal strength)
Band Steering Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, IC, CE, RoHS, UL
Safety Compliance UL 60950-1, IEC 60950-1 +A1/A2
EMC Compliance EN 55032 Class B, EN 61000-3-2/3, EN 55024

Advanced Security Features
Wireless Security WPA3, WPA2-Enterprise with 802.1X
Integrated Firewall Layer 3-7 Stateful Firewall
Intrusion Detection & Prevention Yes, via cloud-based analytics
Rogue AP Detection Yes
Identity-Based Access Control Yes (via RADIUS and Active Directory)
Guest Access Yes, with splash page and bandwidth control

Interfaces
Ethernet Ports 1 x 2.5G Ethernet (RJ45), 1 x 1G Ethernet port (pass-through)
Ethernet Port Type RJ-45, Auto-MDIX
Ethernet Standards IEEE 802.3ab, IEEE 802.3u, IEEE 802.3bz
PoE Support IEEE 802.3at (PoE+)
Console Port 1 x RJ45
External Antenna Connectors 4 x N-Type connectors
Data Rate (Max) 3.5 Gbps aggregate frame rate

Physical & Environmental
Dimensions 254 mm × 139 mm × 29 mm (excluding connectors)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP30
MTBF 674,000 hours at 25°C

Cloud Management & Licensing
Cloud Management Platform Cisco Meraki Dashboard
Software Licensing Requires subscription license (Enterprise or Advanced)
Firmware Updates Automatic via Meraki Dashboard
Configuration & Monitoring Web-based centralized management interface
Zero Touch Provisioning Yes
Remote Troubleshooting Tools Yes (packet capture, spectrum analysis, live tools)
