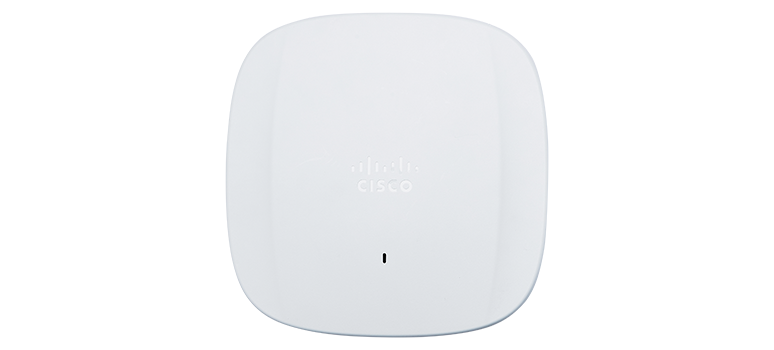

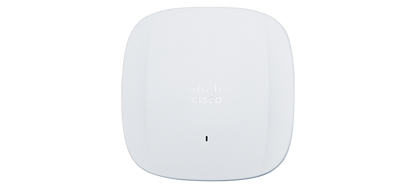

Cisco Meraki MR57 Wi-Fi 6E Indoor Access Point

VENDOR: CISCO Mfg Part#: MR57-HW UPC#: 810979018223
1 2
Photo is for illustration purposes only. Actual product may be different.
$1,915.22
$1,915.22
Sale Sold out
MSRP: $2,808.98
Shipping calculated at checkout.
  • Wi-Fi 6E tri-radio support across 2.4 GHz, 5 GHz, and 6 GHz bands
  • Supports 802.11ax and backward-compatible standards
  • Compatible with 802.3at and 802.3bt PoE power sources
  • Indoor access point form factor without built-in processor or cellular
  • Compliant with TAA regulations
  • Includes lifetime hardware warranty with advanced replacement

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Tri-band Wi-Fi 6E architecture enables high-speed, interference-free wireless across dense environments
  • TAA compliance and Taiwan origin ensure suitability for government or regulated enterprise networks
  • Lifetime hardware warranty with advanced replacement minimizes operational risk and long-term cost

Product Overview

The Cisco Meraki MR57 is a powerful Wi-Fi 6E indoor access point engineered for high-density enterprise environments. Featuring tri-radio support across the 2.4 GHz, 5 GHz, and 6 GHz bands, it delivers fast and efficient wireless performance with support for the 802.11ax standard while maintaining compatibility with legacy Wi-Fi protocols.

Installation is simplified through support for 802.3at/bt Power over Ethernet standards, although a power adapter is not included. Its TAA compliance and manufacture in Taiwan make it suitable for regulatory-sensitive applications. It includes a lifetime hardware warranty with advanced replacement, ensuring uptime and reliability in business-critical deployments.

Specifications

Product Overview
Product Type Indoor Wireless Access Point
Model Cisco Meraki MR57
Mounting Options Ceiling or wall mountable
Form Factor Desktop / Ceiling-mount / Wall-mount
Product Weight 1.25 kg (2.76 lbs)
Power Options 802.3at PoE+, 802.3bt PoE, DC power (adapter not included)
Power Consumption (Typical) 33.5 W (PoE+), 36.8 W (PoE++)
Maximum Power Consumption 36.8 W
Processor Quad-core ARM processor

Wireless Features
Wi-Fi Standards IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6/6E)
Wireless Bands 2.4 GHz, 5 GHz, 6 GHz
MIMO Configuration 4x4 MIMO on each band
Maximum Spatial Streams 12 spatial streams
Max Data Rate - 2.4 GHz 1.147 Gbps
Max Data Rate - 5 GHz 2.4 Gbps
Max Data Rate - 6 GHz 4.8 Gbps
Antenna Type Integrated omni-directional antennas
Antenna Gain 5.6 dBi (2.4 GHz), 6.3 dBi (5 GHz), 6.1 dBi (6 GHz)
MU-MIMO Support Yes
OFDMA Support Yes
Band Steering Yes
Beamforming Support Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, IC, CE, RoHS, UL, EN61000-4-5
Safety Standards UL 60950-1, IEC 60950-1, EN 60950-1

Advanced Security Features
Integrated Firewall Layer 3 & 7 firewall with traffic shaping
WIDS/WIPS Yes, Wireless Intrusion Detection & Prevention System
Role-Based Access Control Yes
Client Isolation Yes
NAC Integration Yes
Secure Guest Access Yes, with splash page and captive portal options
802.1X RADIUS Authentication Yes
VPN Passthrough Yes

Interfaces
Ethernet Ports 2 x 2.5G Multigigabit Ethernet (RJ-45)
PoE Support Yes - 802.3at / 802.3bt
Console Port 1 x RJ45 (for setup and troubleshooting)
Data Transfer Rate Up to 9.6 Gbps aggregate wireless throughput
LAN Interface Type 2.5GBASE-T Ethernet

Physical & Environmental
Dimensions (W x D x H) 259 mm x 182 mm x 36 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Relative Humidity (Operating) 5% to 95% non-condensing
Enclosure Protection Indoor-rated plastic enclosure

Cloud Management & Licensing
Management Platform Cisco Meraki cloud-based dashboard
Cloud License Required Yes, Meraki Enterprise License
Zero Touch Provisioning Yes
Remote Management Yes
Monitoring & Alerts Yes, via Meraki Dashboard
