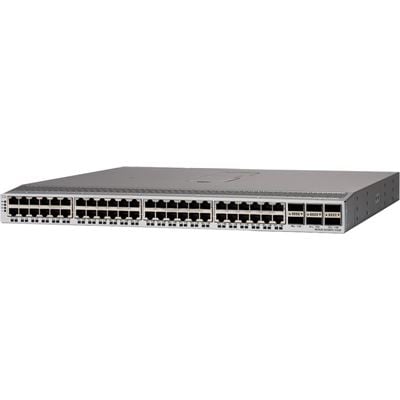

CISCO N9K-C93108TC-FX3P 48-Port POE++ Switch with 6x 100G Uplinks

VENDOR: CISCO Mfg Part#: N9K-C93108TC-FX3P UPC#: 889728265058
  • Limited avail, 48x 100M/1/2.5/5/10GT,6x 100G, POE++ capable
1 1
Photo is for illustration purposes only. Actual product may be different.
$18,772.49
$18,772.49
Sale Sold out
MSRP: $36,180.00
Shipping calculated at checkout.
  • 48 ports supporting 100M/1G/2.5G/5G/10G Ethernet speeds
  • 6 uplink ports supporting 100G high-speed connectivity
  • POE++ capable for powering high-demand devices (e.g., APs, IP cameras)
  • TAA compliant for use in government and regulatory environments
  • Supports diverse country-of-origin options: Brazil, China, Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed network performance with 100G uplinks and multi-speed downlink ports.
  • Integrated POE++ support enables simplified deployment of power-reliant edge devices.
  • TAA compliance makes it suitable for federal and enterprise sector installations.

Product Overview

The CISCO N9K-C93108TC-FX3P is a feature-rich enterprise-grade network switch designed to meet the demands of high-performance infrastructure. With 48 auto-negotiating ports supporting 100M to 10G Ethernet and 6 x 100G uplinks, it provides high-throughput connectivity for modern networks. All ports are POE++ capable, making it suitable for power-demanding endpoint devices. Supporting TAA compliance and multiple countries of origin, this switch is ready for deployment in regulated and international procurement environments. Ideal for expanding enterprise networks or consolidating data center operations, it offers a scalable and reliable switching solution.

Specifications

Product Overview
Product Type Layer 3 Managed Network Switch
Model CISCO N9K-C93108TC-FX3P
Form Factor 1U Rack-Mountable
Series Nexus 9300-FX3
Power Requirements AC 100–240V, 50–60Hz
Maximum Power Consumption 1225W
PoE Support Yes, PoE++ (IEEE 802.3bt)
Total PoE Budget 830W
Weight 21.22 lbs (9.63 kg)

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Brazil / China / Mexico
TAA Compliant Yes
Certifications UL, CE, FCC Class A, RoHS, VCCI, BSMI, CCC
EMI Standards EN 55032 Class A
Safety Standards UL 60950-1, IEC 60950-1

Advanced Security Features
Access Control 802.1X, RADIUS, TACACS+
DHCP Snooping Yes
Dynamic ARP Inspection Yes
Storm Control Yes
Control Plane Policing (CoPP) Yes
IPv6 First-Hop Security Yes
Port Security Yes
MACsec Encryption Yes, on uplink ports

Interfaces
Downlink Ports 48 x 100M/1/2.5/5/10GBASE-T (Auto-negotiating)
Uplink Ports 6 x 100G QSFP28
Console Ports 1 x RJ-45 Console, 1 x USB Type-B Console
Management Ports 1 x 10/100/1000BASE-T Ethernet
USB Ports 1 x USB 2.0 Type-A
Switching Capacity 2.6 Tbps
Forwarding Rate 1.2 Bpps
MAC Address Table Size 128,000 entries
Jumbo Frame Support Up to 9216 bytes

Physical & Environmental
Dimensions (H x W x D) 1.72 x 17.3 x 22.5 in (4.37 x 43.94 x 57.15 cm)
Operating Temperature Range 32°F to 104°F (0°C to 40°C)
Storage Temperature Range -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 95% non-condensing
Heat Dissipation 4179 BTU/hr
Cooling Front-to-Back or Back-to-Front airflow (configurable fans)
Rack Units 1U

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, REST API, SSH, SNMP, Cisco Data Center Network Manager (DCNM)
Software Licensing NX-OS Essentials or Advantage License required
Cloud Managed No – Locally Managed
Supported Automation Frameworks Ansible, Puppet, Chef via NX-API
