Products Network Stuff CISCO NCS-55A1-36H Base HW ...

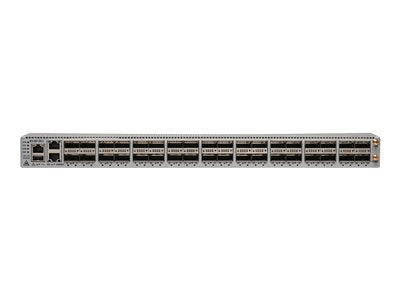

CISCO NCS-55A1-36H Base HW Flexible Consumption Switch

VENDOR: CISCO Mfg Part#: NCS-55A1-36H-SYS UPC#: 889728139915
  • NCS-55A1-36H Base HW Flexible Consumptio
1 1
Photo is for illustration purposes only. Actual product may be different.
$179,963.17
$179,963.17
Sale Sold out
MSRP: $263,946.00
Shipping calculated at checkout.
  • Smart Licensing-enabled hardware platform
  • TAA compliant for federal procurement
  • Made in the United States
  • Base hardware design from Cisco's NCS line

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Complies with TAA regulations, making it suitable for U.S. federal contracts.
  • Smart Licensing feature allows for flexible consumption models and simplified license management.
  • Manufactured in the United States, meeting origin requirements for sensitive deployment environments.

Product Overview

The CISCO NCS-55A1-36H Base HW Flexible Consumption Switch delivers Smart Licensing integration and aligns with TAA compliance policies, making it a suitable choice for enterprise and government deployments. Manufactured in the United States, it offers a foundation for scalable, flexible networking applications. Although specific performance specifications are unavailable, this model fits within Cisco’s high-performance networking family, aimed at demanding connectivity environments.

Specifications

Product Overview
Product Type Carrier-grade Ethernet Switch
Model NCS-55A1-36H
Form Factor 1 RU rack-mountable
Chassis Type Fixed system
Weight Approximately 18.6 lbs (8.4 kg)
Power Requirements AC or DC (modular options)
Power Redundancy Yes, redundant power supply supported
Power Consumption (Typical) 515W typical
Cooling Type Front-to-back or back-to-front airflow (field configurable)

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
RoHS Compliance Yes
Electromagnetic Compliance FCC Class A, ETSI EN 300 386
Safety Certifications UL 60950-1, IEC 60950-1, EN 60950-1
NEBS Level NEBS Level 3

Advanced Security Features
Access Control Lists (ACLs) Supported
MACsec Encryption Supported
Control Plane Protection Supported
Traffic Telemetry Integrated telemetry for network visibility

Interfaces
Port Types QSFP28, QSFP+ and SFP+
Total Ports 36 x 100Gbps QSFP28 ports
Breakout Support Yes, 100G ports can break out to 4x25G or 4x10G
Maximum 10G Ports 144 x 10GbE using breakouts
Maximum 25G Ports 144 x 25GbE using breakouts
Maximum 100G Ports 36 x 100GbE
Console Port 1 x RJ-45 serial console port
Management Port 1 x 10/100/1000 Mbps RJ-45
USB Port 1 x USB Type A 2.0 for file storage
Throughput 7.2 Tbps full-duplex
Packet Forwarding Rate up to 2.16 Bpps
MAC Address Table Size 288,000 entries

Physical & Environmental
Dimensions (W x D x H) 17.3 x 22.9 x 1.72 in (439 x 582 x 43.6 mm)
Operating Temperature 32 to 104°F (0 to 40°C)
Non-operating Temperature -40 to 158°F (-40 to 70°C)
Operating Humidity 5% to 85% (non-condensing)
Non-operating Humidity 5% to 95% (non-condensing)
Altitude (Operating) Up to 13,123 ft (4000 m)
MTBF 476,840 hours
Cooling Redundancy Yes, N+1 fan redundancy

Cloud Management & Licensing
Licensing Model Cisco Smart Licensing
Management Interface CLI, NETCONF, gRPC, SNMP, RESTCONF
Telemetry Support Model-driven telemetry via gNMI and gRPC
Software Version Cisco IOS XR
Flexible Consumption Model Supported
