D-LINK Nuclias Cloud Managed AC1900 Wave 2 PoE Access Point

VENDOR: D-LINK Mfg Part#: DBA-2520P UPC#: 790069448195
1 2

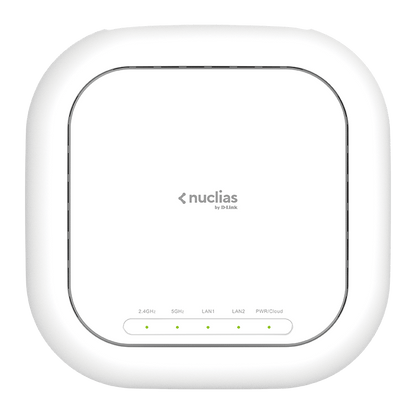

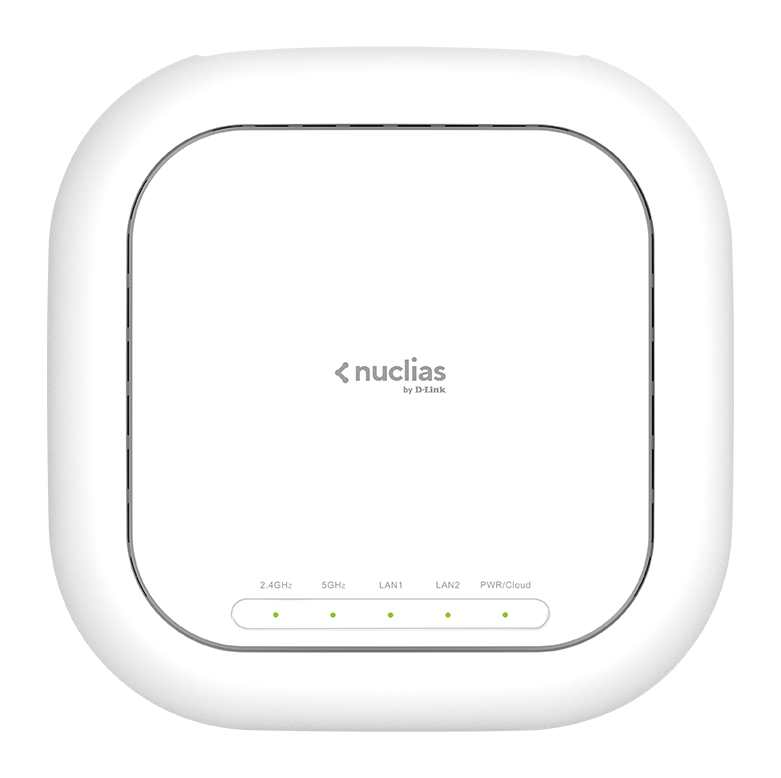

Photo is for illustration purposes only. Actual product may be different.
$284.99
$284.99
Sale Sold out
Shipping calculated at checkout.
  • Supports 802.11ac Wave 2 with dual-band (2.4 GHz and 5 GHz) delivering speeds up to 1.9 Gbps
  • PoE support with 1 x 1000Base-T PoE port for simpler installation
  • Includes internal antennas and is designed for indoor, wall/ceiling mount deployment
  • 14 SSIDs supported for network segmentation
  • Advanced security: WPA3 encryption, RADIUS authentication, MAC filtering
  • Nuclias Cloud-managed for remote configuration and monitoring

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed, multi-user connectivity with MU-MIMO and AC1900 performance, ideal for modern enterprise environments
  • Simplifies deployment and reduces infrastructure costs using Power-over-Ethernet and remote cloud management
  • Enhances security and scalability with support for 14 SSIDs, WPA3 encryption, and TAA compliance

Product Overview

The D-LINK Nuclias DBA-2520P is a cloud-managed AC1900 Wave 2 wireless access point designed for indoor, enterprise-grade deployments. It supports dual-band Wi-Fi with data rates up to 1.9 Gbps, leveraging MU-MIMO and 3T3R MIMO technologies. With 14 configurable SSIDs and two Gigabit Ethernet ports (including PoE), it is ideal for streamlined, scalable network solutions. Integrated with the Nuclias Cloud platform, it enables remote configuration and monitoring, while offering strong security through WPA3 and RADIUS authentication.

Specifications

Product Overview
Product Type Wireless Access Point
Form Factor Wall / Ceiling Mountable - Indoor
Wi-Fi Rating AC1900
Data Transfer Rate 1.9 Gbps
Ruggedized Design Indoor
Power Over Ethernet (PoE) Supported Yes
Status Indicators Power, Status
Antenna Type Internal
Mounting Options Wall / Ceiling
Radio Chains 3T3R MIMO
MU-MIMO Support Yes

Wireless Features
Frequency Band 2.4 GHz, 5 GHz
Wi-Fi Standards 802.11a/b/g/n/ac Wave 2
SSID Support Up to 14 SSIDs
Wireless Technology Dual-Band
MIMO Technology 3T3R MIMO

Compliance & Origin
Compliant Standards IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az, IEEE 802.11a/b/g/n/ac Wave 2
TAA Compliance Yes
Country of Origin Taiwan

Advanced Security Features
Authentication Method RADIUS
Encryption Algorithm WPA, WPA2, WPA3
MAC Address Filtering Yes
DHCP Server Yes
Security Slot Yes (Kensington Security Lock Compatible)

Interfaces
Ethernet Ports 2 x Gigabit Ethernet (1 x PoE)
Console Port 1 x RJ-45
Network Interface Type 1000Base-T
Interface Type RJ-45
Data Link Protocols IEEE 802.11a/b/g/n/ac Wave 2
Link Aggregation LACP Supported

Physical & Environmental
Width 8.8 in
Depth 8.8 in
Height 2 in
Dimensions (WxDxH) 8.8 in x 8.8 in x 2 in
Cooling Type Passive

Cloud Management & Licensing
Cloud-Managed Yes
Cloud Platform Nuclias Cloud
Remote Configuration Supported
Remote Monitoring Supported
Firmware Upgrade Method Cloud-based
