Eaton 93PM UPS 40KW 480V In / 208/120V Out Tower (9PA02N6020H20R2)

VENDOR: EATON Mfg Part#: 9PA02N6020H20R2
1 2

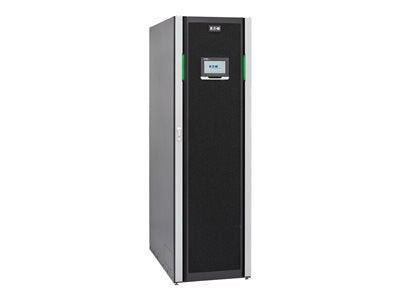

Photo is for illustration purposes only. Actual product may be different.
$46,259.76
$46,259.76
Sale Sold out
MSRP: $71,665.00
Shipping calculated at checkout.
  • 40KW UPS system with 480V input and 208/120V output
  • Tower form factor for space-efficient deployment
  • Includes 3-breaker Maintenance Bypass Switch (MBS)
  • Supports up to 65KAIC fault current tolerance
  • VRLA battery technology for reliability and low maintenance
  • TAA compliant and made in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers robust 40KW power capacity suitable for enterprise-grade critical systems
  • High short-circuit tolerance (65KAIC) increases safety and reliability in fault-prone environments
  • TAA compliance and U.S. manufacturing support deployment in government or regulated sectors

Product Overview

EATON 93PM 480V IN, 208/120V OUT; 40KW 3 BREAKER MBS 65KAIC NO COMMUNICATIONS

Specifications

Product Overview
Product Type Uninterruptible Power Supply (UPS)
Model Eaton 93PM
Part Number 9PA02N6020H20R2
Form Factor Tower
Power Capacity 40 kW
Power Output Type 208/120V
Power Input Type 480V 3-phase
Battery Type Valve-Regulated Lead Acid (VRLA)
Bypass Type 3 Breaker Maintenance Bypass Switch (MBS)
Short Circuit Withstand 65 kAIC
Redundancy N+1 redundancy capable
Efficiency Up to 97% in double conversion mode
Frequency Required 50/60 Hz auto-sensing
Topology Double Conversion (Online)
Scalability Scalable architecture for internal redundancy

Wireless Features

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, cUL Listed, CE, RoHS compliant
Environmental Standards REACH, WEEE

Advanced Security Features
Secure Network Management Optional with Network-M2 card (SNMPv3, encrypted protocols)
Event Logging Yes, when equipped with network card
Firewall Protection Not applicable – UPS does not include firewall features

Interfaces
Input Connection Type Hardwired - 3 phase
Output Connection Type Hardwired - 3 phase
Communication Slots 1 x communication bay (no card installed by default)
Available Interface Options SNMP/Web card, Modbus, Relay I/O (optional accessories)

Physical & Environmental
Width 22 in
Depth 42 in
Height 74 in
Weight Approximately 1200 lbs (545 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -13°F to 158°F (-25°C to 70°C)
Operating Humidity 0% to 95% non-condensing
Noise Level 72 dBA at 1 meter
Cooling Method Forced air, front to top airflow
Color Black/Gray

Cloud Management & Licensing
Communication Management No communication module installed by default
Cloud Monitoring Support Supports Eaton Gigabit Network Card (optional)
Licensing Model No license required for base unit; cloud features optional with paid software
