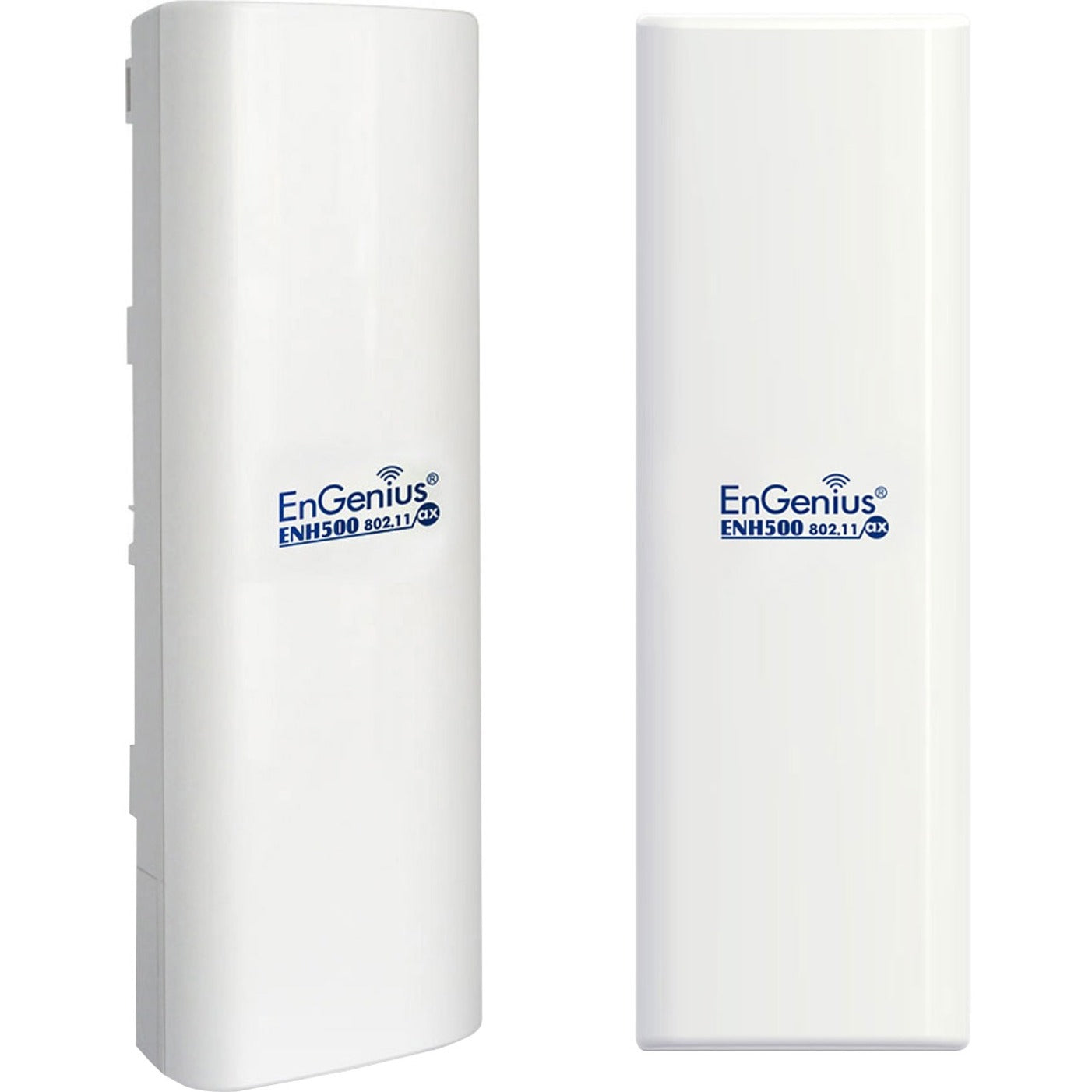

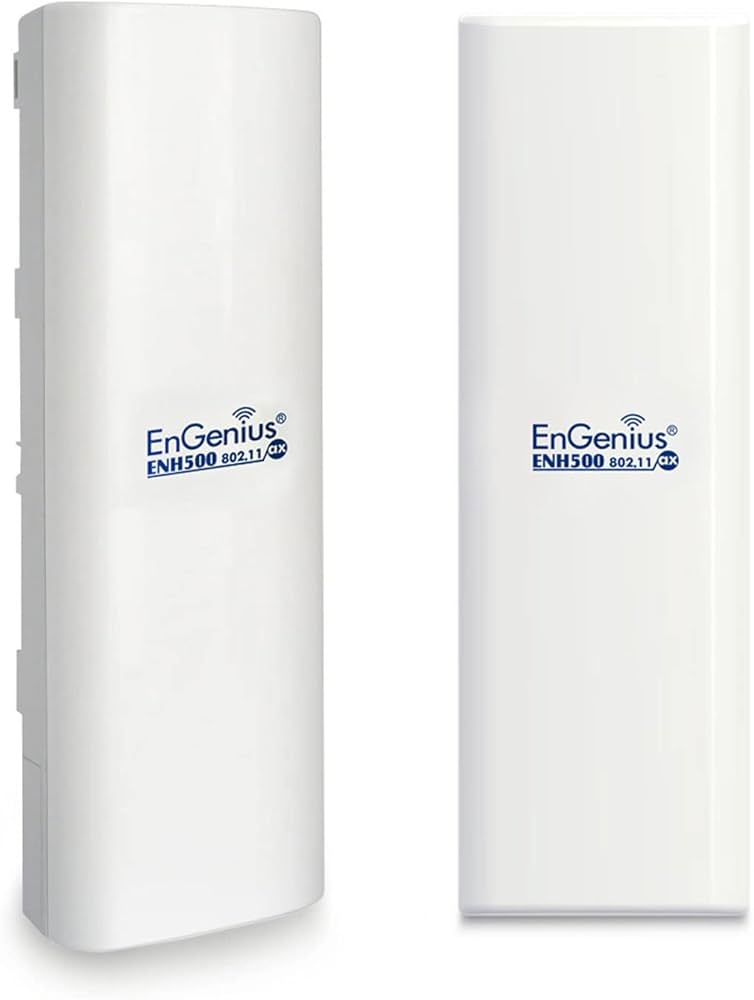

ENGENIUS ENH500-AX KIT 5GHz Wi-Fi 6 Outdoor Bridge (2 Units)

VENDOR: ENGENIUS Mfg Part#: ENH500-AX KIT UPC#: 655216011076
1 3
Photo is for illustration purposes only. Actual product may be different.
$386.13 USD
$386.13 USD
Sale Sold out
MSRP: $429.00
Shipping calculated at checkout.
  • Dual 5GHz Wi-Fi 6 (802.11ax) access points with up to 1,200 Mbps throughput
  • Ruggedized outdoor design with IP55 rating; operates from -4°F to 140°F
  • Qualcomm Quad Core Cortex-A53s 1 GHz processor for performance and efficiency
  • Includes 2 internal directional antennas and supports MU-MIMO, OFDMA
  • Secure connectivity with WPA3, WPA2, AES, and VLAN tagging options
  • Comprehensive remote management via SNMP v1/v2c/v3 with MIB support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed wireless bridging up to 1,200 Mbps without the cost of fiber infrastructure
  • Outdoor-rated enclosure with wide temperature range ensures reliable performance in harsh environments
  • Comes as a complete kit with mounting accessories and PoE for quick deployment and lower installation costs

Product Overview

The ENGENIUS ENH500-AX KIT includes two high-performance wireless access points designed for creating a point-to-point wireless bridge using the latest Wi-Fi 6 technology at 5 GHz. Built with a Qualcomm Quad Core ARM Cortex-A53s 1 GHz processor and directional internal antennas, this kit supports speeds up to 1,200 Mbps, providing dependable, high-throughput connectivity between buildings. Its ruggedized IP55-rated external housing supports operation in temperatures from -4 °F to 140 °F, making it ideal for outdoor use.

Advanced wireless protocols such as 802.11a/b/g/n/ac/ax, OFDMA, and MU-MIMO ensure stability and high performance. Enterprise-grade security features like WPA3 and AES encryption are included, along with SSID isolation, VLAN management, and MAC filtering. Remote management is enabled through SNMP with MIB support. The kit includes complete mounting accessories and PoE injectors for simplified deployment in campus or corporate environments, offering a strong ROI by eliminating the need for fiber cabling.

Specifications

Product Overview
Product Type Wireless Access Point Bridge Kit
Kit Contents 2 x ENH500-AX Access Points
Form Factor External - Outdoor
Processor Qualcomm Quad Core ARM Cortex-A53s - 1 GHz
Max Throughput (5 GHz) 1200 Mbps
Power Requirements PoE (Power over Ethernet)
Power Consumption 12.5 Watts
Ruggedized Design Yes (Outdoor, IP55-rated)
Weight (per unit) 21.51 oz
Mounting Options Pole mount, wall mount

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequency Band 5 GHz
Wireless Performance MU-MIMO, SU-MIMO, Beamforming, OFDMA
Antenna Type Internal, Directional
Antenna Quantity 2
SSID Capacity 8 SSIDs
Wireless Security WPA2, WPA3, WPA2-Enterprise, WPA3-Enterprise, SAE, AES Encryption
Other Wireless Features SSID Isolation, WMM Support, Hidden SSID, VLAN Tagging, WDS Modes

Compliance & Origin
Compliant Standards IEEE 802.1D, 802.1Q, 802.11e, FCC, IP55
Country of Origin Taiwan
TAA Compliance Yes

Advanced Security Features
MAC Address Filtering Supported
VLAN Management Supported
Client Isolation Supported

Interfaces
Network Ports 2 x 1000Base-T (RJ-45)
Interface Type Gigabit Ethernet
Line Coding Format CCK, BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM
Status Indicators Power, WLAN, LAN, Signal

Physical & Environmental
Dimensions (W x D x H) 2.2 in x 10.2 in x 3.3 in
Min Operating Temperature -4 °F
Max Operating Temperature 140 °F
Humidity Range (Operating) 0 - 90% (non-condensing)
Shipping Dimensions (W x D x H) 5 in x 12.1 in x 4.8 in
Shipping Weight 2.36 lbs

Cloud Management & Licensing
Remote Management Protocols SNMP v1/v2c/v3 with MIB support
Cloud Managed No (SNMP-based remote management)
