| Device Type | Wireless Access Point |
| Model | AP4000-IL |
| Product Series | ExtremeWireless |
| Form Factor | Indoor mountable – ceiling or wall |
| Radio Configuration | Tri-Radio (2.4GHz, 5GHz, 6GHz) |
| Processor | Quad-core ARM processor |
| Internal Antennas | Yes |
| Power Supply | PoE+ (802.3at) or DC power adapter |
| Power Consumption | 25.5W max (PoE+) |
| Mounting Options | T-Bar bracket included (AH-ACC-BKT-AX-TB) |
| Weight | 1.6 lbs (0.73 kg) |

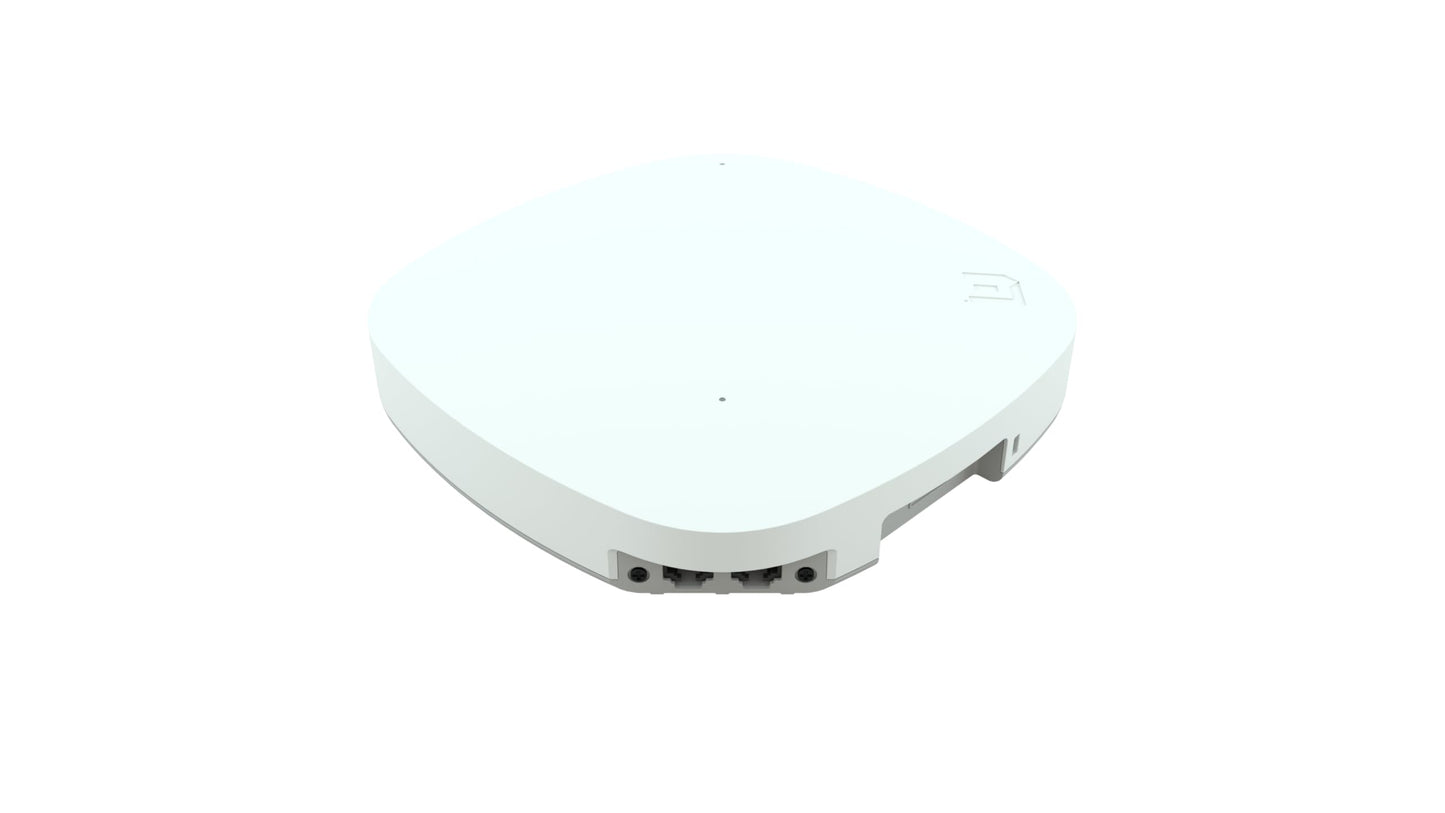

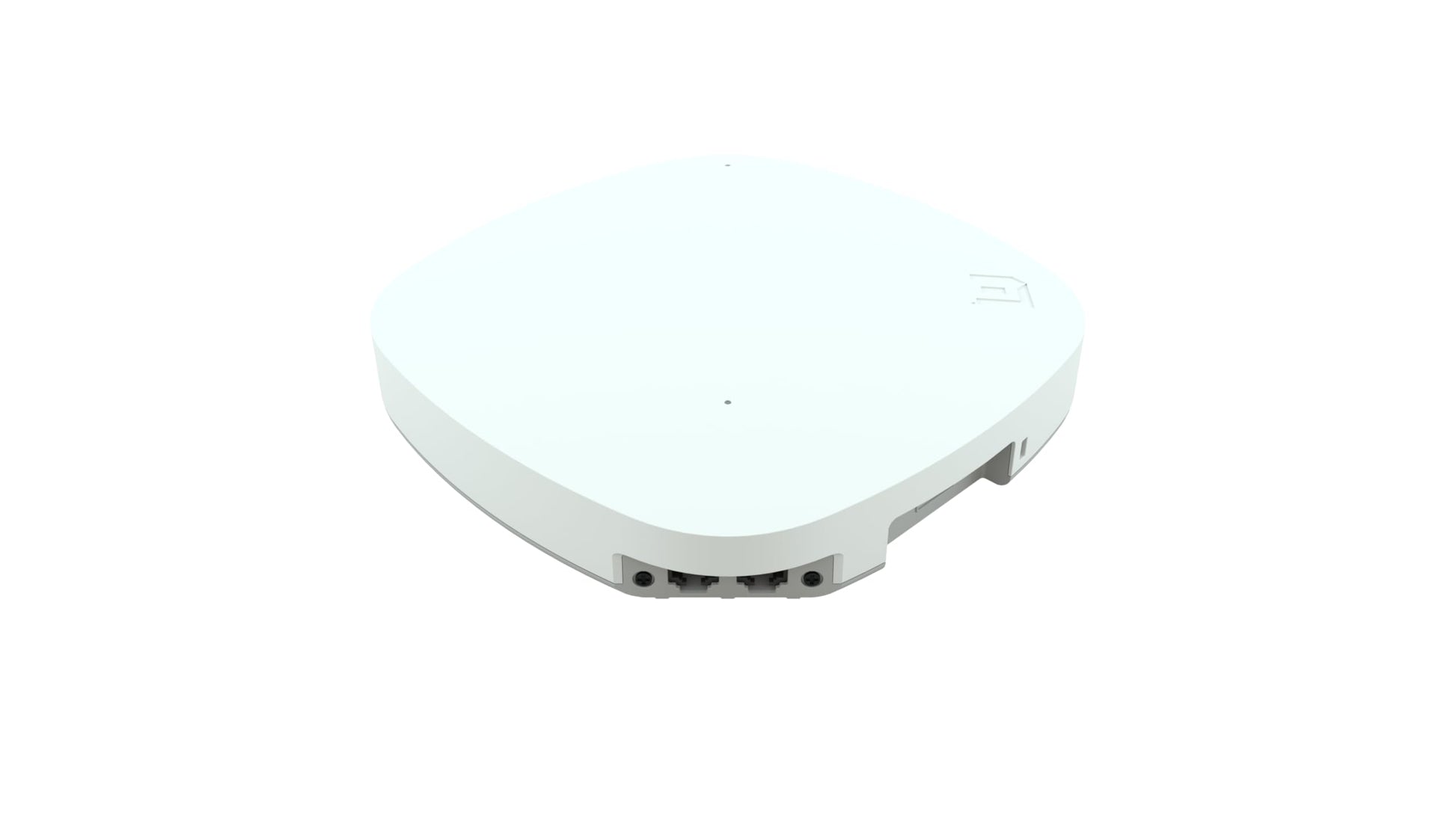

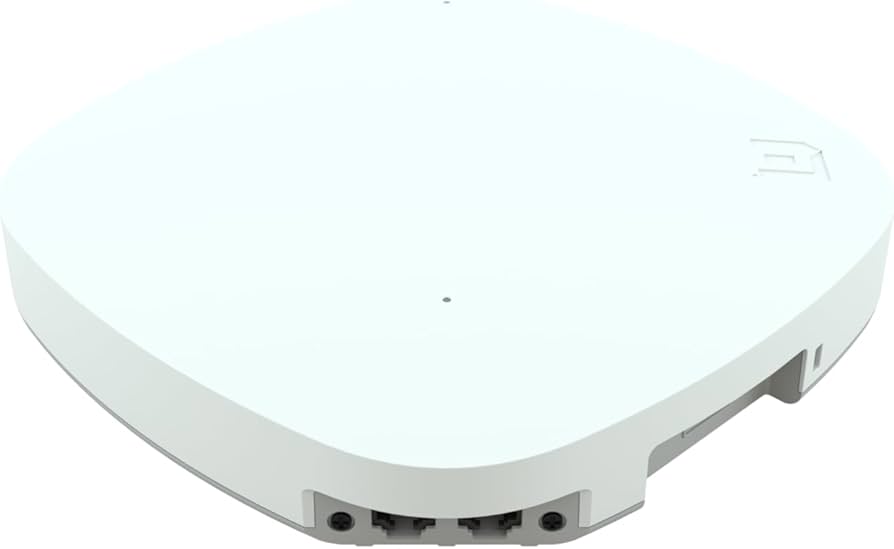

EXTREME NETWORK AP4000-IL Indoor Tri-Radio WiFi 6E Access Point
Photo is for illustration purposes only. Actual product may be different.
Regular price
$867.83 USD
Regular price
Sale price
$867.83 USD
Unit price
per
MSRP: $1,249.00
Shipping calculated at checkout.
Couldn't load pickup availability
- - Tri-radio WiFi 6E support: 2.4 GHz, 5 GHz, and 6 GHz
- - Integrated BLE and Zigbee modules for IoT support
- - AI/ML-driven green mode for intelligent power management
- - Built-in light and power sensors
- - Internal antennas with T-Bar mount included
- - TAA compliant; country of origin: Taiwan
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- - Supports the latest WiFi 6E standard with tri-radio capability for exceptional network efficiency and capacity.
- - Onboard sensors and IoT readiness (BLE/Zigbee) deliver added value for smart environment applications.
- - AI-enabled green mode reduces energy consumption, contributing to operational cost savings.
Product Overview
Indoor Tri Radio WiFi 6E AP 2.4 GHz 5GHz 6GHz Multirate Port. Integrated Light power sensors BLE/Zigbee. AI/ML green mode. INT antennas. T-Bar Incl Mt (AH-ACC-BKT-AX-TB). Domain IsraelSpecifications
Product Overview
Wireless Features
| Wi-Fi Generation | Wi-Fi 6E (802.11ax) |
| Supported Bands | 2.4 GHz, 5 GHz, 6 GHz |
| MIMO | 4x4:4 for each radio |
| Maximum Data Rate per Band | 2.4GHz: 1.147 Gbps / 5GHz: 2.4 Gbps / 6GHz: 4.8 Gbps |
| Antennas | Internal omnidirectional antennas |
| MU-MIMO Support | Yes |
| OFDMA Support | Yes |
| Beamforming | Yes |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | UL 60950-1, UL 62368-1, EN 60950-1, IEC 62368-1, FCC Part 15 Class B, CE Mark |
Advanced Security Features
| WPA Versions Supported | WPA2, WPA3 |
| MAC Address Filtering | Yes |
| IDS/IPS | Yes – integrated wireless intrusion detection/prevention |
| Rogue AP Detection | Yes |
| Zero Trust Network Access | Supported via ExtremeCloud IQ |
| Secure Boot | Yes |
Interfaces

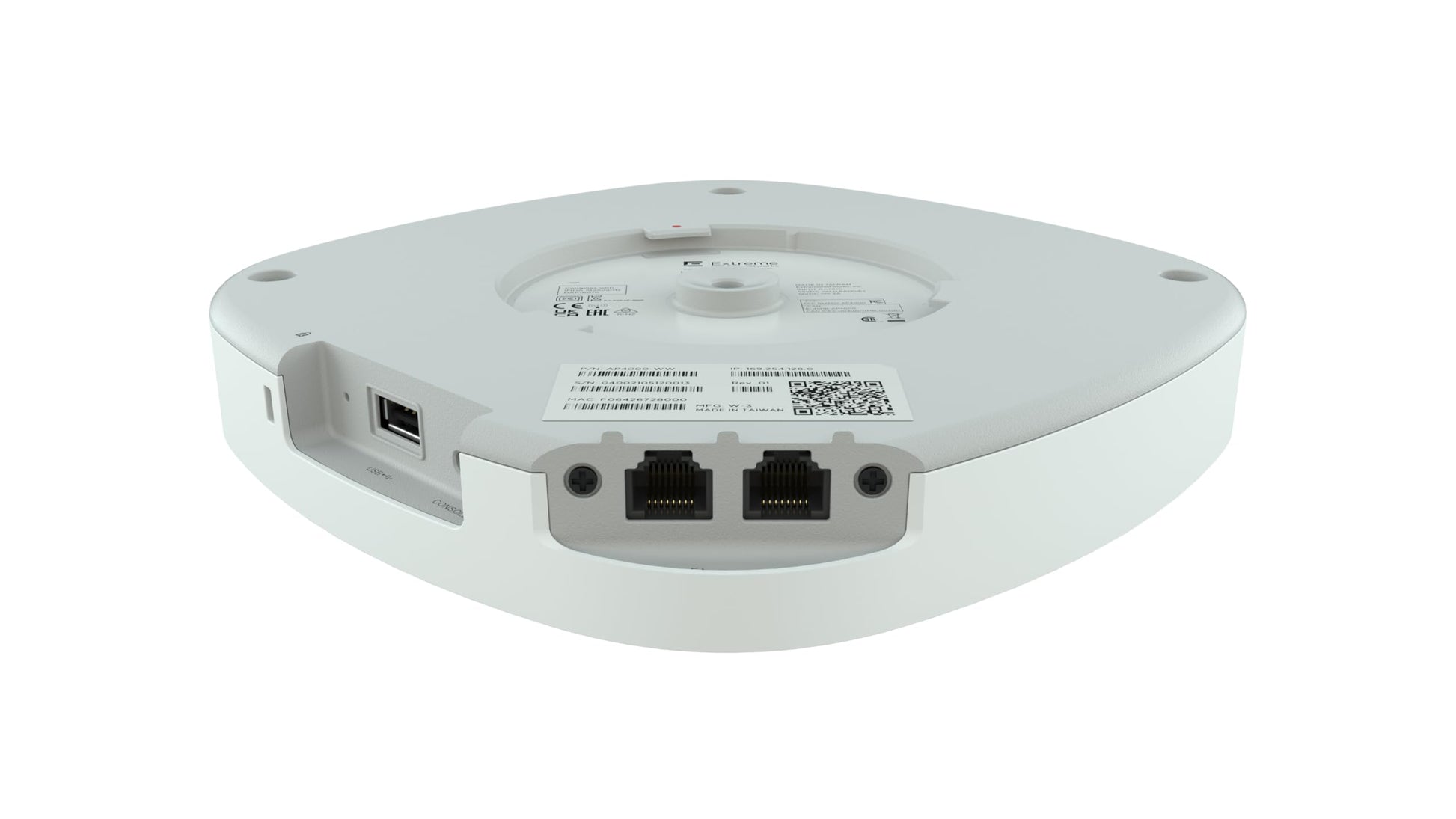

| Ethernet Ports | 1 x 2.5G Multigig Ethernet (RJ-45), 1 x 1G Ethernet (RJ-45) |
| USB Ports | 1 x USB 2.0 Type A |
| Bluetooth / Zigbee | Yes – Integrated BLE/Zigbee radio |
| Sensor Ports | Integrated IoT sensor support (light, power) |
| Data Transfer Rate | Up to 10.2 Gbps aggregate |
| Console Port | 1 x RJ-45 (management) |
Physical & Environmental
| Dimensions (W x D x H) | 9.44 in x 9.44 in x 1.83 in (240 mm x 240 mm x 46.4 mm) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 95% non-condensing |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
Cloud Management & Licensing
| Management Platform | ExtremeCloud IQ |
| AI/ML Capabilities | Yes – Adaptive learning and green mode optimization |
| Cloud Licensing Required | Yes – Subscription-based ExtremeCloud IQ licensing |
