| Product Type | Managed Switch |
| Model | 5520-24X-ACDC-BASE |
| Form Factor | 1U Rack-Mountable |
| Weight | 6.25 kg |
| Power Supply Type | Modular AC or DC (Sold Separately) |
| Number of Power Supply Bays | 2 |
| Fan Modules | 3 modular fan slots (unpopulated) |
| Noise Level | Less than 65 dB |
| Redundant Power Supply Support | Yes |
Extreme Networks 5520-24X-ACDC-BASE 24-Port SFP+ Switch

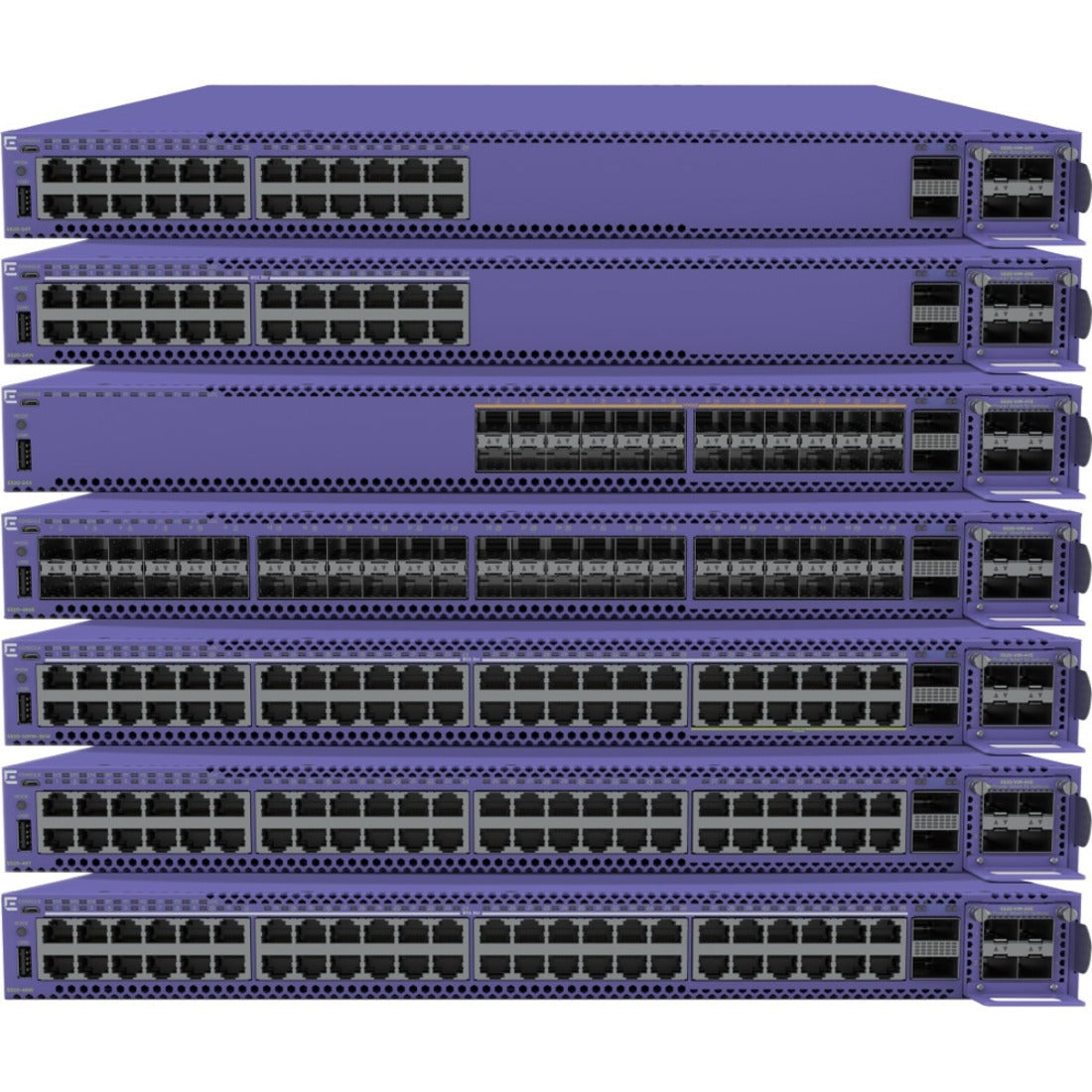

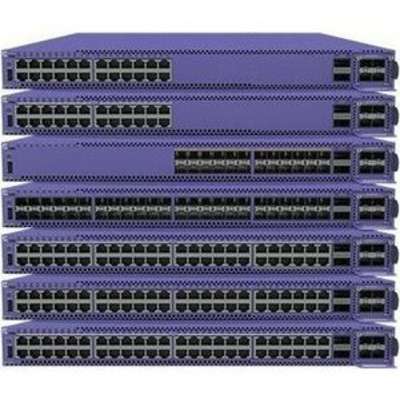

Photo is for illustration purposes only. Actual product may be different.
Regular price
$11,005.23
Regular price
Sale price
$11,005.23
Unit price
per
MSRP: $15,839.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 24x 100M/1G/10GBASE-X SFP+ ports for high-speed connectivity
- 2 stacking/QSFP28 ports for uplinks or switch stacking
- Modular architecture with 1 unpopulated VIM slot, 3 fan slots, and 2 PSU slots
- Dual power support: compatible with both AC and DC power inputs
- Form factor: 1U rack-mountable unit measuring 17.36" x 17.4" x 1.73"
- Total data transfer rate of up to 50 Gbps
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Designed for scalable enterprise environments with high-density 10Gb connectivity
- Modular fan, VIM, and PSU slots enable flexible upgrades and long-term investment protection
- TAA compliant and manufactured in Taiwan, suitable for regulated industries and government procurement
Product Overview
5520 24 1Gb/10Gb SFP+ ports 2 stacking/QSFP28 ports 1 unpopulated VIM slot 3 unpopulated modular fan slots 2 unpopulated modular PSU slots AC or DC PSU capabe.Specifications
Product Overview
Physical & Environmental
| Dimensions (W x D x H) | 17.36 x 17.4 x 1.73 in (441 x 442 x 44 mm) |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 95% non-condensing |
| Storage Humidity | 10% to 95% non-condensing |
| MTBF | 500,000 hours (calculated) |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | UL, cUL, IEC/EN 60950-1, CISPR 22 Class A, FCC Class A, ICES-003 Class A, VCCI Class A |
| RoHS Compliant | Yes |
| WEEE Compliant | Yes |
Advanced Security Features
| Access Control Lists (ACLs) | Yes, L2/L3/L4 ACLs |
| MACsec (802.1AE) | Supported on select ports |
| DHCP Snooping | Yes |
| Dynamic ARP Inspection | Yes |
| IP Source Guard | Yes |
| 802.1X Network Access Control | Yes |
| RADIUS / TACACS+ Authentication | Yes |
Interfaces
| Total Ports | 31 |
| SFP+ Ports | 24 x 1Gb/10Gb SFP+ |
| QSFP28 / Stacking Ports | 2 x 40Gb/100Gb QSFP28 |
| VIM Slot | 1 x Unpopulated VIM Slot |
| Data Link Protocols | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Switching Capacity | 880 Gbps |
| Forwarding Rate | 654 Mpps |
| MAC Address Table Size | 128K entries |
| VLAN Support | 802.1Q VLAN Tagging, up to 4,094 VLANs |
| Spanning Tree Protocol | IEEE 802.1D, 802.1w, 802.1s |
Wireless Features
| Wireless Support |
Cloud Management & Licensing
| Management Interface | ExtremeCloud IQ, CLI, SNMPv1/v2c/v3, web-based GUI |
| Cloud Enabled | Yes |
| Licensing Model | Base unit—licenses and power supply sold separately |
| Management Protocols | SNMP, RMON, SSH, Telnet, HTTPS, Syslog |
| Zero Touch Provisioning | Supported |
