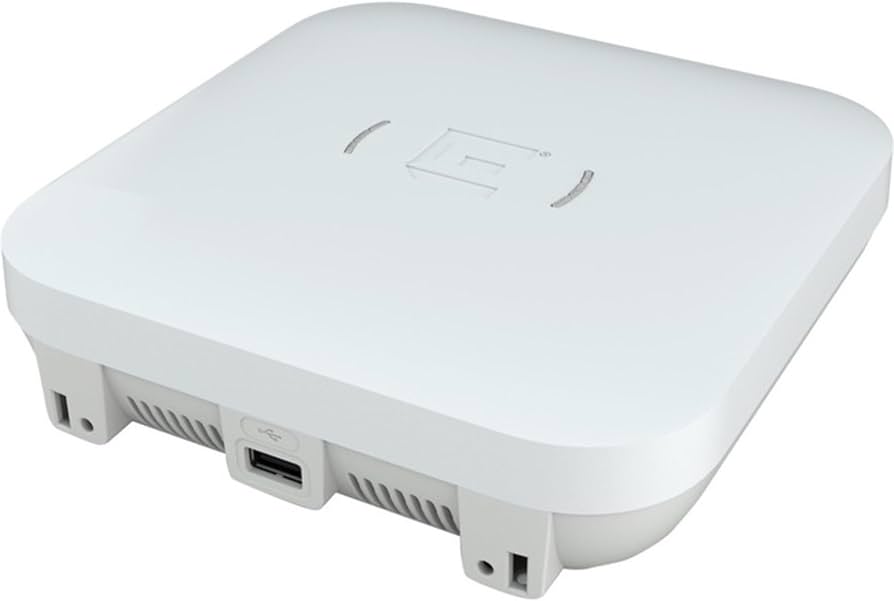

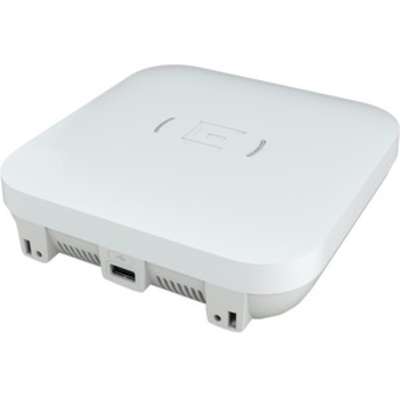

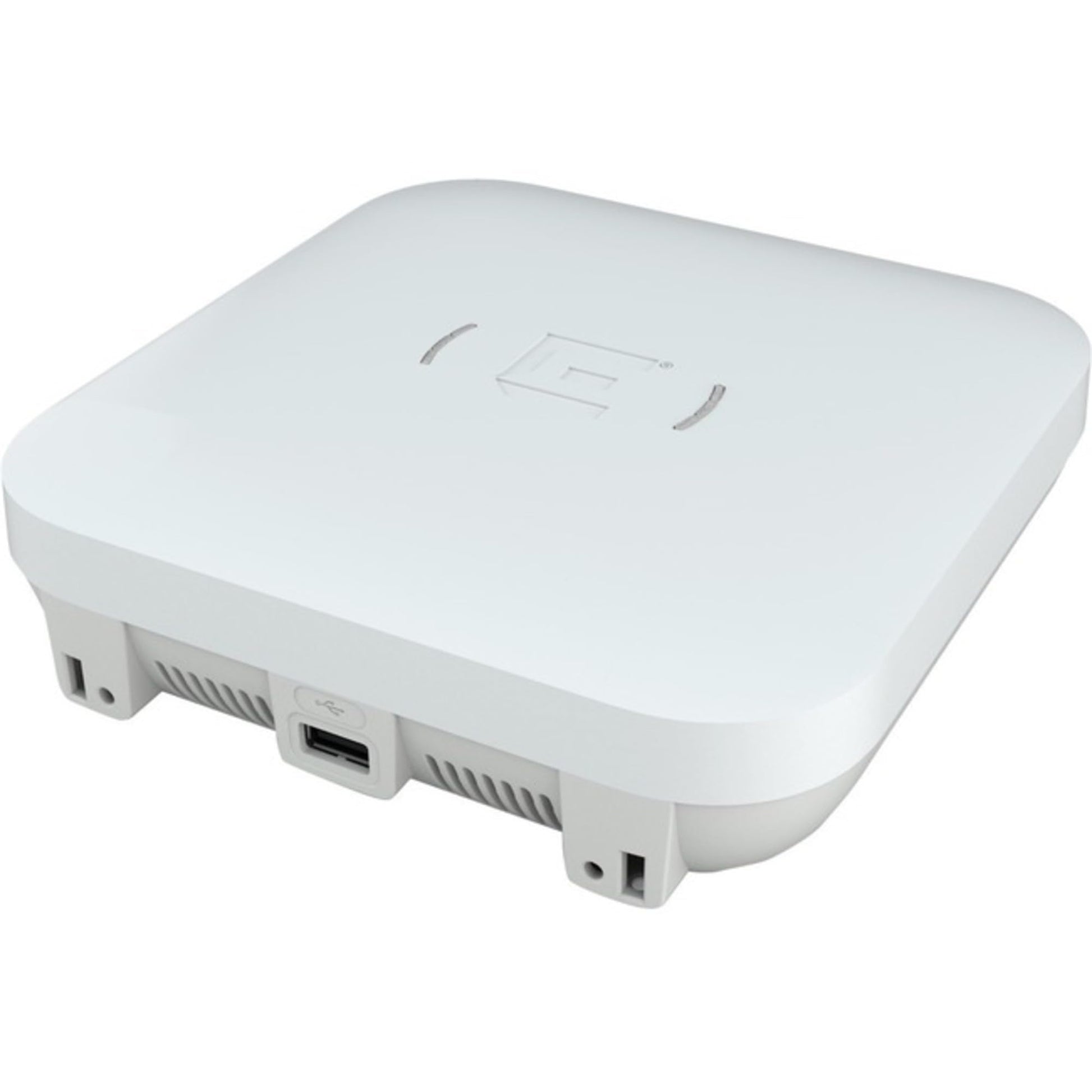

Extreme Networks AP310I-1-WR Wi-Fi 6 Dual-Radio Access Point

VENDOR: EXTREME NETWORK INC Mfg Part#: AP310I-1-WR
1 3
Photo is for illustration purposes only. Actual product may be different.
$527.36
$527.36
Sale Sold out
MSRP: $759.00
Shipping calculated at checkout.
  • Supports IEEE 802.11ax (Wi-Fi 6) for high-speed wireless networking
  • Dual-radio configuration for enhanced performance in crowded environments
  • 2x2:2 MIMO allows efficient spatial streaming and coverage
  • Internal antennas for cleaner installations and reduced tampering risk
  • Compact design: 6.4" width, 6.4" depth, 1.7" height
  • TAA compliant and manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers next-gen wireless performance using Wi-Fi 6 and dual 5G radios for high-density environments
  • Compact, aesthetically neutral design makes it ideal for discreet indoor installations across enterprise settings
  • TAA compliance ensures suitability for government and regulated industry procurement

Product Overview

Dual Radio 802.11ax - 2x22 Dual 5G Indoor Internal Antenna Access Point. Wi-Fi 6 - Domain EMEA Rest of World

Specifications

Product Overview
Product Type Wireless Access Point
Model AP310I
Form Factor Ceiling mount, wall mount
Mounting Options Wall or ceiling mountable using mounting bracket (sold separately)
Power Requirements 802.3af PoE
PoE Class Class 3
Weight 0.77 lbs (350 g)

Wireless Features
Wi-Fi Standard 802.11a/b/g/n/ac/ax
Wi-Fi Generation Wi-Fi 6
Radio Configuration 2x2:2 MU-MIMO per radio
Maximum Theoretical Throughput 1.775 Gbps
Frequency Bands 2.4 GHz and 5 GHz concurrent
2.4 GHz Max Data Rate 574 Mbps
5 GHz Max Data Rate 1.201 Gbps
Antenna Type Internal antennas
Antenna Count Four total (two per radio)
MIMO Configuration 2x2:2 MU-MIMO
Beamforming Transmit Beamforming supported
Band Steering Supported
OFDMA Supported
BSS Coloring Supported

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL 60950-1, CAN/CSA-C22.2 No. 60950-1, IEC/EN 60950-1, CE, FCC Part 15, ICES-003
RoHS Compliance Yes

Advanced Security Features
WLAN Security WPA3, WPA2, WPA
Wireless Intrusion Prevention System (WIPS) Supported
Authentication Methods 802.1X, PSK, MAC filtering
Guest Access Captive Portal and Guest Authentication
Role-based Firewall Supported (Layer 7 application visibility and control)

Interfaces
Interface Type 1 x 10/100/1000Base-T Ethernet (RJ-45)
Port Count 1
Uplink Speed 1 Gbps
LAN Interface Speed 10/100/1000 Mbps
Console Port 1 x USB Type-C (for console access)

Physical & Environmental
Width 6.4 in (162 mm)
Depth 6.4 in (162 mm)
Height 1.7 in (43 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 95% non-condensing
Ingress Protection IP20 (Indoor use only)

Cloud Management & Licensing
Management Options Cloud-managed via ExtremeCloud IQ or on-premises controller
Cloud Management Platform ExtremeCloud IQ
Licensing Model Subscription-based cloud licensing
Zero Touch Provisioning Supported with ExtremeCloud IQ
Supported Protocols SNMP, Syslog, HTTPS, SSH
