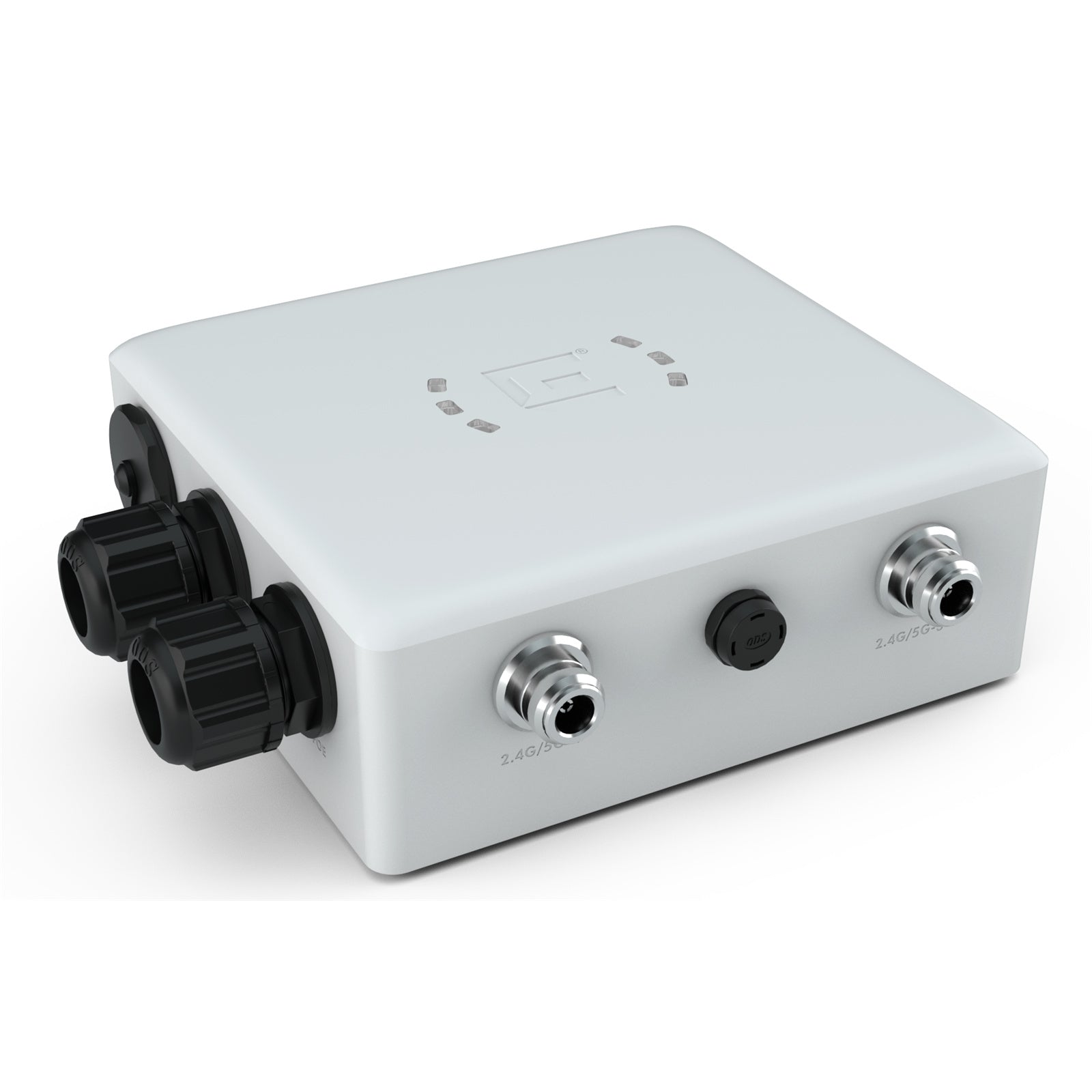

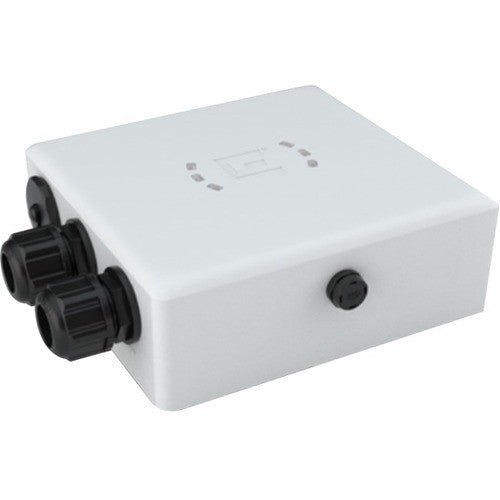

Extreme Networks AP360E Outdoor Wi-Fi 6 Access Point, Dual 5G, US PR

VENDOR: EXTREME NETWORK INC Mfg Part#: AP360E-FCC UPC#: 644728355327
Skip to product information
1 of 5
Photo is for illustration purposes only. Actual product may be different.
Regular price $876.17 USD
Regular price Sale price $876.17 USD
Sale Sold out
MSRP: $1,261.00
Shipping calculated at checkout.
  • - Wi-Fi 6 (802.11ax) dual-radio with 2x2:2 MU-MIMO and beamforming technology
  • - Rugged outdoor form factor with IP67 rating and extended temperature range (-40°F to 140°F)
  • - Built-in GPS and Bluetooth Low Energy for enhanced location and IoT capabilities
  • - Supports up to 1024 simultaneous users and 16 SSIDs
  • - Secured with WPA3 encryption and SSID-based authentication
  • - PoE powered with dual Gigabit Ethernet ports and 5 N-type antenna connectors

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for high-density outdoor environments with support for 1024 users and 16 SSIDs.
  • Supports Wi-Fi 6, Bluetooth LE, and advanced features like GPS and MU-MIMO, making it ideal for modern enterprise networks.
  • Rugged IP67 design, extreme temperature tolerance, and TAA compliance ensure reliability and regulatory readiness in the US and Puerto Rico.

Product Overview

Dual Radio 802.11ax - 2x22 Dual 5G Outdoor External Antenna Access Point. Domain US and Puerto Rico

Specifications

Product Overview

Type Wireless access point
Product Name Extreme Networks AP360E Outdoor Wi-Fi 6 Access Point
Model AP360E-FCC
Form Factor External - outdoor
Weight 2.2 lbs
Power Requirements PoE (IEEE 802.3af)
Power Consumption (Operational) 9.5 Watt
Built-in Devices GPS
Supported Technology Bluetooth Low Energy (LE), Wi-Fi 6

Wireless Features

Wi-Fi Standards 802.11a/b/g/n/ac Wave 2/ax (Wi-Fi 6)
Frequency Band 2.4 GHz, 5 GHz
MIMO Technology 2x2:2 MU-MIMO
Beamforming Transmit Beamforming
Wi-Fi Security WPA3
SSID Capacity 8 SSIDs per radio (16 total)
User Capacity 512 users per radio (1024 total)
Enhanced Features Packet aggregation (A-MPDU, A-MSDU), Cellular Coexistence Filter (CCF)

Compliance & Origin

Country of Origin Taiwan
TAA Compliance Yes
Compliant Standards EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class B, AS/NZS 60950-1, RoHS, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 B, IP67, EN 62311, Directive 2011/65/EU, EN 50581, EN 300 328, EN 50385, EN 301 489-1, RSS-247, EN 55032 Class B, EN 301 893, CISPR 32, FCC Subpart C 15.247, FCC Subpart E 15.407, EN 301 489-17, IEC 62368, EN 62368, AS/NZS 62368, IEC/EN 60601-1-2, EN 55011 Group 1 Class B

Advanced Security Features

Authentication Method Radio Service Set ID (SSID)
Encryption Algorithm WPA3
Security Standards 802.11i, 802.1X, WPA2, WPA3

Interfaces

Data Link Protocol Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6)
LAN Interfaces 2 x 1000Base-T (PoE) - RJ-45
Antenna Interface 5 x antenna - N connector
Line Coding Format 256 QAM, OFDM, 1024 QAM, DSSS
Spread Spectrum Method OFDM, DSSS
Connectivity Technology Wireless

Physical & Environmental

Width 7.5 in
Depth 5.7 in
Height 2 in
Min Operating Temperature -40 °F
Max Operating Temperature 140 °F
Humidity Range (Operating) 10 - 95% (non-condensing)
Ruggedized Design Yes, Outdoor IP67 rated

Cloud Management & Licensing

Cloud Management Platform ExtremeCloud IQ (license required)
Local Management Web GUI, CLI, SNMP
Licensing Model Subscription-based (not included)
