| Product Type | Access Point |
| Model | AP5020-WW |
| Form Factor | Ceiling/Wall Mountable |
| Mounting Options | T-Bar mount (AH-ACC-BKT-AX-TB) included |
| Radio Count | Tri-Radio |
| Processor Type | |
| Environment | Indoor |
| Weight | 1.72 lbs (0.78 kg) |
| Power Requirements | 802.3at PoE+ |
| Power Consumption | Up to 25.5W |
| Throughput | 5 Gbps aggregate |

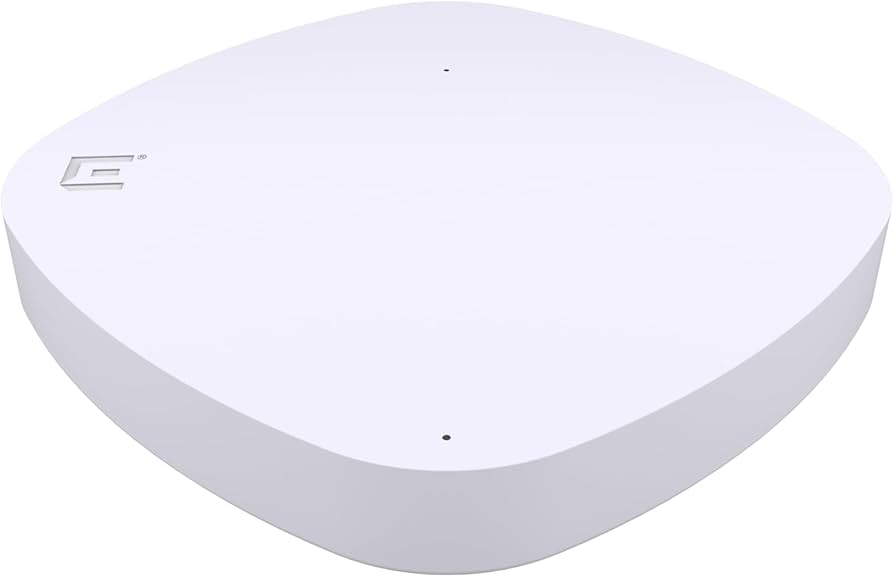

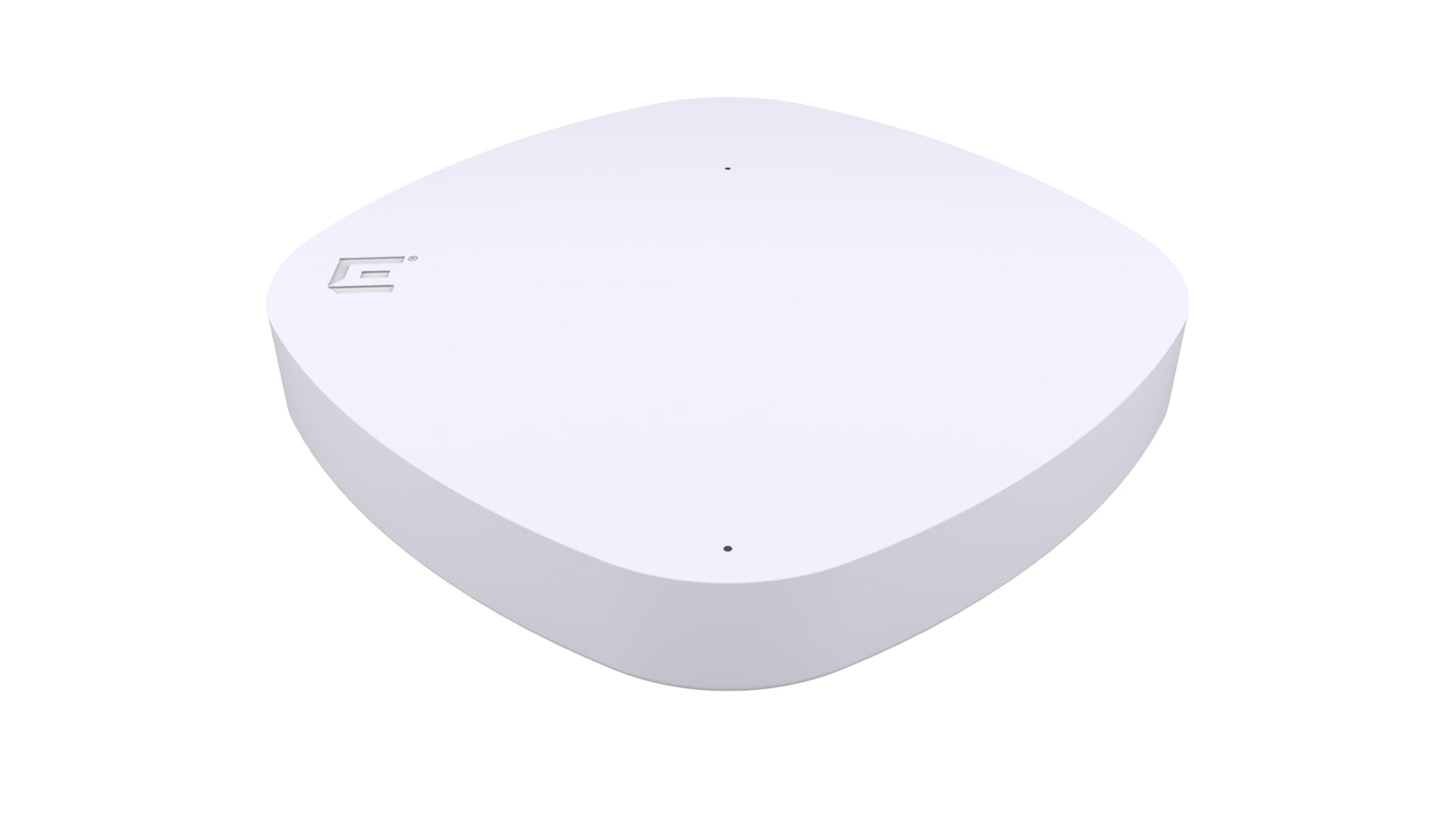

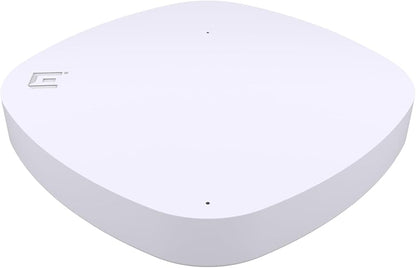

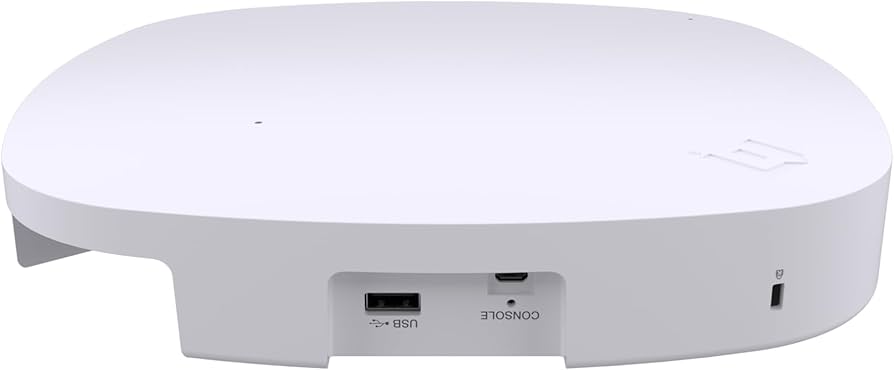

Extreme Networks AP5020-WW Indoor Tri-Radio Wi-Fi 7 Access Point
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,666.86 USD
Regular price
Sale price
$1,666.86 USD
Unit price
per
MSRP: $2,399.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Wi-Fi 7 (802.11be) tri-radio access point supporting 2.4 GHz, 5 GHz, and 6 GHz bands
- 4x4:4 MIMO configuration with internal antennas for enhanced signal efficiency
- Data transfer rate up to 5 Gbps with multirate Ethernet port support
- Compliant with 802.3at Power over Ethernet (PoE) standard
- Includes T-Bar mount for simplified installation in suspended ceiling infrastructures
- TAA compliant and backed by a limited lifetime warranty
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Supports the latest Wi-Fi 7 standard for superior performance in high-density wireless environments
- Tri-radio design and multigigabit throughput allow for seamless enterprise-level networking
- Comes with TAA compliance and lifetime warranty, making it a secure and future-proof investment
Product Overview
Indoor Tri Radio WiFi 7 AP 2.4 GHz 5GHz 6GHz Mulitrate Port Internal antennas.T-Bar Incl Mt (AH-ACC-BKT-AX-TB). Domain World SkuSpecifications
Product Overview
Wireless Features
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Antenna Type | Internal Antennas |
| MIMO Configuration | 4x4:4 MU-MIMO per radio |
| Spatial Streams | Up to 12 spatial streams total |
| Max Data Rate – 2.4 GHz | Up to 1.1 Gbps |
| Max Data Rate – 5 GHz | Up to 4.8 Gbps |
| Max Data Rate – 6 GHz | Up to 5.8 Gbps |
| OFDMA Support | Yes |
| Target Wake Time (TWT) | Yes |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | FCC, CE, IC, UL, Wi-Fi Alliance |
| Regulatory Compliance Standards | 802.11a/b/g/n/ac/ax/be, 802.3at |
Advanced Security Features
| Wireless Security | WPA3, WPA2, WPA-Personal/Enterprise |
| Intrusion Detection / Prevention | WIPS/WIDS support |
| Guest Access Control | Captive Portal, Policy-based Access |
| Content Filtering | Supported via cloud subscription |
| Role-Based Access Control | Yes |
Interfaces
| Network Interface | 1x 2.5G Ethernet (RJ-45) |
| Data Transfer Rate | 5 Gbps |
| Uplink Port Speed | 2.5 Gbps |
| Port Type | Multirate Ethernet |
| Bluetooth Interface | Bluetooth Low Energy (BLE) 5.0 |
| Data Link Protocol | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Transport Protocol | Gigabit Ethernet |
Physical & Environmental
| Width | 10.16 in (258 mm) |
| Depth | 10.16 in (258 mm) |
| Height | 1.62 in (41.1 mm) |
| Operating Temperature | 0°C to +40°C (32°F to +104°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Humidity | 10% – 95% (non-condensing) |
Cloud Management & Licensing
| Cloud Management Platform | ExtremeCloud™ IQ |
| Management Interface | Web UI, CLI, SNMP, ExtremeCloud™ IQ |
| Licensing Requirement | Subscription-based licensing via ExtremeCloud IQ |
| Included Cloud Features | Zero-touch provisioning, client monitoring, configuration management |
