| Type | Indoor Wireless Access Point |
| Product Series | AP5000 Series |
| Model | AP5010 |
| Form Factor | Ceiling/Wall Mountable |
| Mounting Options | T-Bar Mount (AH-ACC-BKT-AX-TB) included |
| Radios | Tri-Radio (2.4GHz, 5GHz, 6GHz) |
| Maximum Data Rate | 10.8 Gbps |
| Wi-Fi Generation | Wi-Fi 6E (802.11ax) |
| Number of Spatial Streams | 12 (4x4:4 on each band) |
| Power Consumption | 25.5W (typical), up to 31W (maximum) |
| Power Supply | PoE+ (802.3at) or optional DC power adapter |
| Weight | 1.04 kg (2.29 lbs) |

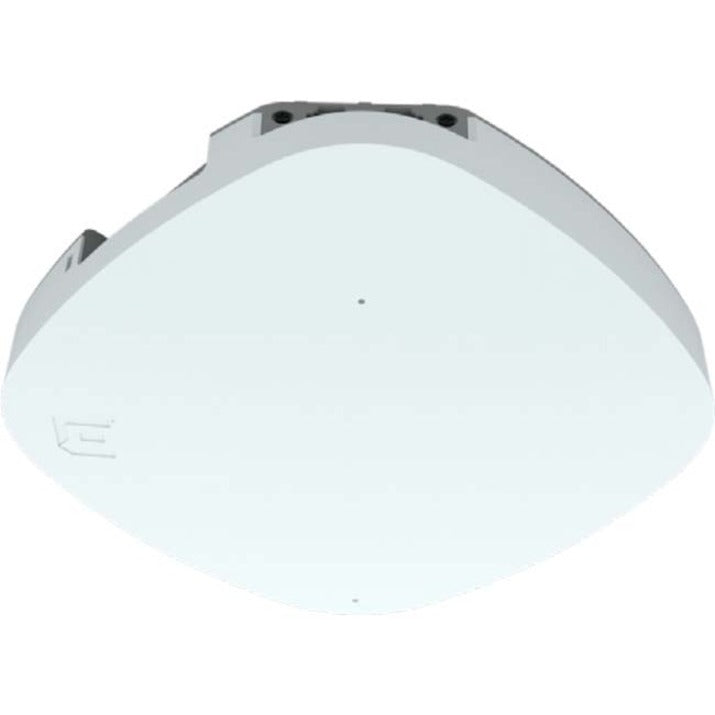

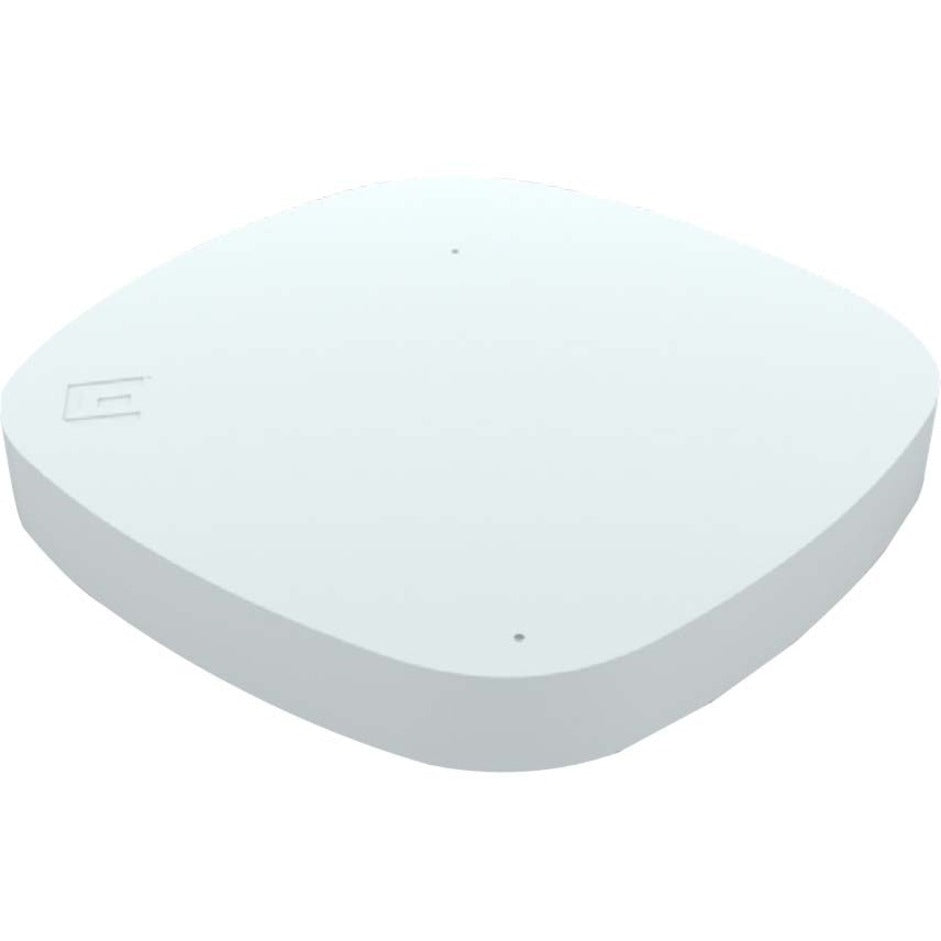

Extreme Networks Indoor Tri-Radio WiFi 6E AP, AP5010-IL
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,388.94 USD
Regular price
Sale price
$1,388.94 USD
Unit price
per
MSRP: $1,999.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Tri-radio support for 2.4 GHz, 5 GHz, and 6 GHz WiFi 6E frequencies
- Multirate port for flexible and high-speed network connectivity
- Internal antennas for streamlined deployment
- Includes T-Bar ceiling mounting bracket (AH-ACC-BKT-AX-TB)
- Manufactured in Taiwan and TAA compliant
- Domain-specific version for Israel deployments
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Supports tri-band WiFi 6E, ideal for enterprise-scale, high-density wireless environments
- TAA compliance and Taiwanese manufacture ensure suitability for government and regulated industries
- Tailored for Israel's domain, ensuring regulatory adherence and optimized regional performance
Product Overview
Indoor Tri Radio WiFi 6E AP (4x44) 2.4 GHz 5GHz 6GHz Multirate Port Internal antennas. T-Bar Incl Mt (AH-ACC-BKT-AX-TB). Domain IsraelSpecifications
Product Overview
Wireless Features
| 2.4GHz Radio | 4x4:4 MU-MIMO |
| 5GHz Radio | 4x4:4 MU-MIMO |
| 6GHz Radio | 4x4:4 MU-MIMO |
| Internal Antennas | Yes, integrated directional antennas |
| Antenna Gain | 5 dBi (typical) |
| Maximum Clients Supported | 1024 per AP (theoretical) |
| MIMO | Yes, Multi-User MIMO (MU-MIMO) |
| Beamforming | Yes, uplink and downlink |
| Band Steering | Yes |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | FCC, CE, IC, UL 2043, RoHS |
Advanced Security Features
| Wireless Security | WPA3, WPA2, WPA Enterprise |
| Authentication | 802.1X with RADIUS |
| Rogue AP Detection | Yes |
| Wireless IDS/IPS | Yes |
| MAC Filtering | Yes |
| Application Visibility | Yes, with ExtremeCloud IQ |
Interfaces
| Ethernet Ports | 1 x 5GbE (RJ45), 1 x 1GbE (RJ45) |
| Ethernet Port Speeds | 100/1000/2500/5000 Mbps (Multirate) |
| Auxiliary Port | 1 x USB 2.0 |
| Console Port | 1 x RJ45 |
| PoE Support | Yes, IEEE 802.3at (PoE+) |
Physical & Environmental
| Dimensions (W x D x H) | 230 mm x 230 mm x 51 mm (9.1 in x 9.1 in x 2.0 in) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 95% non-condensing |
| Protection | Plenum-rated (UL 2043), indoor use only |
Cloud Management & Licensing
| Management Platform | ExtremeCloud IQ |
| Deployment Modes | Cloud-managed, on-premises controller, standalone |
| Licensing Requirements | ExtremeCloud IQ Pilot License (optional) |
| Zero-Touch Provisioning | Yes |
| AP Configuration Options | Cloud, CLI, Web UI |
