Fortinet FAP-23JF Tri-Radio Wall Plate Wi-Fi 6 Access Point

VENDOR: FORTINET Mfg Part#: FAP-23JF-K
1 3
Photo is for illustration purposes only. Actual product may be different.
$300.59
$300.59
Sale Sold out
MSRP: $410.00
Shipping calculated at checkout.
  • Tri-radio Wi-Fi 6 AP supporting 802.11 b/g/n/ax and 802.11 a/n/ac/ax standards
  • Dual-band 2x2 MU-MIMO for optimized wireless performance
  • Four RJ45 Ethernet ports with PoE PD and PSE capabilities
  • Built-in Bluetooth Low Energy (BLE) and RJ45 console port
  • Indoor wall-plate design with included mounting kit
  • Limited Lifetime Warranty with enterprise-grade support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers high-speed Wi-Fi 6 performance with 2x2 MU-MIMO on dual radios for efficient multi-user environments
  • Includes versatile port options with PoE in/out and BLE support, ideal for hospitality and educational settings
  • Backed by a Limited Lifetime Warranty, ensuring long-term operational reliability and value

Product Overview

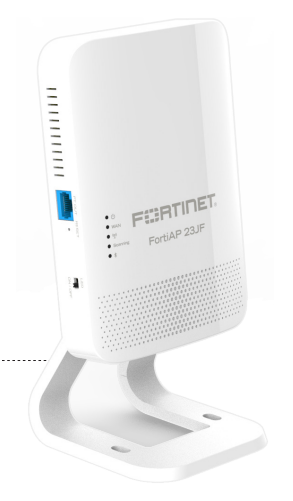

The Fortinet FAP-23JF is a feature-rich, tri-radio indoor access point engineered to meet the demands of modern wireless infrastructure. It supports both 2.4 GHz and 5 GHz wireless bands using 802.11 b/g/n/ax and 802.11 a/n/ac/ax standards, and incorporates 2x2 MU-MIMO for optimized multi-user performance. With a 1 Gbps data transfer rate and support for advanced wireless threat protection and compliance requirements such as PCI DSS, the FAP-23JF enhances both performance and network integrity.

Equipped with four RJ45 ports (including PoE PD and PSE support), the access point also integrates Bluetooth Low Energy (BLE) and a console port for management. Its compact wall plate mounting form factor—measuring just 1.1 inches in height—enables discrete installation in various indoor settings including hotel rooms and classrooms. Designed for ease of deployment, it is compatible with 802.3at PoE injector or optional AC adapter and comes with a mounting kit.

The FAP-23JF delivers a strong ROI by offering enterprise-grade wireless capabilities, centralized manageability, and robust connectivity options in a compact, easy-to-install unit. It is supported by a limited lifetime warranty, ensuring long-term durability for mission-critical environments.

Specifications

Product Overview
Product Type Access Point
Model FAP-23JF
Form Factor Wall Plate
Environment Indoor
Deployment Wall-mounted
Radio Count Tri
MIMO Type 2x2 MU-MIMO
Power Requirements IEEE 802.3at PoE or optional AC adapter
Maximum Power Consumption 13.5 W
Power Supply Included No
Mounting Kit Included Yes
Warranty Limited Lifetime Warranty

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax
Dual Band 2.4 GHz / 5 GHz
Bluetooth Bluetooth Low Energy (BLE) 5.0
Antenna Type Internal antennas
Wi-Fi Radio Configuration Tri-radio

Compliance & Origin
Country of Origin Taiwan
Certifications FCC, IC, CE, RCM, WEEE, RoHS
Compliance Standards PCI DSS

Advanced Security Features
Wireless Threat Protection Yes
Integration with Fortinet Security Fabric Yes
Compliance Support Supports PCI DSS compliance via integrated threat prevention

Interfaces
Data Transfer Rate 1 Gbps
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Networking / Ports Qty 7
Ethernet LAN Ports 4 x RJ-45 (including PSE support)
Uplink Port 1 x RJ-45 (PoE PD supported)
Console Port 1 x RJ-45
Passthrough RJ-45 Port 1 x RJ-45

Physical & Environmental
Width 4.6 in
Depth 6.6 in
Height 1.1 in
Weight 0.75 lb
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)

Cloud Management & Licensing
Management Interface FortiCloud, FortiWLC, FortiGate Controller
Cloud-based Management Yes
License Requirement No license required for FortiGate integrated management
