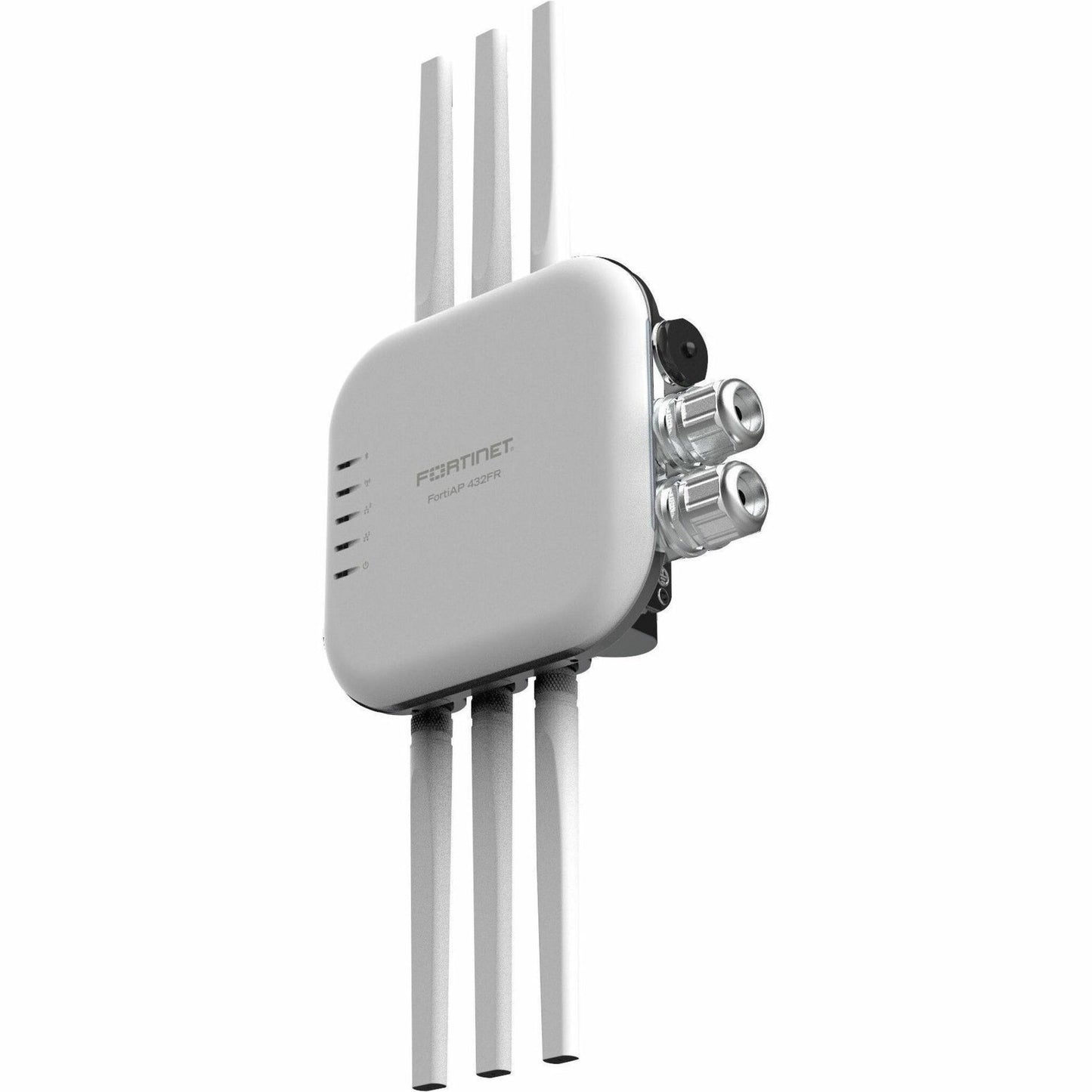

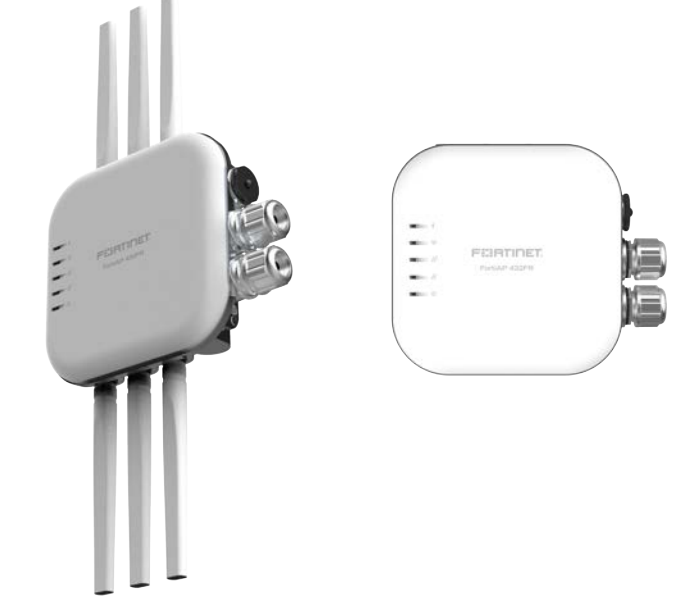

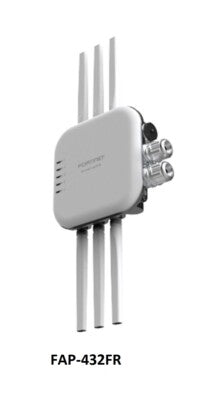

FORTINET FAP-432FR Outdoor Tri-Radio Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-432FR-Y
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,473.13
$1,473.13
Sale Sold out
MSRP: $2,010.00
Shipping calculated at checkout.
  • Tri-radio support: 1x 4x4 802.11b/g/n/ax, 1x 4x4 802.11a/n/ac/ax, 1x 2x2 802.11a/b/g/n/ac Wave 2
  • Industrial-grade: UL Class 1, Division 2 certified for hazardous environment deployment
  • Connectivity: 1x 2.5GbE and 1x 1GbE RJ45 ports, USB Type A, RS-232 serial port
  • Wireless integrations: Bluetooth/BLE and ZigBee support for IoT connectivity
  • External dual-band N-type omnidirectional antennas with integrated mounting bracket
  • Flexible power options: Supports 802.3at PoE injector (GPI-130) or AC adapter (SP-FAP400-PA)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Built for hazardous environments with rugged UL Class 1, Division 2 certification, ensuring safe deployment in industrial fields
  • Advanced tri-radio Wi-Fi 6 support ensures comprehensive high-density wireless coverage and performance across multiple bands
  • Versatile connectivity with dual Ethernet, USB, RS-232, and IoT protocols like BLE and ZigBee allows integration with a broad range of devices

Product Overview

FORTIAP-432FR UL CLASS 1, DIVISION 2 .OUTDOOR WIRELESS FORTIAP - TRI RADIO (1X 802.11B/G/N/AX 4X4 RADIO, 1 X 802.11A/N/AC/AX 4X4 RADIO AND 1X 802.11 A/B/G/N/AC WAVE 2, 2X2), 1X 10/100/1000/2500 BASE-T RJ45, 1X 10/100/1000 BASE-T RJ45, BT/BLE + ZIGBEE, 1X TYPE A USB, 1X RS-232 RJ45 SERIAL PORT. EXTERNAL DUAL BAND N-TYPE OMNI DIRECTIONAL ANTENNAS, INTEGRATED MOUNTING BRACKET FOR ANTENNA INCLUDED + WALL/POLE MOUNT MOUNTING KIT. FOR POWER ORDER: 802.3AT POE INJECTOR GPI-130 OR AC ADAPTER SP-FAP400-PA. REGION CODE Y

Specifications

Product Overview
Product Type Outdoor Wireless Access Point
Model FAP-432FR-Y
Form Factor Outdoor, wall or pole mountable
Mounting Options Integrated bracket for antenna, wall/pole mounting kit included
Radios Tri-radio (1 x 4x4 802.11b/g/n/ax, 1 x 4x4 802.11a/n/ac/ax, 1 x 2x2 802.11a/b/g/n/ac Wave 2)
Antenna Type External N-type dual band omni-directional antennas
Power Requirements 802.3at PoE or optional AC adapter (SP-FAP400-PA)
Power Consumption Up to 25.5 W (PoE Class 4)
Weight 2.2 kg (4.85 lbs)

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Radio Chains 2 x 4x4 MU-MIMO, 1 x 2x2 MU-MIMO
Frequency Bands 2.4 GHz and 5 GHz simultaneous dual band
Security Encryption WPA3, WPA2, WPA
Max Concurrent Clients 1024
Mesh Support Yes
Wireless Operation Modes Access Point, Mesh Root, Mesh Leaf, Monitor, Sniffer
Antenna Connectors 6 x external N-type connectors

Compliance & Origin
Country of Origin Taiwan
Certifications UL, CE, FCC, IC, CB, RoHS, WEEE, REACH
EMC Compliance FCC Part 15 Subpart B, ICES-003

Advanced Security Features
WIDS/WIPS Wireless Intrusion Detection & Prevention System capable
Integration with FortiGate Yes, for UTM and firewall policies
Guest Access Control Yes, integrated captive portal
Rogue AP Detection Supported

Interfaces
Ethernet Ports 1 x 10/100/1000/2500 Base-T RJ45, 1 x 10/100/1000 Base-T RJ45
Serial Port 1 x RS-232 RJ45 Console Port
USB Ports 1 x USB Type-A
Bluetooth Bluetooth Low Energy (BLE)
IoT Support Zigbee integrated
Data Transfer Rate Up to 3.6 Gbps (aggregated wireless throughput)

Physical & Environmental
Dimensions 308 x 218 x 77 mm (12.1 x 8.6 x 3.0 in)
Operating Temperature -40°C to +65°C (-40°F to 149°F)
Storage Temperature -50°C to +70°C (-58°F to 158°F)
Operating Humidity 10% to 95% RH (non-condensing)
Ingress Protection Rating IP67
Housing Material Die-cast aluminum
Flame Rating UL Class 1, Division 2 Certified

Cloud Management & Licensing
Cloud Management Platform FortiCloud and FortiGate Controller
Management Interface Web, CLI, SSH, FortiManager, FortiCloud
Zero Touch Deployment Yes, via FortiDeploy and FortiCloud
Licensing Options Subscription services for cloud management and security features
