| Product Type | Host Controller |
| Form Factor | Full-height, half-length add-in card |
| Weight | 160 g |
| Power Requirements | PCIe bus-powered |

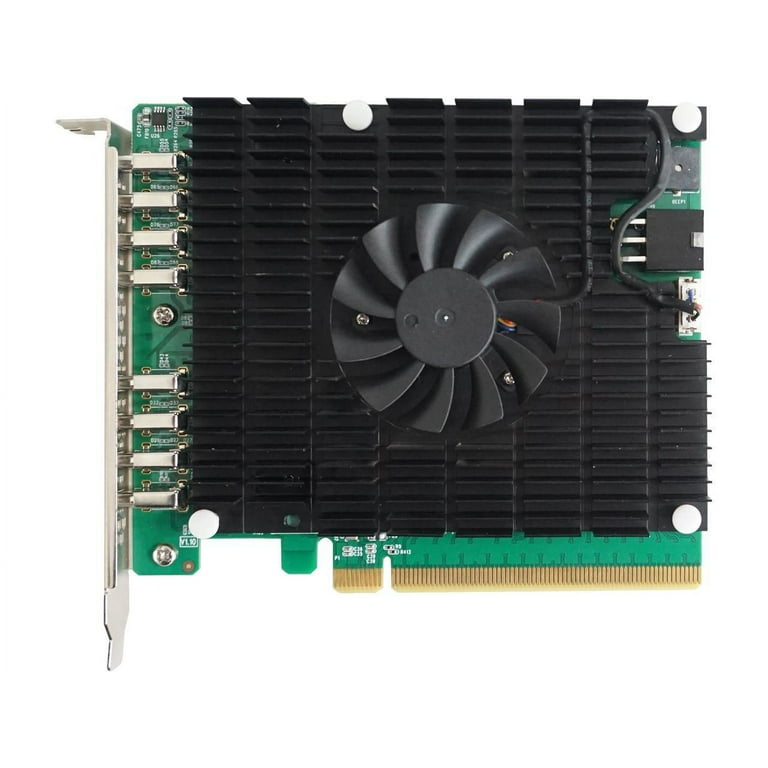

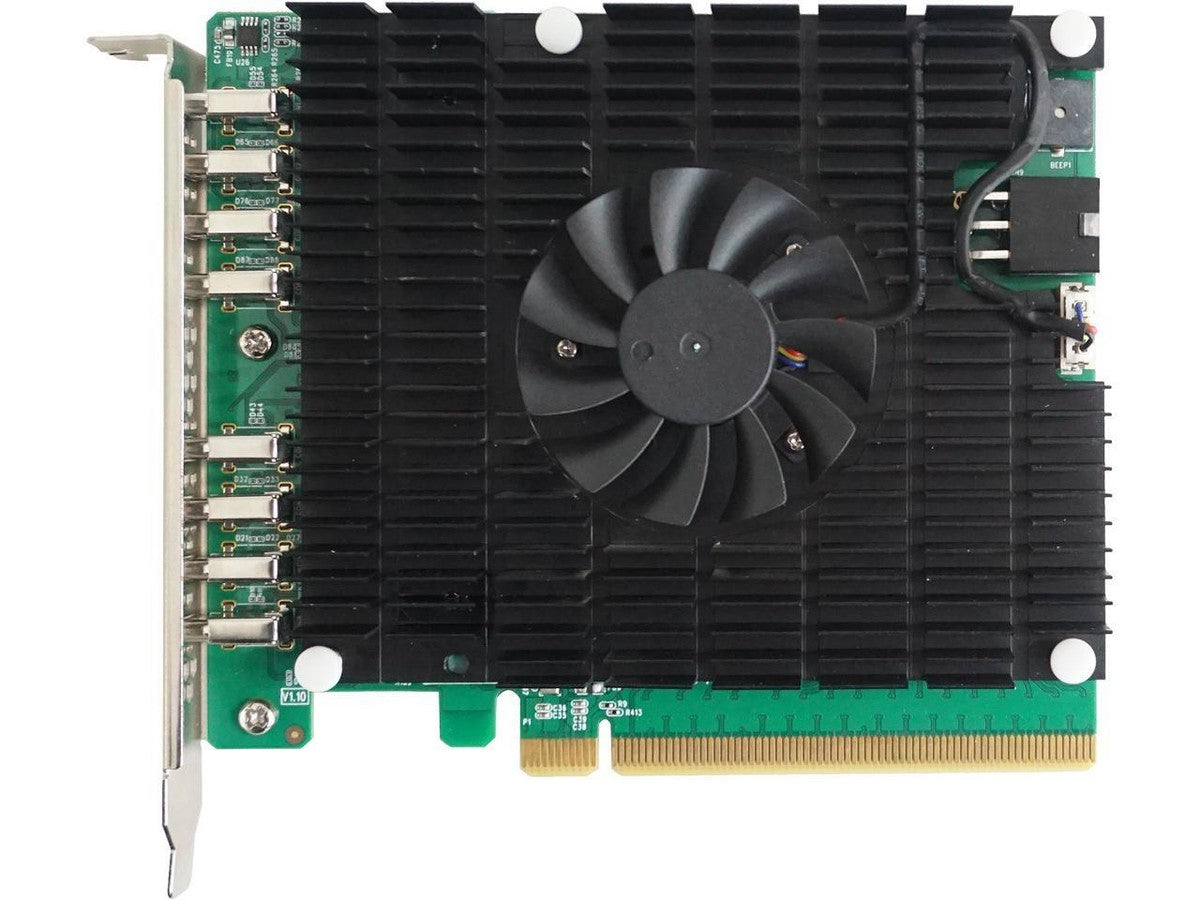

HighPoint RU1488C 8-Port USB-C 3.2x2 PCIe 3.0 x16 Host Controller
Photo is for illustration purposes only. Actual product may be different.
Regular price
$299.00
Regular price
Sale price
$299.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 8-port USB-C 3.2 20Gb/s host controller for high-speed connectivity
- PCIe 3.0 x16 interface for maximum system bandwidth
- Dedicated 20Gbps data rate per port ensures consistent performance
- Driverless operation with native xHCI support across Windows and Linux
- Optimized for high-throughput peripheral applications
- Manufactured in China; not TAA compliant
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers exceptional per-port performance with 20Gbps throughput, ideal for high-speed peripherals.
- Supports both Windows and Linux with driverless xHCI compliance, reducing deployment complexity.
- Scalable 8-port architecture over PCIe 3.0 x16 interface maximizes system resource utilization.
Product Overview
The HighPoint RU1488C PCIe 3.0 x16 USB-C Host Controller features eight independent USB-C 3.2 20Gb/s ports, each providing dedicated per-port bandwidth. Leveraging the PCIe 3.0 x16 interface, the controller ensures maximum throughput and is optimized for data-intensive tasks. With native xHCI support for Windows and Linux, it offers a driverless installation experience. Ideal for content creators, researchers, and industrial users, the RU1488C delivers reliable high-speed USB connectivity for advanced applications.
Specifications
Product Overview
Wireless Features
| Wi-Fi Support |
Compliance & Origin
| Country of Origin | China |
| RoHS Compliance | Yes |
| TAA Compliant | No |
| CE Certification | Yes |
| FCC Certification | Yes |
| Environmental Standards | RoHS, WEEE |
| EMC Compliance | EN55032, EN55024 |
Advanced Security Features
| Hardware Encryption | Not supported |
| Device Authentication | No |
| Host Access Control | No |
Interfaces
| Interface Type | PCI Express 3.0 x16 |
| USB Ports | 8 x USB-C |
| USB Standard | USB 3.2 Gen 2x2 |
| Per Port Bandwidth | 20 Gbps |
| Total Simultaneous Bandwidth | 160 Gbps (Theoretical maximum across 8 ports) |
| Controller Chipset | ASMedia ASM3242 per port (independent controllers) |
| Connector Type | USB Type-C |
| Performance Optimization | Dedicated PCIe lanes per controller |
| Hot-Swap Support | Yes |
| USB Protocol Backward Compatibility | USB 2.0 / USB 3.0 / USB 3.1 Gen1/Gen2 |
Physical & Environmental
| Dimensions | 6.6 x 4.1 x 0.8 inches (168 x 105 x 20 mm) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 80°C |
| Relative Humidity (Non-condensing) | 5% to 95% |
| Cooling | Passive heatsink |
| Bracket Type | Standard and low-profile brackets included |
Cloud Management & Licensing
| Driver Support | Native xHCI driver (Windows & Linux) |
| Management Software | None required (driverless installation) |
| Licensing Requirements | None |
