HP Aruba 4100i 24G CL4/6 PoE 4SFP+ U.S. Switch JL818A#ABA

VENDOR: HP Mfg Part#: JL818A#ABA UPC#: 190017537177
1 5

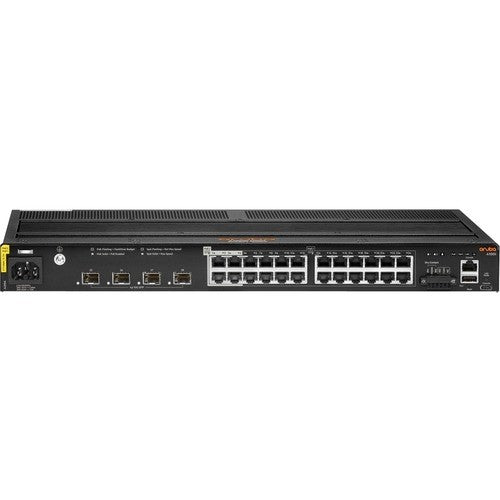

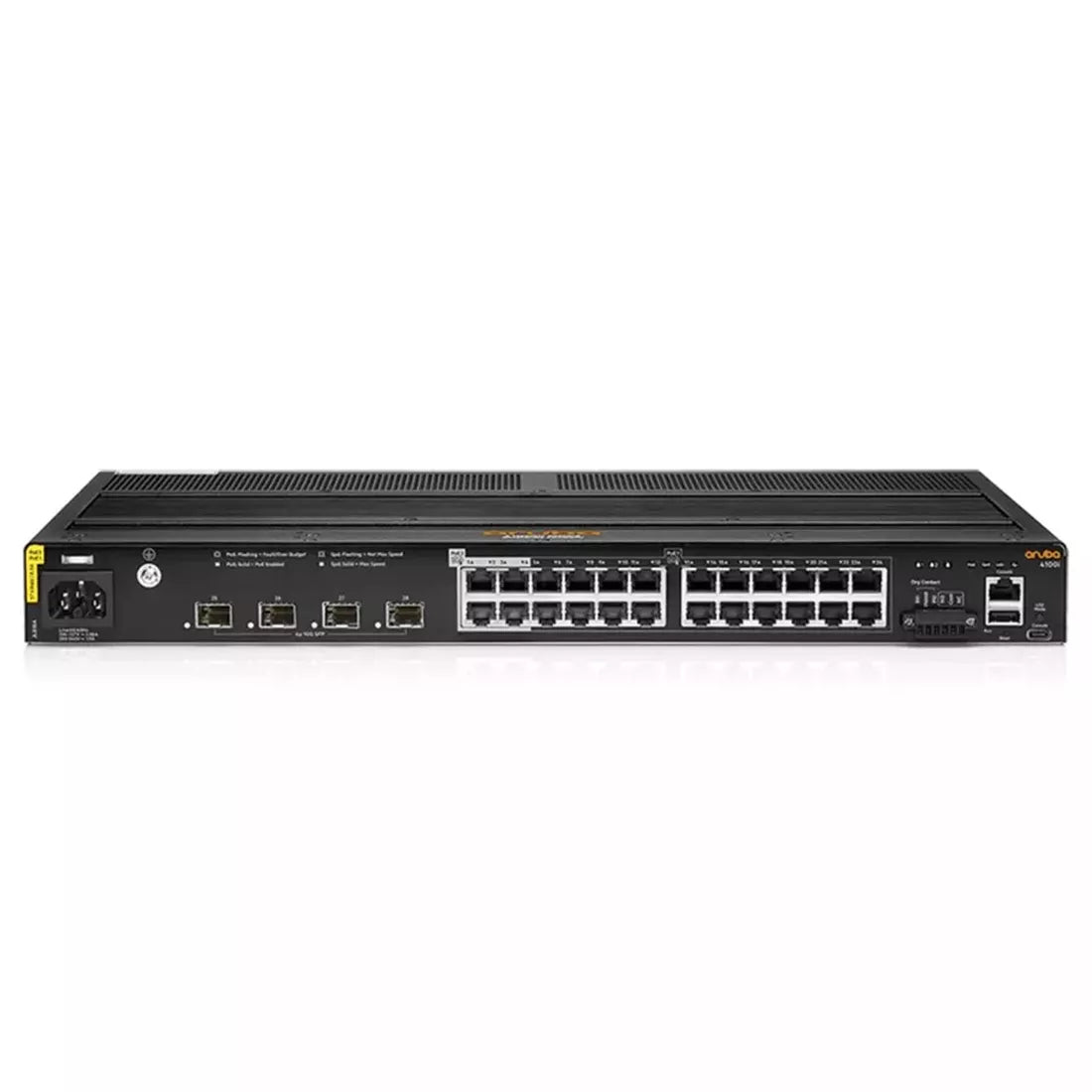

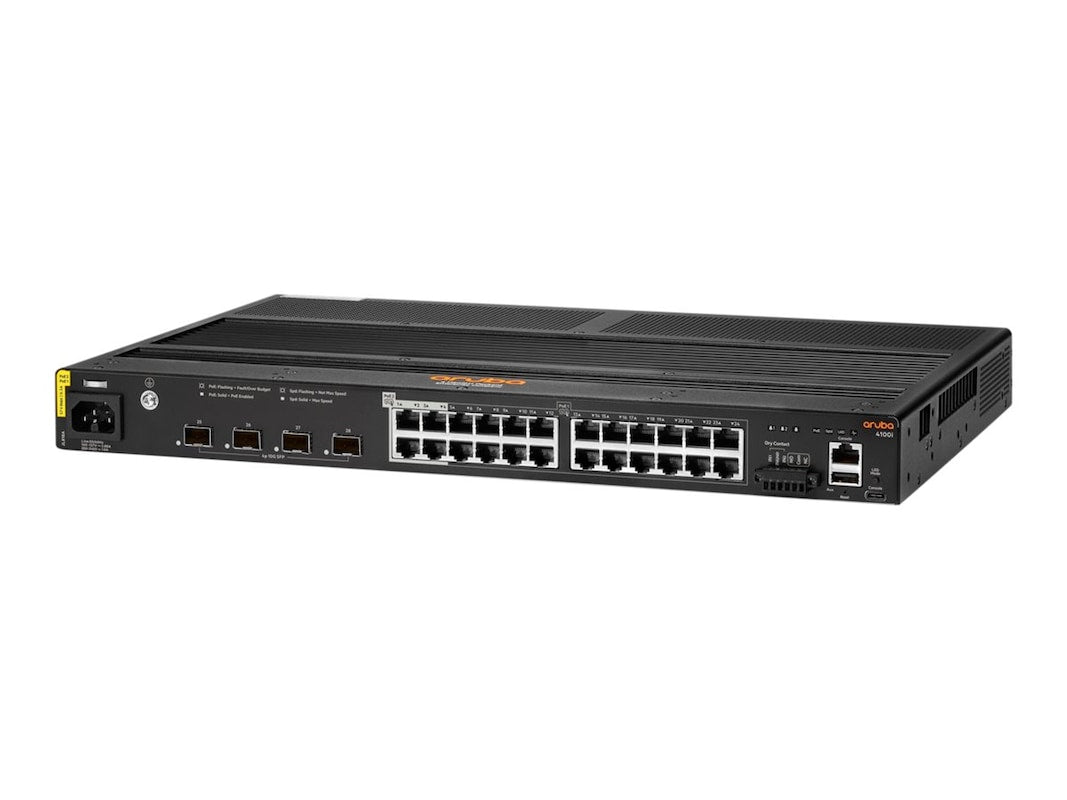

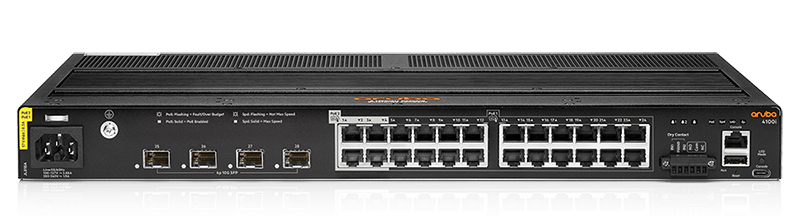

Photo is for illustration purposes only. Actual product may be different.
$9,143.33
$9,143.33
Sale Sold out
MSRP: $11,549.00
Shipping calculated at checkout.
  • 24x 100M/1G BaseT PoE ports (4x Class 6 up to 60W, 20x Class 4 up to 30W)
  • 4x 1G/10G SFP+ uplink ports for scalable backbone networking
  • 4 GB DDR3 RAM and 32 GB flash storage with ARM Cortex A9 1016 MHz CPU
  • Wide operating temperature range from -40°C to 60°C for harsh environments
  • Supports multiple console interfaces: USB-C, RJ45, USB-A host
  • 300W power supply with a maximum operational consumption of 23W

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for extreme conditions with an industrial-grade operating range from -40°C to 60°C
  • Supports high PoE outputs up to 60W per port (Class 6), enabling device flexibility and reducing additional cabling
  • Backed by a 5-year warranty and TAA compliance, ensuring reliability and regulatory readiness in government and enterprise scenarios

Product Overview

The HP Aruba 4100i JL818A#ABA is a rugged enterprise-layer switch designed for reliable PoE and high-speed wired networking in industrial-grade environments. It features 24 100M/1G PoE ports, with 4 Class 6 ports delivering up to 60W each and 20 Class 4 ports supporting 30W each. Four 1G/10G SFP+ uplinks ensure scalable, backbone-level connectivity. The device houses a dual-core ARM Cortex A9 processor, 4 GB DDR3 RAM, and 32 GB flash storage for robust performance and ample configuration space. Built for performance in extreme temperatures (from -40°C to 60°C), the unit suits industrial and semi-outdoor deployments. It offers a low average latency and supports quiet, fanless operation while consuming just 23W under full load. Additional interfaces include USB-C, USB-A, and RJ45 console ports for versatile management. A 5-year warranty and TAA compliance reinforce its value in secure, long-term networking infrastructure.

Specifications

Product Overview
Product Type Rugged Ethernet Switch
Model HPE Aruba Networking CX 4100i Switch
Form Factor Rack-mountable
Processor Type Dual-core ARM Cortex-A9
Memory (RAM) 4 GB DDR3
Flash Storage Capacity 32 GB
Weight 14.26 lbs.
Power Consumption (Operational) 23 Watt
Max Power Consumption 240 Watt (PoE budget), 300 Watt (power supply)
Voltage Required 100V – 240V AC

Physical & Environmental
Width 1.73 in
Depth 17.5 in
Height 12 in
Minimum Operating Temperature -40°C
Maximum Operating Temperature 60°C
Cooling Method Fanless design

Cloud Management & Licensing
Management Interface Aruba Central, CLI, Web GUI
Cloud Management Support Yes (via Aruba Central)
Switch Software Family Aruba AOS-CX
Licensing Model Subscription-based via Aruba Central (features vary by license tier)

Interfaces
Total Ports 31
10/100/1000BASE-T Ports 24
SFP+ Uplink Ports 4 x 1G/10G SFP+
Class 6 PoE Ports 4 x 100M/1G BaseT (up to 60W each)
Class 4 PoE Ports 20 x 100M/1G BaseT (up to 30W each)
USB-C Console Port 1
RJ-45 Console Port 1
USB-A Host Port 1
Alarm Socket 1
Data Transfer Rate 1 Gbps (BaseT), up to 10 Gbps (SFP+)
Data Link Protocol Gigabit Ethernet
Connectivity Technology Wired

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL/cUL, CE, CB, FCC Class A, ICES Class A, VCCI Class A, BSMI, CCC

Advanced Security Features
Network Access Control 802.1X, MAC Authentication, Web Authentication
Security Features DHCP snooping, Dynamic ARP protection, IP Source Guard
Port Security Yes
Trusted Platform Module (TPM) Integrated TPM 2.0
