HP Aruba 6200F 24G CL4 Switch with 4 SFP+ Ports and 370W PoE

VENDOR: HP Mfg Part#: JL725A#ABA UPC#: 190017408507
1 4

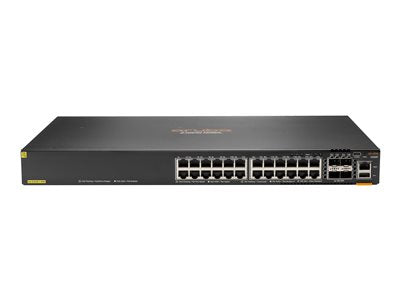

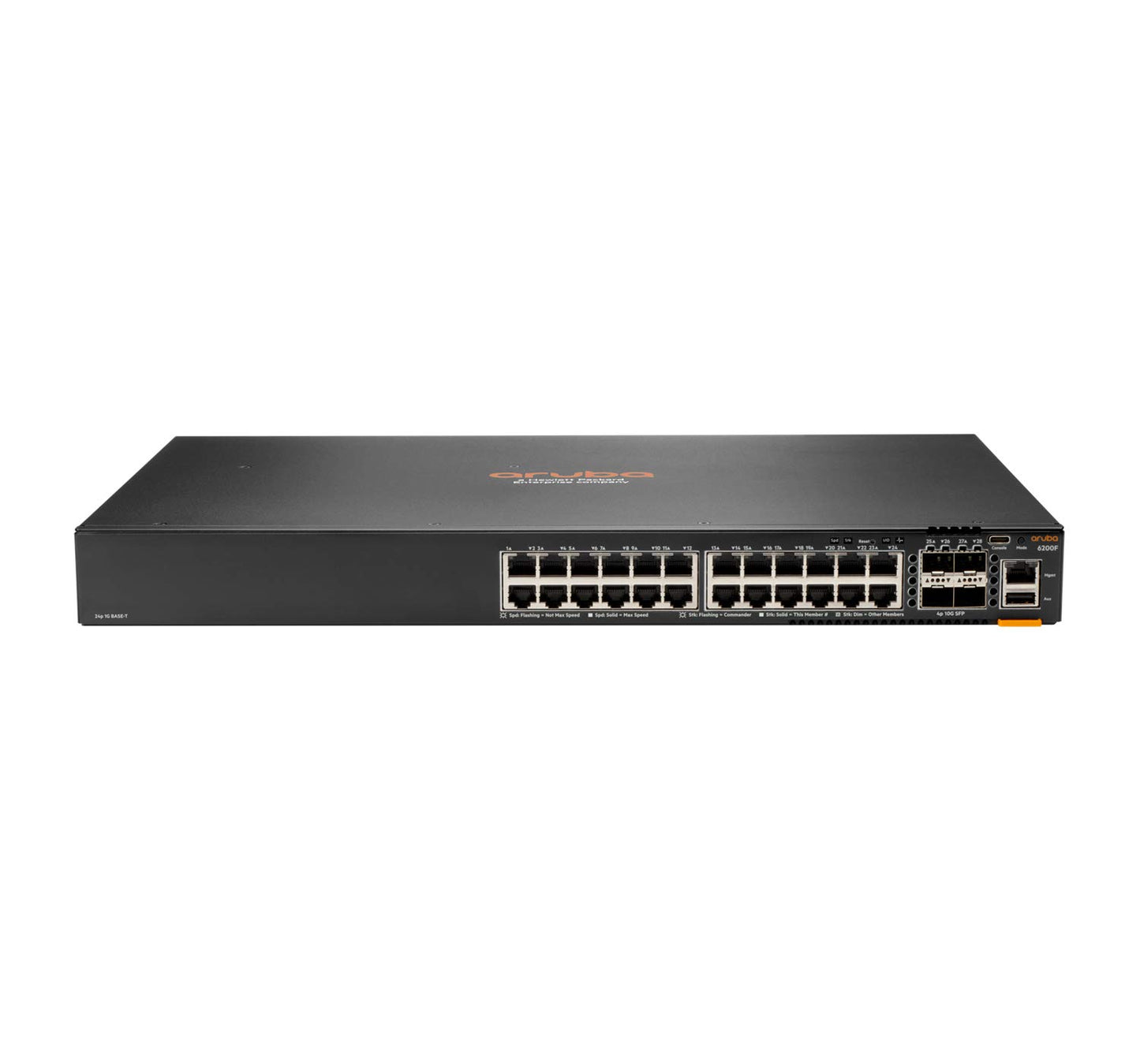

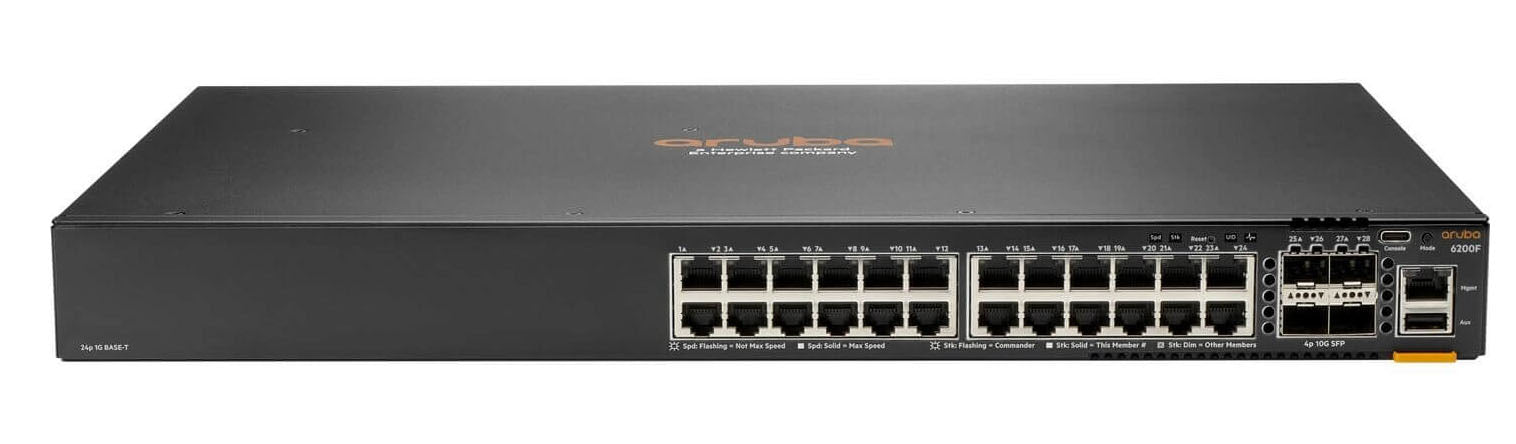

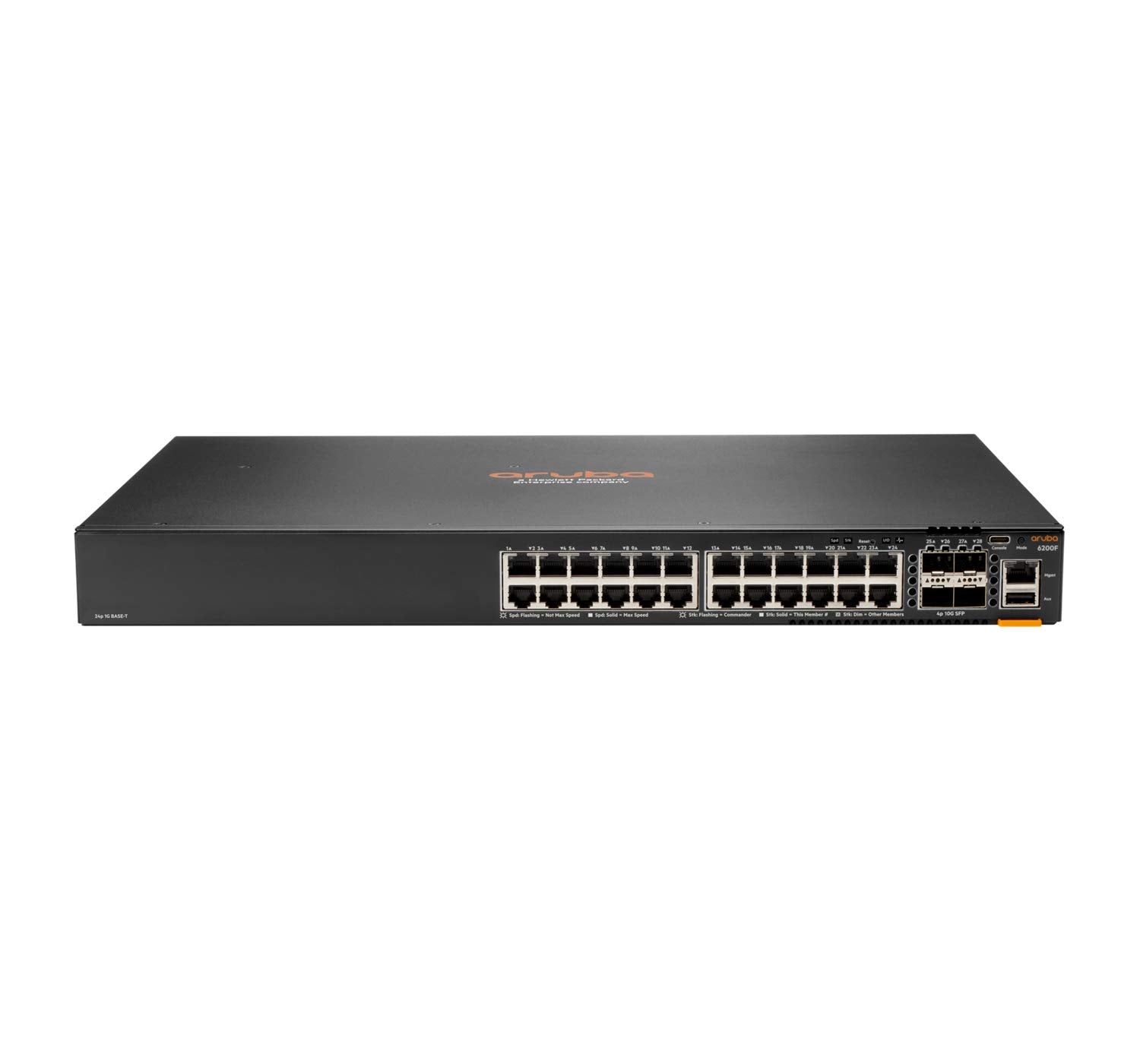

Photo is for illustration purposes only. Actual product may be different.
$2,480.92
$2,480.92
Sale Sold out
MSRP: $5,629.00
Shipping calculated at checkout.
  • 24x 10/100/1000BASE-T Class 4 PoE ports with 370W total PoE budget
  • 4x 1/10G SFP+ uplink ports for high-speed network aggregation
  • Quad-core ARM Cortex A72 processor with 8 GB RAM and 16 GB flash
  • Supports IEEE 802.3af and 802.3at PoE standards
  • Layer 3 Advanced routing capabilities for enhanced scalability
  • Includes USB-C Console, USB-A Host, OOBM port, and Bluetooth adapter

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers wire-speed Layer 3 routing and switching powered by Gen7 ASICs, ensuring high-performance throughput for bandwidth-heavy applications.
  • Flexible deployment with both copper and high-speed SFP+ fiber ports, ideal for hybrid network infrastructures.
  • Integrated 370W PoE support eliminates the need for external power sources for connected devices, reducing TCO and simplifying setup.

Product Overview

The HP Aruba 6200F 24G CL4 Switch is a high-performance, enterprise-level switch featuring 24x PoE ports and 4x 1/10G SFP+ uplink ports. With a quad-core ARM Cortex A72 CPU and 8GB RAM, it delivers consistent wire-speed routing and switching built on Aruba’s Gen7 ASIC architecture. Supporting IEEE 802.3af/at standards, its 370W PoE budget is ideal for powering connected edge devices. Management is simplified via multiple interfaces, including USB-C, USB-A, OOBM, and Bluetooth. Designed for reliable operation in diverse environments, it is backed by a limited lifetime warranty.

Specifications

Product Overview
Product Type Managed Layer 3 Network Switch
Model Aruba 6200F 24G CL4 4SFP+ 370W Switch
Manufacturer Part Number JL725A#ABA
Form Factor 1U Rack-mountable
Processor Type Quad-Core ARM Cortex-A72
Installed Memory (RAM) 8 GB
Flash Memory 16 GB
Switching Capacity 176 Gbps
Forwarding Rate 130.9 Mpps
Weight 10.8 lbs.
Power Supply Type Internal Power Supply
PoE Budget 370W
Power Provided 500W
Power Consumption (Operation) 65W
Voltage Required 100V-120V / 200V-240V AC

Wireless Features
Bluetooth Management Support Yes (with external adapter)

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, IEC/EN/CSA 62368-1, FCC Class A, VCCI, CE Marking
Warranty Limited Lifetime Warranty

Advanced Security Features
Access Control 802.1X, MAC Authentication, Web Authentication
Traffic Filtering Access Control Lists (ACLs)
Secure Management HTTPS, SSH, SNMPv3
DHCP Protection Dynamic ARP Protection, DHCP Snooping
Tunneling and Segmentation VXLAN, EVPN for microsegmentation

Interfaces
Total Ports 28
RJ-45 Ports 24 x 10/100/1000BASE-T PoE+
SFP+ Ports 4 x 1/10GbE SFP+
USB Ports 1 x USB-A host, 1 x USB-C console
Out-of-Band Management (OOBM) 1 x RJ-45 OOBM Port
Bluetooth Management Supported via adapter for Aruba CX Mobile App
PoE Standards Supported IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

Physical & Environmental
Width 17.4 in
Depth 12.9 in
Height 1.73 in
Minimum Operating Temperature 0°C
Maximum Operating Temperature 45°C
Minimum Storage Temperature -40°C
Maximum Storage Temperature 70°C
Operating Humidity Range 5% to 95% non-condensing

Cloud Management & Licensing
Management Interface Aruba Central, Web GUI, CLI, REST API, Aruba CX Mobile App
Cloud Management Supported via Aruba Central (optional license)
Licensing Requirement No mandatory subscription for base features
