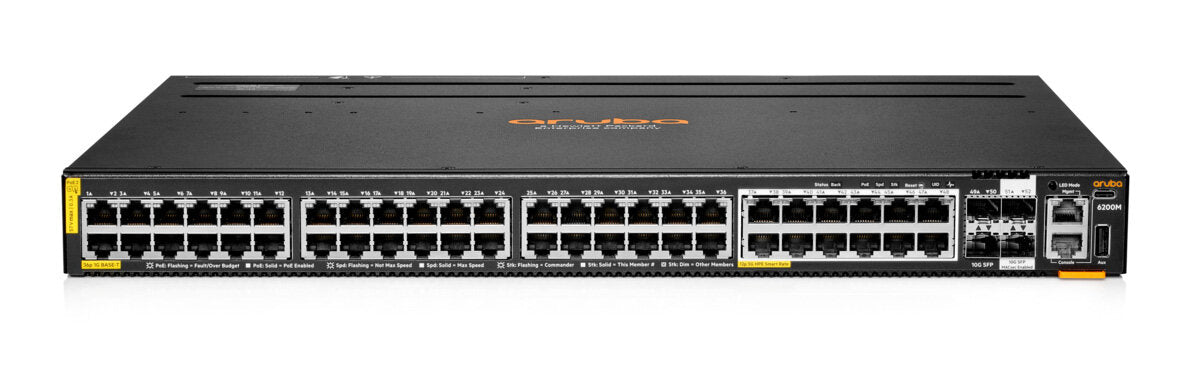

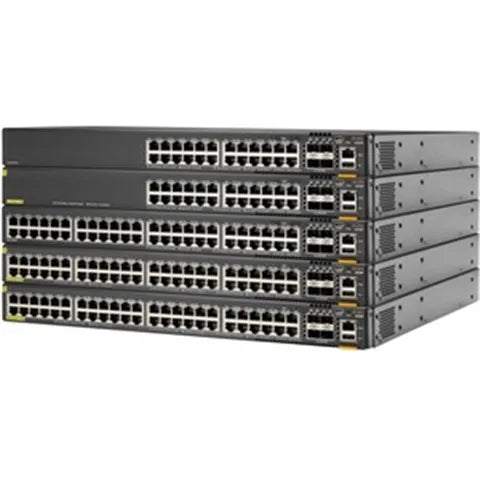

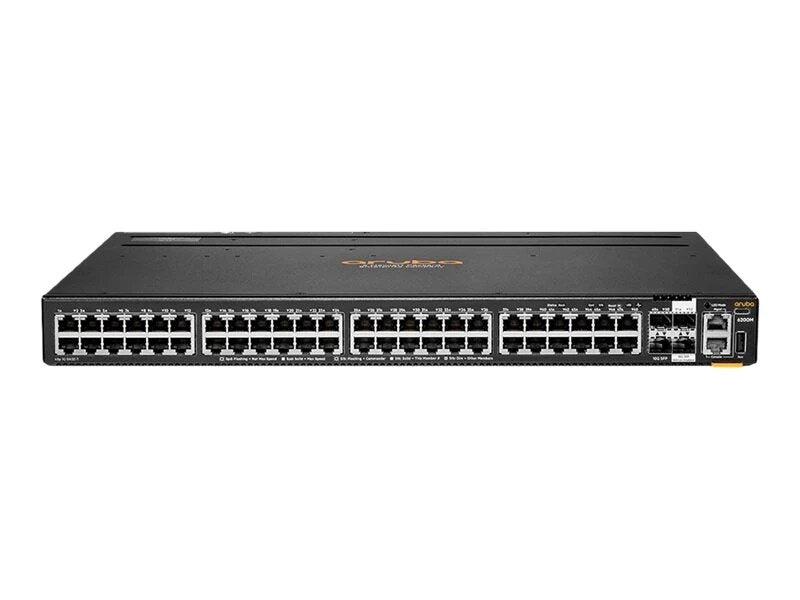

HP Aruba 6200M 36G 12SR5 CL6 4SFP+ Remanufactured Switch

VENDOR: HP Mfg Part#: R8Q71AR
1 5
Photo is for illustration purposes only. Actual product may be different.
$9,202.72
$9,202.72
Sale Sold out
MSRP: $11,624.00
Shipping calculated at checkout.
  • Layer 3 advanced routing with ARM Cortex A72 processor
  • 36x 10/100/1000BASE-T Class 6 PoE+ ports supporting up to 60W
  • 12x SmartRate ports (1G/2.5G/5G) with Class 6 PoE support
  • 4x 1G/10G SFP+ uplinks for high-speed connectivity
  • 1440W PoE budget and 76W operational power consumption
  • Supports IEEE 802.3af/at/bt PoE standards and TAA compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports multi-gigabit SmartRate ports, ideal for high-speed APs and IoT endpoints
  • High PoE budget and up to 60W per port make it suitable for demanding powered devices
  • Remanufactured version offers enterprise features at a reduced cost

Product Overview

The HP Aruba 6200M 36G 12SR5 CL6 4SFP+ Remanufactured Switch is engineered to deliver advanced wired networking capabilities for campus edge and branch environments. Offering 36 Class 6 PoE+ ports that support up to 60W per port and 12 SmartRate multi-gigabit ports (1G/2.5G/5G), this switch is designed to power modern devices such as access points, IP phones, and surveillance systems. 4x 1G/10G SFP+ uplinks enable high-speed data, ideal for bandwidth-heavy applications.

Powered by an ARM Cortex A72 processor, the switch supports Layer 3 routing protocols for enterprise-grade performance. Featuring RJ-45 and USB-C console ports, USB Type-A host port, and out-of-band management (OOBM), device setup and monitoring are simplified. With a 1440W total PoE capacity and an operational power consumption of 76W, it offers efficient energy use. Compliance with TAA standards and inclusion of a limited lifetime warranty make it a reliable choice for professional IT deployments.

Its compact form factor and removable implementation make it ideal for tight networking closets or rack-mounted installations, especially for organizations seeking a cost-effective, feature-rich switching solution.

Specifications

Product Overview
Product Type Managed Ethernet Switch
Form Factor 1U Rack-mountable
Total PoE Budget 1440W
Power Consumption (Operational) 76W
Maximum Power Consumption 76W
Processor Type ARM Cortex A72
Power Requirements 100V-120V / 200V-240V AC
Model Series Aruba CX 6200M
Product Condition Remanufactured

Cloud Management & Licensing
Management Interface Aruba Central Cloud, Web GUI, CLI, REST API
Stacking Features Virtual Stacking (VSF) supported
Licensing Requirements No additional license required for core features

Physical & Environmental
Dimensions (H x W x D) 1.73 x 17.42 x 15.11 in
Weight 13.25 lbs (6.01 kg)
Cooling Front-to-back airflow, fan-cooled
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise 48 dB (typical)

Interfaces
Total Ports 52
10/100/1000BASE-T PoE+ Ports 36
SmartRate Multi-Gigabit Ports 12 (1G/2.5G/5G)
SFP+ Uplink Ports 4x 1G/10G SFP+
Console Ports 1x RJ-45, 1x USB-C
Out-of-Band Management Port 1x RJ-45 OOBM
USB Host Ports 1x USB Type-A
PoE Standards Supported IEEE 802.3af, 802.3at, 802.3bt (up to 60W per port)
Data Link Protocols Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rates Up to 10 Gbps on uplinks
Switching Capacity 176 Gbps
MAC Address Table Size 32,000 entries
Packet Buffer Size 12 MB

Advanced Security Features
Access Control RADIUS, TACACS+, MAC authentication, 802.1X
Control Plane Security BPDU Guard, DHCP Snooping, IP Source Guard
Layer 2 Security Features Dynamic ARP Inspection, Port Security
DoS Protection Supported
ACL Support IPv4 and IPv6 ACLs

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL, CE, FCC, RoHS, WEEE
Warranty Limited Lifetime Warranty
