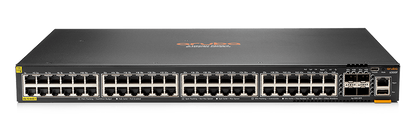

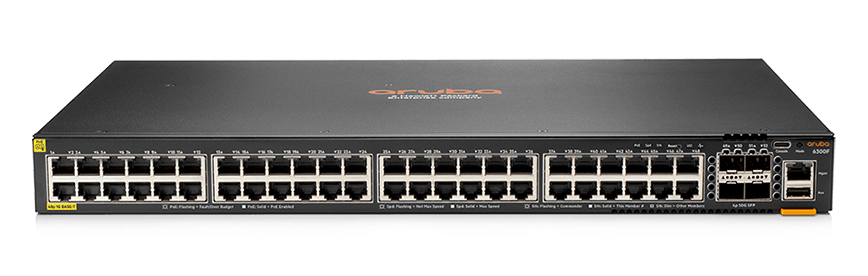

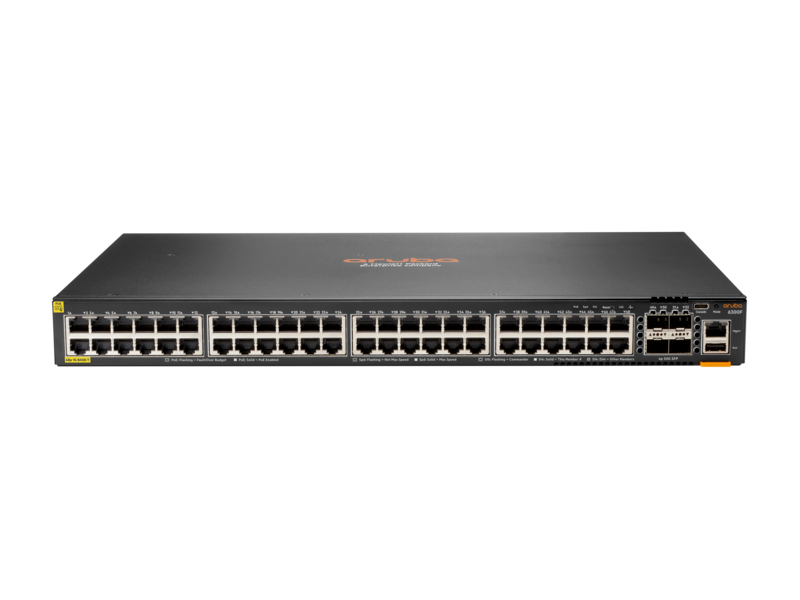

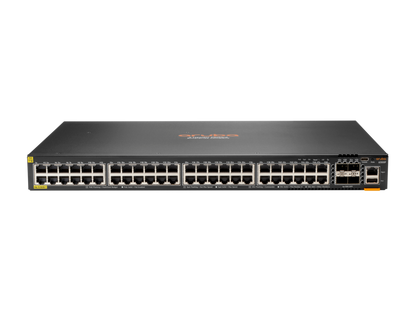

HP Aruba 6300F 48G CL4 PoE+ 4SFP56 Managed Switch

VENDOR: HP Mfg Part#: JL665A#ABA UPC#: 190017340296
1 4
Photo is for illustration purposes only. Actual product may be different.
$10,861.32
$10,861.32
Sale Sold out
MSRP: $13,719.00
Shipping calculated at checkout.
  • 48 10/100/1000 BASE-T PoE+ ports delivering up to 30W per port, total PoE budget up to 740W
  • 4x SFP56 uplink ports supporting 1/10/25/50Gbps speeds
  • Quad-core ARM Cortex A72 processor at 1.8GHz with 8GB DDR4 RAM
  • 32GB eMMC flash storage and 8MB shared packet buffer memory
  • Advanced Layer 3 routing and SNMP-based remote management
  • Compact form factor with 86W power consumption and TAA compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides enterprise-level PoE+ support with 48 ports delivering up to 30W each, ideal for dense device deployments
  • High-speed uplinks up to 50Gbps ensure scalable backbone and aggregation performance in high-demand networks
  • Built with robust internal components including ARM Cortex A72 CPU and 8GB DDR4 RAM, ensuring consistent and reliable operation

Product Overview

The HP Aruba 6300F 48G CL4 PoE+ 4SFP56 Managed Switch is an enterprise-grade solution from the Aruba CX 6300 Switch Series, designed to optimize network access in modern edge environments. It includes 48 10/100/1000BASE-T PoE+ ports, each delivering up to 30W, with a maximum PoE budget of 740W—ideal for providing power to IP devices. Four SFP56 uplinks support 1/10/25/50Gbps for scalable network connectivity. The switch also features advanced Layer 3 routing and remote SNMP management capabilities.

Harnessing a quad-core ARM Cortex A72 processor, supported by 8GB DDR4 RAM and 32GB flash memory, the device delivers reliable performance for demanding environments. Its 86W power consumption and compact 1RU design make it ideal for constrained installations. With operating temperatures ranging from 0°C to 45°C and TAA compliance, it is well-suited for commercial and government networks alike. Overall, the Aruba 6300F enables scalable, efficient, and highly available networking for modern IT infrastructures.

Specifications

Product Overview
Manufacturer HP
Product Name Aruba 6300F 48G CL4 PoE+ 4SFP56 Managed Switch
Manufacturer Part Number JL665A#ABA
UPC 190017340296
Series Aruba CX 6300 Switch Series
Product Type Managed Layer 3 Switch
Form Factor 1U Rack-mountable
Power Supply Type Internal Power Supply
Power Consumption (Typical) 86 W
Max PoE Power Budget 740 W
Voltage Required 100-120/200-240 VAC
Processor Type Quad-core ARM Cortex A72
Installed RAM 8 GB DDR4
Installed Flash Memory 32 GB
Switching Capacity 880 Gbps
Throughput 654 Mpps

Advanced Security Features
Access Control Lists (ACLs) Yes
MACsec Encryption Yes (802.1AE)
DHCP Snooping Yes
Dynamic ARP Protection Yes
Port Security Yes
802.1X Authentication Yes

Physical & Environmental
Width 1.73 in
Height 17.4 in
Depth 12.9 in
Weight 11.24 lbs.
Operating Temperature Range 0°C to 45°C
Storage Temperature Range -40°C to 70°C
Humidity (Operating) 15% to 95% non-condensing

Interfaces
Total Number of Ports 52
10/100/1000BASE-T PoE+ Ports 48
SFP56 Uplink Ports 4
Port Speeds 1/10/25/50 Gbps SFP56 uplinks
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Connectivity Technology Wired
Remote Management Protocol SNMP
Supported Interfaces (48) RJ-45 Auto-MDIX, (4) SFP56 slots

Cloud Management & Licensing
Cloud Management Platform Aruba Central
Command Line Interface (CLI) Yes
Web GUI Yes
API Support Yes (REST API)
Licensing Model Perpetual and subscription-based options
Zero-Touch Provisioning Yes

Compliance & Origin
TAA Compliant Yes
Country of Origin Singapore
Certifications FCC Class A, UL, cUL, CE, VCCI, BSMI, RCM, RoHS
Warranty & Support Limited Lifetime Warranty with next-business-day advanced replacement (see hpe.com/networking/warranty)
