HP Aruba 6300M 24G Class 4 PoE+ 4SFP56 Switch (JL662A)

VENDOR: HP Mfg Part#: JL662A UPC#: 190017339467
1 2

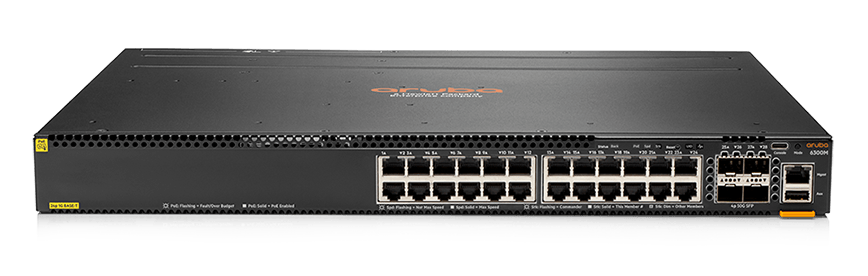

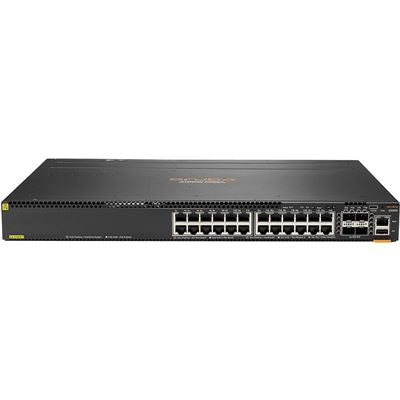

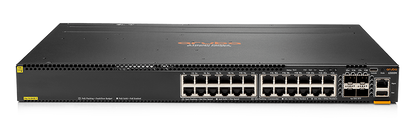

Photo is for illustration purposes only. Actual product may be different.
$6,894.91
$6,894.91
Sale Sold out
MSRP: $8,709.00
Shipping calculated at checkout.
  • 24x 10/100/1000 BASE-T PoE+ ports with up to 30W per port power delivery
  • 4x SFP ports supporting 1/10/25/50G uplinks for scalable backbone connectivity
  • Powered by a 1.8GHz quad-core ARM Cortex A72 processor with 8 GB RAM
  • 32 GB built-in eMMC flash memory for stable configuration storage
  • Supports Layer 3 advanced routing and SNMP-based remote management
  • 1U rackmount form factor with multi-voltage power supply support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enhanced performance with quad-core ARM CPU and 8 GB RAM ensures smooth enterprise network operations.
  • Full Class 4 PoE+ support on all access ports reduces the need for separate power infrastructure for edge devices.
  • High uplink flexibility with multi-rate SFP ports (up to 50G) allows for future-proof aggregation scaling.

Product Overview

The HP Aruba 6300M 24G Class 4 PoE+ Switch (JL662A) is part of the Aruba CX 6300 Series, designed to provide high performance and flexible network access. It offers 24x 10/100/1000BASE-T ports with full Class 4 PoE+ support—delivering up to 30W per port—ideal for powering IP devices. Additionally, the switch features 4x 1/10/25/50G SFP ports for high-speed uplinks, enabling scalable deployments within campus or branch networks.

Powered by a quad-core ARM Cortex A72 processor with 8 GB DDR4 RAM and 32 GB flash storage, it delivers efficient performance and reliable operation. Remote management via SNMP and Layer 3 advanced routing protocols ensure enterprise-ready integration. Its 1U rackmount format with multi-voltage power supply support offers deployment flexibility and energy efficiency for diverse environments.

The switch supports operational temperatures from 0°C to 45°C and maintains TAA compliance for government use. Designed for reliability and scalability, it enables secure and manageable connections for critical edge and aggregation use cases.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Series Aruba CX 6300 Series
Model JL662A
Form Factor 1U Rackmount
Processor Type Quad-core ARM Cortex A72
RAM 8 GB DDR4
Flash Memory 32 GB
Weight 11.02 lbs
Power Supply Type Redundant hot-swappable power supplies supported (JL670A PSU)
Typical Power Consumption 81 Watts
Maximum Power Consumption Up to 74 Watts base + PoE load
Power Requirements 100–240V AC, 50/60 Hz

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CB, CE, FCC Class A, RoHS
Green Compliance RoHS, WEEE
Warranty Limited Lifetime Warranty

Advanced Security Features
Access Control 802.1X, MAC authentication, Web-based authentication
Policy-Based Routing Yes
Dynamic Segmentation Yes
MACsec Encryption Supported on select uplinks
Storm Control Broadcast, Multicast, and Unknown Unicast
DHCP Snooping Yes
IP Source Guard Yes
Dynamic ARP Inspection Yes

Interfaces
Total Number of Ports 28
10/100/1000BASE-T RJ-45 Ports 24
SFP56 Uplink Ports 4
Port Speeds Supported 10/100/1000 Mbps (RJ-45), 1/10/25/50 Gbps (SFP56)
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, 10-Gigabit Ethernet, 25-Gigabit Ethernet, 50-Gigabit Ethernet
Forwarding Rate 261 Mpps
Switching Capacity 880 Gbps
Power Over Ethernet (PoE) Support Yes, Class 4 PoE+
PoE Budget Up to 1440W with dual 1600W power supplies

Physical & Environmental
Dimensions (W x D x H) 1.73 x 17.4 x 15.2 inches
Operating Temperature Range 0°C to 45°C
Storage Temperature Range -40°C to 70°C
Relative Humidity (Operating) 10% to 95% non-condensing
Acoustic Noise 45.7 dB(A) (at 25°C)
Altitude Up to 3,000 meters

Cloud Management & Licensing
Management Interface Web GUI, CLI, Aruba Central, SNMP
Cloud-Based Management Supported via Aruba Central
Licensing Model Optional cloud-based Aruba Central licenses
Included Management Local Web UI and CLI included
