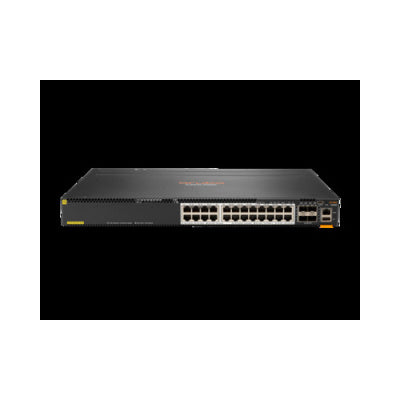

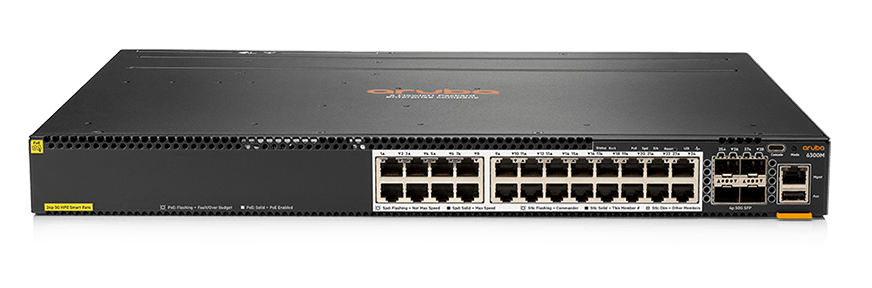

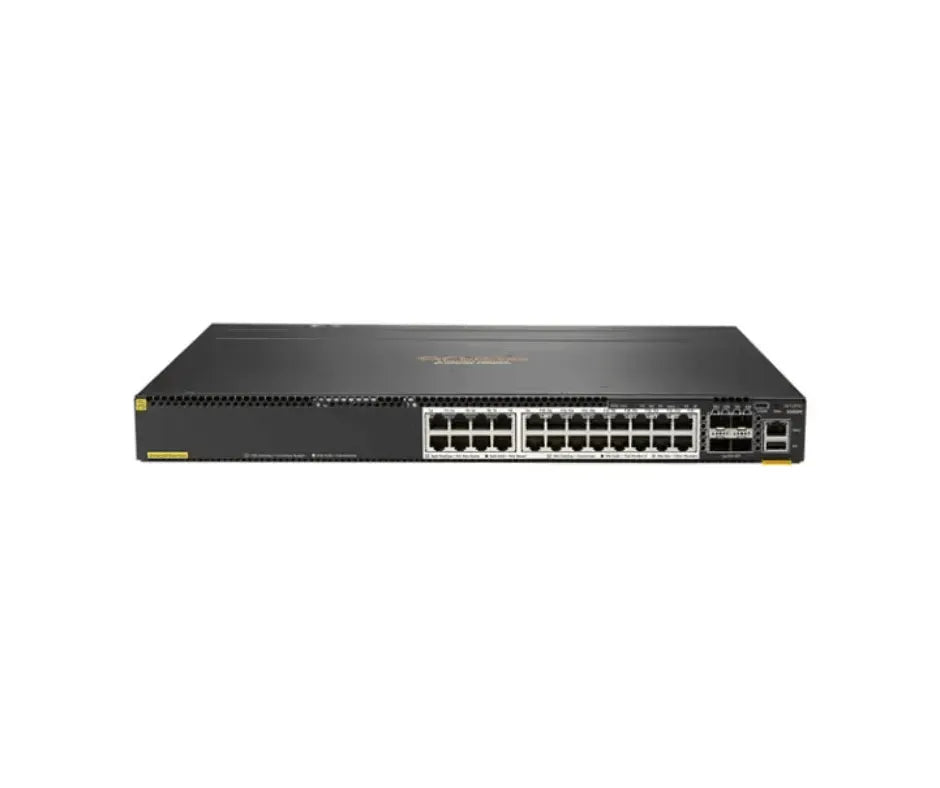

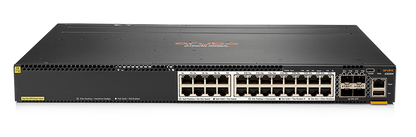

HP Aruba 6300M 24SR5 CL6 PoE 4SFP56 Switch JL660A

VENDOR: HP Mfg Part#: JL660A UPC#: 190017339429
1 5
Photo is for illustration purposes only. Actual product may be different.
$7,779.24
$7,779.24
Sale Sold out
MSRP: $16,529.00
Shipping calculated at checkout.
  • 24 x SmartRate 100M/1G/2.5G/5G BASE-T Class 6 PoE ports supporting up to 60W per port
  • 4 SFP ports supporting 1/10/25/50G bandwidth
  • ARM Cortex A72 quad-core processor with 8 GB DDR4 RAM and 32 GB flash
  • Layer 3 Advanced routing support: BGP, VRF, OSPF, EVPN, VXLAN
  • Robust security and timing: MACsec 256, PTP, AVB
  • Up to 1449W PoE support when used with JL670A PSU

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high PoE power delivery up to 60W per port, ideal for powering access points and IoT devices
  • Advanced Layer 3 support (BGP, VRF, VXLAN, etc.) enables scalable, enterprise-level network design
  • Stackable 1U design with multi-speed SFP ports ensures flexibility in dense campus and aggregation deployments

Product Overview

The HP Aruba 6300M 24SR5 CL6 PoE 4SFP56 Switch (JL660A) is a stackable Layer 3 switch engineered for enterprise-grade networking with 24 SmartRate Class 6 PoE ports offering up to 60W per port and 4 high-speed SFP ports for flexible 1/10/25/50G uplinks. Powered by a quad-core ARM Cortex A72 processor, this 1U switch features 8 GB RAM and 32 GB flash memory for high throughput. The device includes support for advanced Layer 3 routing protocols like BGP, OSPF, VRF, and VXLAN, along with secure and synchronized operations through MACsec 256, PTP, and AVB. Ideal for campus access and aggregation use cases, it delivers reliability, speed, and flexible scaling—all backed by TAA compliance and efficient power profiles.

Specifications

Product Overview
Product Type Stackable Layer 3 Switch
Model Aruba 6300M 24SR5 CL6 PoE 4SFP56
Manufacturer Part Number JL660A
Form Factor 1U
Processor Quad-core ARM Cortex A72
Installed Memory (RAM) 8 GB
Flash Memory 32 GB
Weight 11.94 lbs.
Power Consumption (Average) 139 Watt
Maximum Power Consumption 131 Watt
Power Supply Type External Power Supply (JL670A, JL086A, or JL087A PSU)
Power Requirements 100-240V AC, 50/60 Hz

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, IEC, FCC, VCCI, ICES, BSMI

Advanced Security Features
MACsec Encryption 256-bit MACsec
Access Control 802.1X, MAC-based, Web-based authentication
Routing Security VRF support, DHCP snooping, Dynamic ARP Protection
Segmentation & Tunneling VXLAN, VRF
Supported Layer 3 Protocols OSPF, BGP, RIP, PIM, VRF
Time Protocols PTP, NTP
Audio Video Bridging (AVB) Supported

Interfaces
Total Ports 28
SmartRate Ports 24 x 100M/1G/2.5G/5G BASE-T Class 6 PoE
SFP Ports 4 x SFP56 (1/10/25/50G capable)
Data Transfer Rate 1 Gbps (typical), 50 Gbps (max on uplinks)
PoE Support Yes, IEEE 802.3bt Class 6
PoE Budget Up to 1440W with JL670A PSU
Data Link Protocols Gigabit Ethernet, 10/25/50 Gigabit Ethernet

Physical & Environmental
Width 1.73 inches (44 mm)
Depth 17.4 inches (442 mm)
Height 15.2 inches (386 mm)
Minimum Operating Temperature 0 °C
Maximum Operating Temperature 45 °C
Minimum Storage Temperature -40 °C
Maximum Storage Temperature 70 °C

Cloud Management & Licensing
Cloud Management Platform Aruba Central (subscription required)
Management Interfaces Web GUI, CLI, REST API, SNMP
Remote Management Protocols SNMPv3, RMON, sFlow, REST
