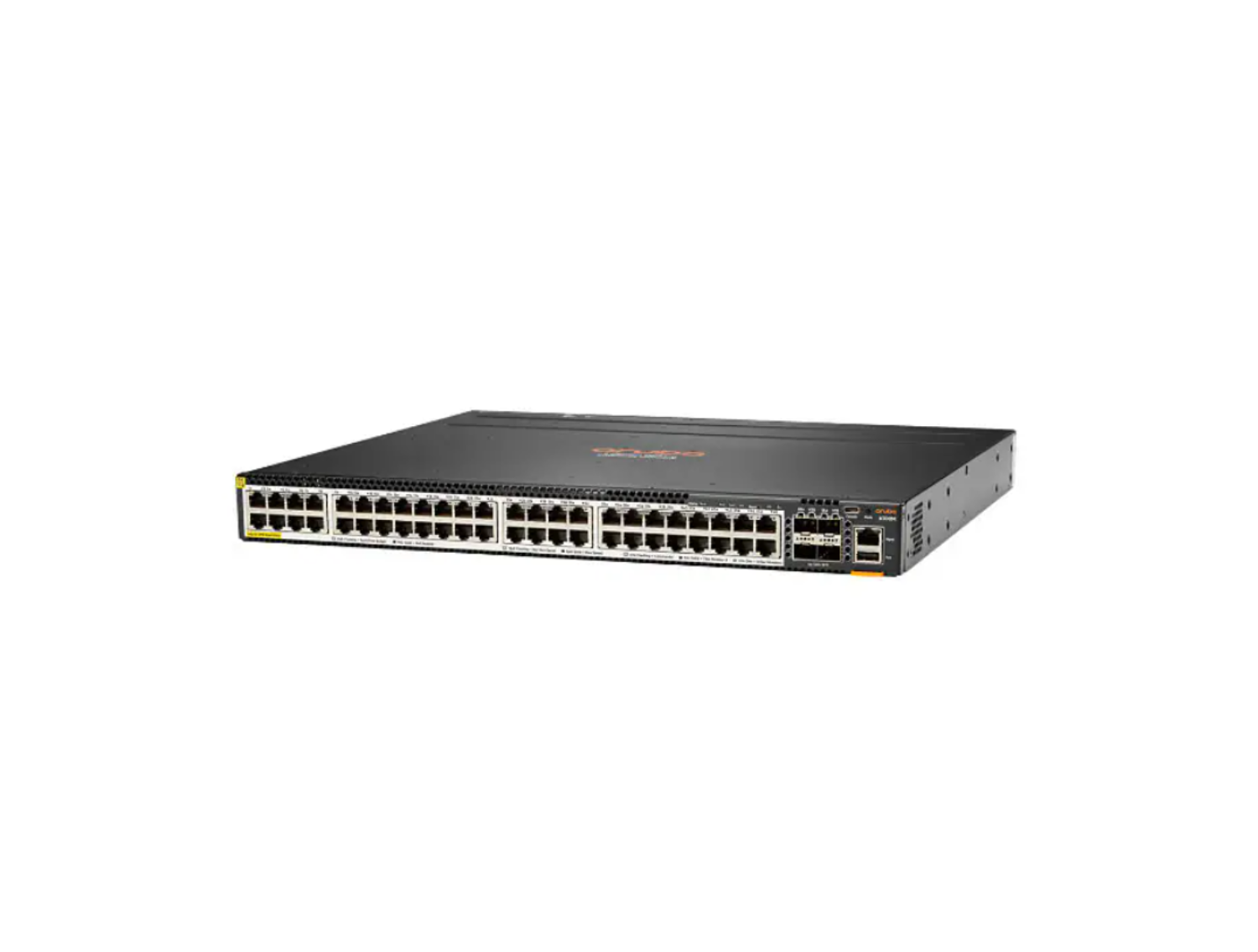

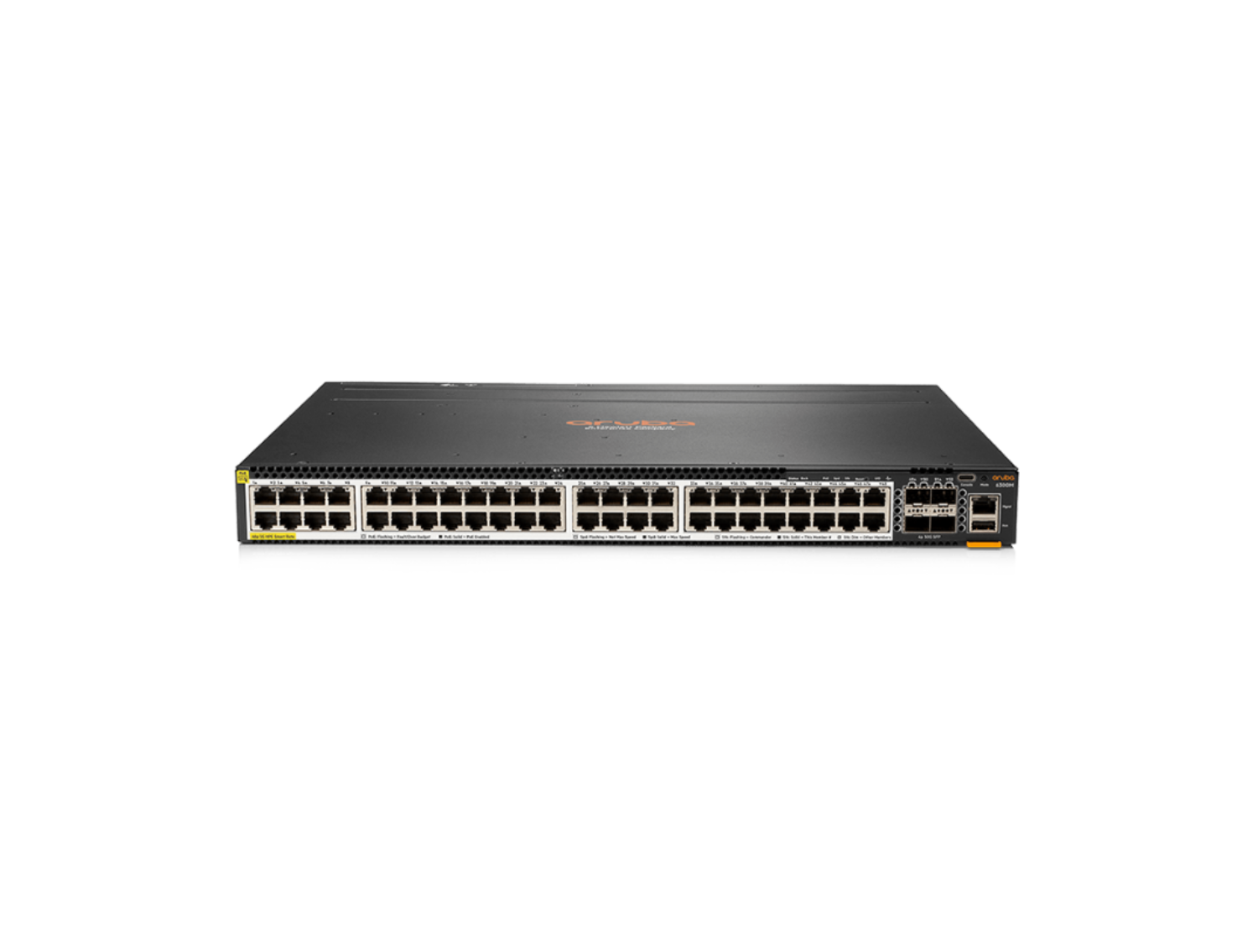

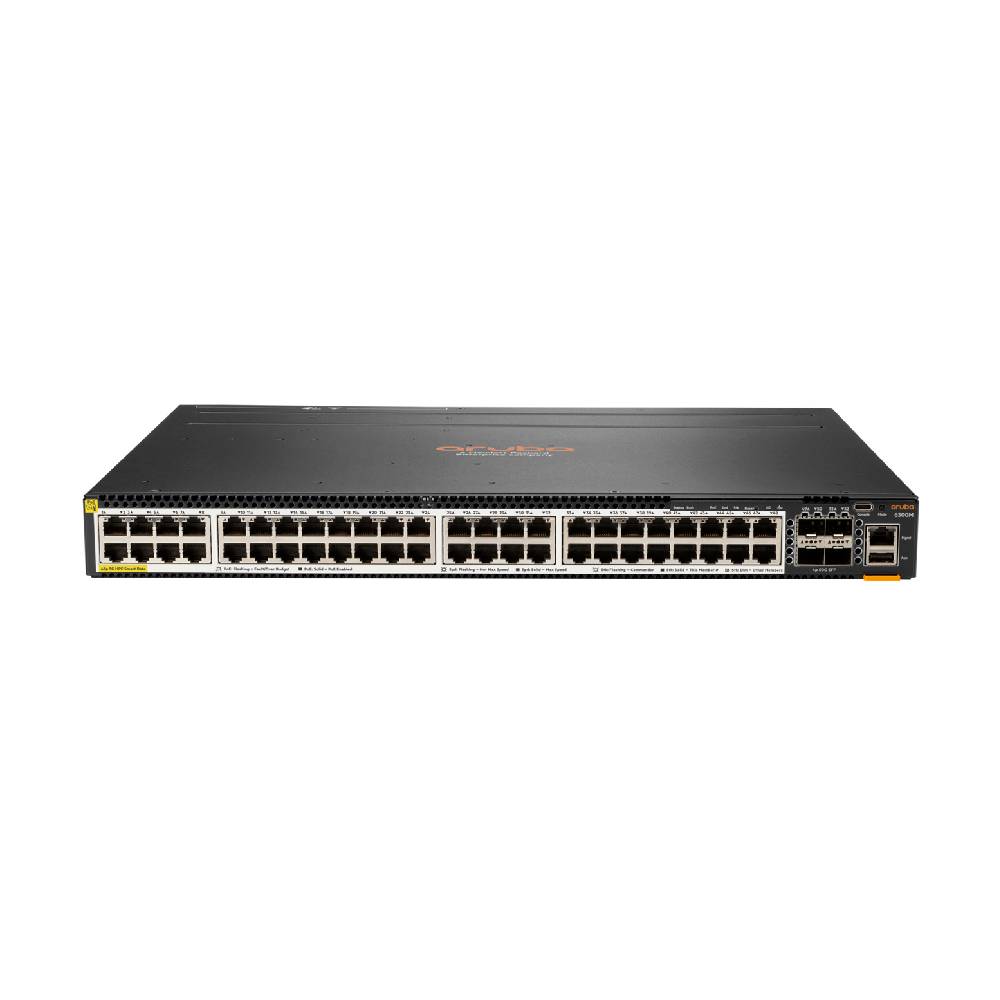

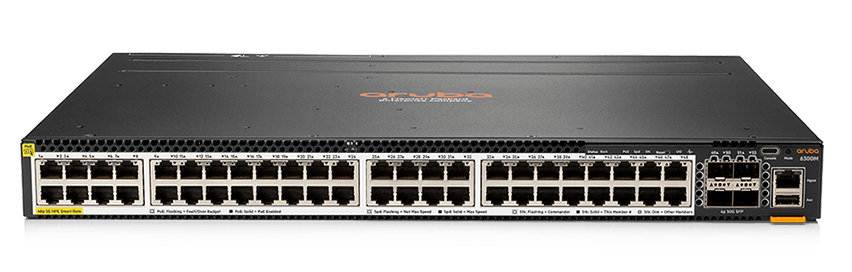

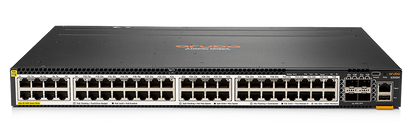

HP Aruba 6300M 48-Port Class 6 PoE Switch JL659A

VENDOR: HP Mfg Part#: JL659A UPC#: 190017339405
1 4
Photo is for illustration purposes only. Actual product may be different.
$15,025.66
$15,025.66
Sale Sold out
MSRP: $18,979.00
Shipping calculated at checkout.
  • 48 SmartRate 100M/1G/2.5G/5G BASE-T ports with Class 6 PoE, each supporting up to 60W
  • Four 1/10/25/50G SFP ports for high-speed uplinks
  • Layer 3 advanced routing with BGP, OSPF, EVPN, VXLAN, and VRF support
  • Built-in MACsec 256, PTP, AVB, and LRM for secure and synchronized networking
  • Quad-core ARM Cortex A72 processor with 8 GB DDR4 RAM and 32 GB flash storage
  • Stackable 1U design with operational power consumption of 201W and expandable PoE up to 2880W

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high-capacity PoE delivery (up to 2880W) for power-hungry edge devices and future-proof scalability
  • Enables high-speed uplinks and aggregation with four versatile SFP56 (1/10/25/50G) ports
  • Advanced Layer 3 features with robust encryption and timing protocols, ideal for modern secure enterprise environments

Product Overview

The HP Aruba 6300M 48SR5 CL6 PoE 4SFP56 Switch (JL659A) is a high-performance stackable Layer 3 switch designed to meet the growing demands of modern enterprise networks. Offering 48 SmartRate BASE-T ports with 100M/1G/2.5G/5G data rates and full Class 6 PoE (up to 60W per port), this switch can power a wide array of devices. Additionally, it features four SFP56 ports supporting 1/10/25/50G connections for flexible uplinks and network aggregation.

Powered by a quad-core ARM Cortex A72 processor, with 8 GB DDR4 RAM and 32 GB flash storage, it supports complex routing protocols including BGP, EVPN, VXLAN, and OSPF. Built-in MACsec 256 encryption, PTP, AVB, and LRM enhance security and network timing precision. With its compact 1U form factor, broad voltage compatibility, and versatile deployment options, the JL659A delivers exceptional value in performance-driven enterprise and campus environments.

Specifications

Product Overview
Product Type Stackable Layer 3 Switch
Model Aruba CX 6300M 48SR5 CL6 PoE 4SFP56 (JL659A)
Form Factor 1U
Processor Type Quad-core ARM Cortex A72
RAM 8 GB DDR4
Flash Memory 32 GB
Weight 13.27 lbs.
Power Requirements 110-120/208-240 VAC (JL670A PSU), 100-240V AC (JL086A and JL087A PSU)
Max Power Consumption 2880W with dual 1600W PSUs
Typical Power Consumption 201W

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, FCC Class A, CE, RoHS

Advanced Security Features
Encryption Support MACsec 256-bit
Segmentation Virtual Routing and Forwarding (VRF)
Routing Security OSPF, BGP with route maps
Timing Protocols Precision Time Protocol (PTP), AVB
Network Virtualization EVPN, VXLAN

Interfaces
Total Ports 52
Base-T Ports 48 x SmartRate 100M/1G/2.5G/5G BASE-T PoE++ Class 6
SFP Ports 4 x SFP56 (1/10/25/50G)
Data Link Protocols Gigabit Ethernet, Fast Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet
Port Speeds (BASE-T) 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps
PoE Support Yes, Class 6 (up to 60W per port)
PoE Budget Up to 2880W with dual 1600W PSUs

Physical & Environmental
Width 17.4 inches
Height 1.73 inches
Depth 15.2 inches
Operating Temperature Range 0°C to 45°C
Storage Temperature Range -40°C to 70°C
Humidity (Operating) 10% to 95% non-condensing

Cloud Management & Licensing
Management Interface Aruba AOS-CX with web GUI, CLI, and REST API
Remote Management Protocols SNMP, Telnet, SSH, HTTP, HTTPS
Cloud Management Supported via Aruba Central (subscription required)
Included Licensing Software included; advanced cloud license sold separately
