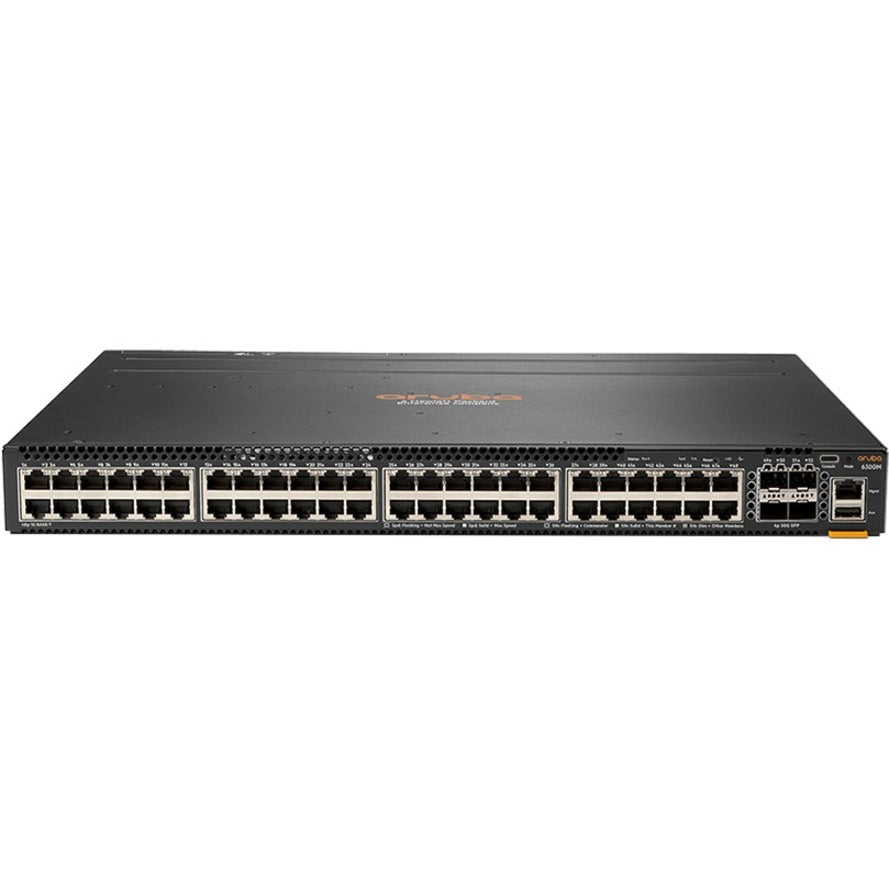

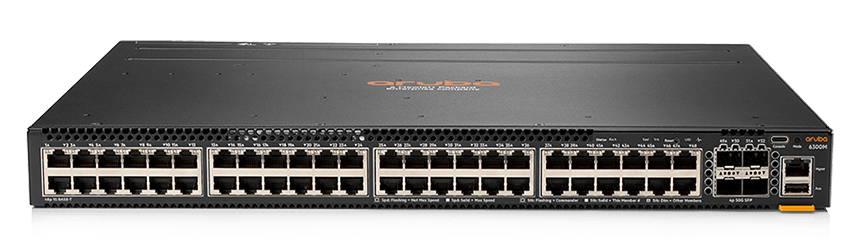

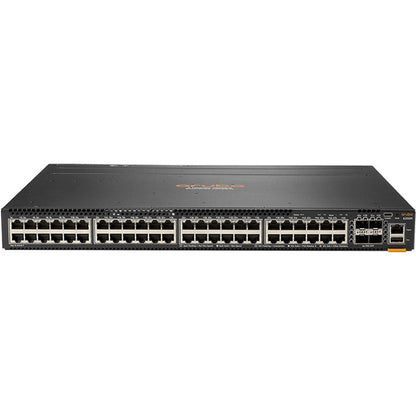

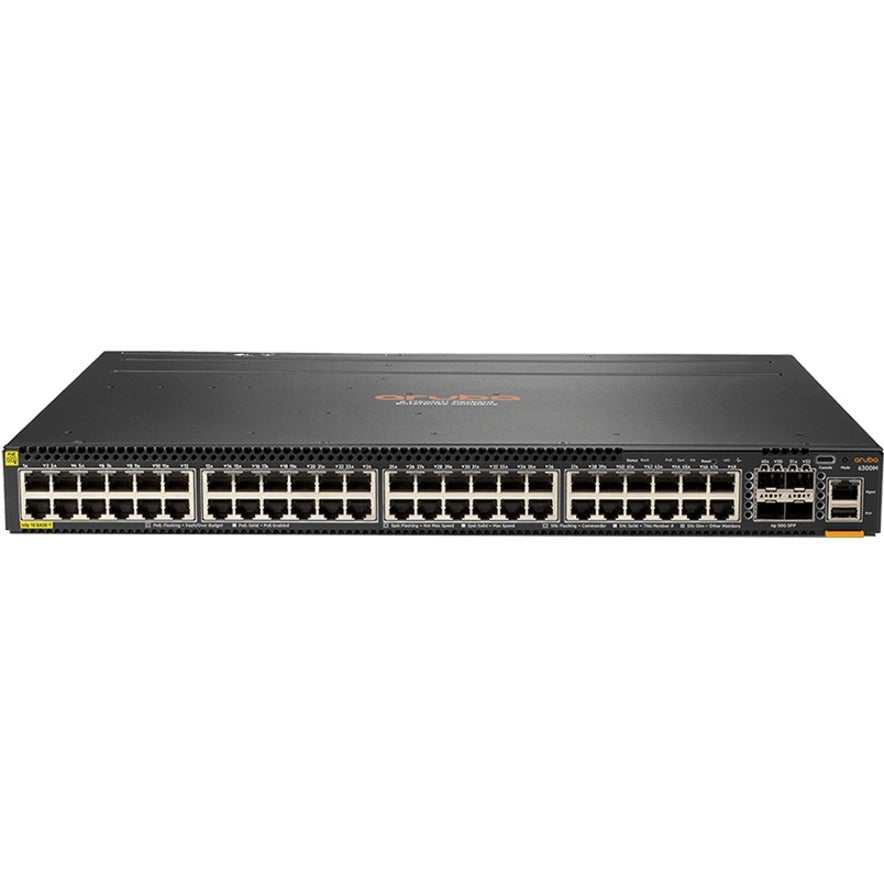

HP Aruba 6300M 48G 4SFP56 Managed Layer 3 Switch, JL663A

VENDOR: HP Mfg Part#: JL663A UPC#: 190017339481
1 4
Photo is for illustration purposes only. Actual product may be different.
$9,309.59
$9,309.59
Sale Sold out
MSRP: $11,759.00
Shipping calculated at checkout.
  • 48x 10/100/1000BASE-T ports and 4x SFP56 ports (1/10/25/50Gbps)
  • Layer 3 routing capabilities with SNMP management support
  • Powered by Quad-Core ARM Cortex A72 1.8GHz processor with 8GB DDR4
  • 32GB eMMC storage and 8MB shared packet buffer memory
  • Rack-mountable 1U design with 75W max power consumption
  • Operating temperature range: 0°C to 45°C; TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-grade flexibility with 52 total ports, including multi-gigabit SFP56 uplinks for scalable high-speed connectivity.
  • Advanced performance with a quad-core architecture and generous memory, enhancing network responsiveness and traffic handling.
  • Energy-efficient and standards-compliant, with TAA certification and low power usage, ideal for public sector and enterprise environments.

Product Overview

The HP Aruba 6300M 48G 4SFP56 Switch (model JL663A) is a next-generation enterprise access switch engineered for high-speed connectivity and flexible deployment. This rack-mountable, 1U device supports a total of 52 ports—48 10/100/1000BASE-T Ethernet ports and 4 multi-gigabit SFP56 uplink ports operating at speeds of 1/10/25/50Gbps. Its advanced architecture is powered by a Quad-Core ARM Cortex A72 processor with 8GB of DDR4 memory and 32GB of eMMC storage, enabling seamless packet processing and system responsiveness even under demanding tasks.

With Layer 3 routing support and SNMP management, this switch allows efficient network segmentation and traffic prioritization. The 8MB shared packet buffer enhances performance during peak loads. Capable of operating in temperature ranges from 0°C to 45°C and storing from -40°C to 70°C, it’s built for both resilience and reliability.

Drawing a maximum of 75 watts and compatible with 100–240 VAC input, the Aruba 6300M is also TAA-compliant, making it ideal for government or enterprise networks demanding high standards in performance and security.

Specifications

Product Overview
Device Type Managed Layer 3 Switch
Model HP Aruba 6300M 48G 4SFP56
Manufacturer Part Number JL663A
Form Factor 1U Rack-mountable
Processor Quad-Core ARM Cortex A72 @ 1.8 GHz
Total RAM 8 GB DDR4
Flash Memory 32 GB eMMC
Shared Packet Buffer Memory 8 MB
Power Type Internal Power Supply
Max Power Consumption 75 Watts
Power Requirements 100–240 VAC
Weight 10.14 lbs (4.6 kg)

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, cUL, CB, FCC Class A, EN 55032 Class A, VCCI, RoHS
Green Compliant Yes
MTBF 720,000 hours

Advanced Security Features
Access Control 802.1X, MAC authentication, Web authentication
Network Security RADIUS, TACACS+, DHCP snooping, Dynamic ARP Protection
Traffic Filtering Layer 2–4 Access Control Lists (ACLs)
Secure Management HTTPS, SSH, SNMPv3
MACsec Encryption Supported on selected uplink ports

Interfaces
Total Ports 52
10/100/1000BASE-T Ports 48
SFP56 Uplink Ports 4
Uplink Port Speeds 1/10/25/50 Gbps
Data Link Protocol Gigabit Ethernet
Switching Capacity 760 Gbps
Forwarding Rate 565 Mpps

Physical & Environmental
Dimensions (H x W x D) 1.73 x 17.4 x 15.2 in (4.4 x 44.2 x 38.6 cm)
Operating Temperature Range 0°C to 45°C
Storage Temperature Range -40°C to 70°C
Operating Humidity Range 5% to 95% (non-condensing)
Acoustic Noise 46.9 dB (maximum)
Airflow Direction Front-to-back

Cloud Management & Licensing
Management Platform Aruba Central (cloud-managed), Aruba CX Mobile App
Management Interfaces Web GUI, CLI, SNMP v2/v3, REST API
Segmentation & Policies Aruba Dynamic Segmentation
Included Licensing Base Layer 3 features included; Advanced features require optional licenses
