HP Aruba 8360-12C 40Gbps 12-Port Switch JL709A#A1X

VENDOR: HP Mfg Part#: JL709A#A1X UPC#: 190017405780
1 1

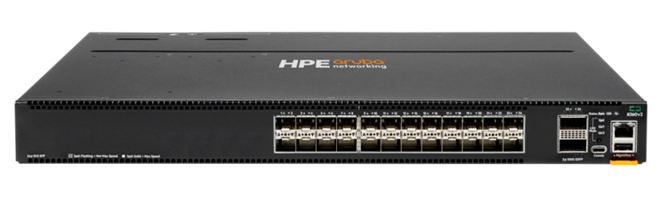

Photo is for illustration purposes only. Actual product may be different.
$28,513.05
$28,513.05
Sale Sold out
MSRP: $36,015.00
Shipping calculated at checkout.
  • 12-port 40 Gigabit Ethernet wired switch
  • Supports up to 40GBps network throughput
  • Includes 16GB and 32GB memory options
  • TAA compliant for regulatory deployment
  • Manufactured in Singapore under strict standards

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-performance 40GbE bandwidth ideal for enterprise and data center environments.
  • Offers TAA compliance, making it suitable for government and regulated industry use cases.
  • Manufactured in Singapore, indicating high production standards and product reliability.

Product Overview

The HP Aruba 8360-12C (JL709A#A1X) is engineered for demanding enterprise networks requiring high data throughput and low latency. Featuring 12 high-speed 40 Gigabit Ethernet ports, this wired switch delivers up to 40GBps of bandwidth, ideal for backbone aggregation. The model supports 16GB and 32GB memory configurations, providing performance headroom for advanced networking tasks.

With TAA compliance, the Aruba 8360-12C is suitable for government-regulated environments. Its manufacture in Singapore ensures quality fabrication standards. Integrated into Aruba’s networking ecosystem, it supports advanced manageability and reliability, making it a future-ready solution for growing business needs.

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Form Factor 1U Rack-mountable
Power Requirements 100 to 240 VAC, 50/60 Hz
Redundant Power Supply Support Yes
Power Consumption (Typical) 146 Watts
Cooling Front-to-back airflow with variable-speed fans
Weight 11.02 lbs (5 kg)

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications FCC Class A, CE, VCCI, BSMI, RCM, UL, CSA, CB
RoHS Compliant Yes
WEEE Compliance Yes
REACH Compliance Yes

Advanced Security Features
Access Control 802.1X, MAC authentication, Web-based authentication
ACL Support Yes, IPv4 and IPv6 access control lists
Dynamic Segmentation Yes
Secure Management Access HTTPS, SSH, SNMPv3
Traffic Storm Control Yes
Port Security Yes
DHCP Protection Yes
IP Source Guard Yes
MACsec Encryption Support Yes (on supported modules)

Interfaces
Total Number of Ports 12
Port Type QSFP+ (40GbE)
Uplink Ports 12 x 40GbE QSFP+
Data Transfer Rate 40 Gbps per port
Switching Capacity 960 Gbps
Forwarding Rate 714 Mpps
Auto MDI/MDI-X Yes
Packet Buffer Size 32 MB

Physical & Environmental
Dimensions (H x W x D) 1.73 x 17.44 x 20.1 in (4.4 x 44.3 x 51.1 cm)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Altitude Up to 10,000 ft (3,048 m)
MTBF 406,560 hours (46.4 years)

Cloud Management & Licensing
Management Interface Aruba Network Analytics Engine (NAE), Aruba NetEdit, Aruba Central (optional)
Remote Management Protocols SNMPv1/v2/v3, CLI, Web UI, REST API
Cloud-Managed Optional (via Aruba Central)
License Requirement Advanced features may require ArubaOS-CX license
Automation and Orchestration Supported with Aruba Central and NetEdit
