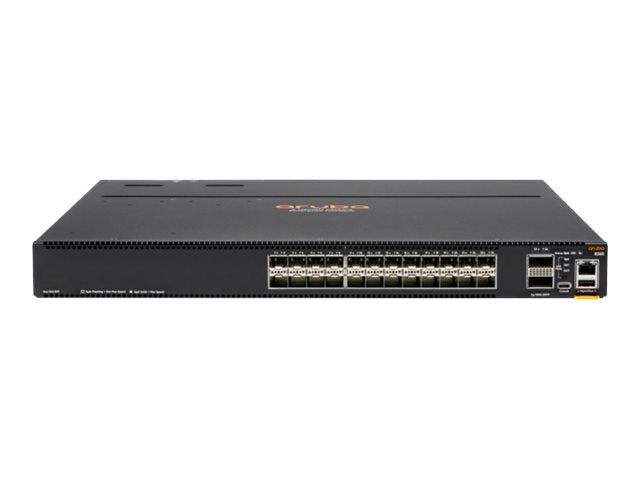

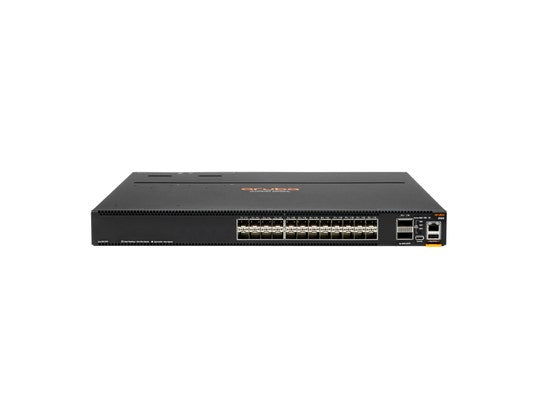

HP Aruba 8360-24XF2C 10GbE Switch, 26-Port, 16GB/32GB, JL711A#ACQ

VENDOR: HP Mfg Part#: JL711A#ACQ UPC#: 190017406367
1 3
Photo is for illustration purposes only. Actual product may be different.
$25,061.24
$25,061.24
Sale Sold out
MSRP: $31,655.00
Shipping calculated at checkout.
  • 26 ports with 10 Gigabit Ethernet support
  • 16GB of system memory for efficient data processing
  • 32GB of internal storage to support OS and config files
  • TAA compliant for government and regulated deployments
  • Made in Singapore, reflecting high manufacturing standards

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for enterprise-grade high-performance switching with 10 GbE across 26 ports.
  • Robust memory configuration (16GB RAM, 32GB storage) enhances efficiency and supports large-scale deployments.
  • TAA compliance ensures suitability for government and defense sector installations.

Product Overview

The HP Aruba 8360-24XF2C 10GbE Switch, part number JL711A#ACQ, delivers 10 Gigabit Ethernet performance across 26 ports, engineered for high-bandwidth enterprise and data center deployments. With 16GB system memory and 32GB of internal storage, it provides excellent processing efficiency and supports advanced network configurations. This TAA-compliant unit is manufactured in Singapore, meeting stringent compliance standards. Designed for reliable, high-speed wired networking, the Aruba 8360 supports robust, scalable infrastructure for demanding IT environments.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Model Aruba 8360-24XF2C
Form Factor 1U rack-mountable
Power Supply Dual hot-swappable power supplies supported
System Memory 16 GB
Internal Storage 32 GB
Power Consumption (Typical) 60W (with 2x fan trays and 1x power supply)
Power Consumption (Maximum) 113W (with 2x fan trays and 2x power supplies)
AC Voltage 100–240 VAC
Frequency 50/60 Hz

Wireless Features

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CSA, CE, VCCI, BSMI, EAC
Electromagnetic Compliance FCC Class A, EN55032 Class A
RoHS Compliance Yes

Advanced Security Features
Access Control Lists (ACLs) Layer 2 - Layer 4 ACLs
Dynamic Segmentation Supported with Aruba ClearPass integration
MACsec Encryption Yes
Secure Boot Yes
DHCP Snooping Yes
IP Source Guard Yes
Port Security Yes

Interfaces
Total Ports 26
10G SFP+ Ports 24
Dual-Speed Mgmt Ports 1 (RJ-45 or USB-C console)
Out-of-Band Management Port 1 (RJ-45)
Management Console Port 1 x micro-USB (Type-B)
Module Slots 2 (Expansion module bays)
Uplink Ports 2 x 40G QSFP+ (independent or break-out supported to 4x10G)
Switching Capacity 1.2 Tbps
Forwarding Rate 714 Mpps

Physical & Environmental
Dimensions (W x D x H) 43.97 x 45.67 x 4.36 cm (17.32 x 17.98 x 1.72 in)
Unit Weight 7.52 kg (16.58 lb)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise 63.5 dB
Cooling Front-to-back and back-to-front airflow supported via fan trays

Cloud Management & Licensing
Management Interface Aruba AOS-CX, Web GUI, CLI via SSH or console
Cloud Management Supported via Aruba Central
License Included No (Software licenses sold separately)
Supported Management Protocols SNMPv2/v3, sFlow, Netconf/REST APIs
Stacking Technique Virtual Switching Extension (VSX)
